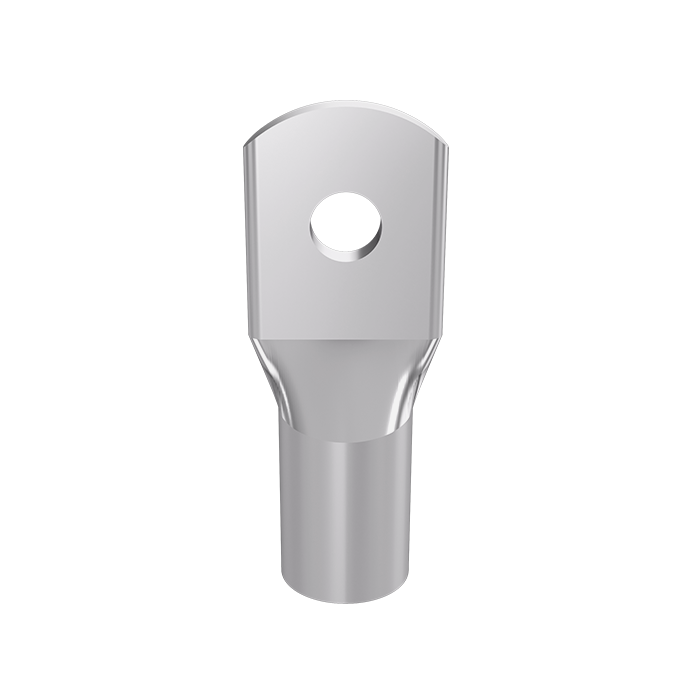

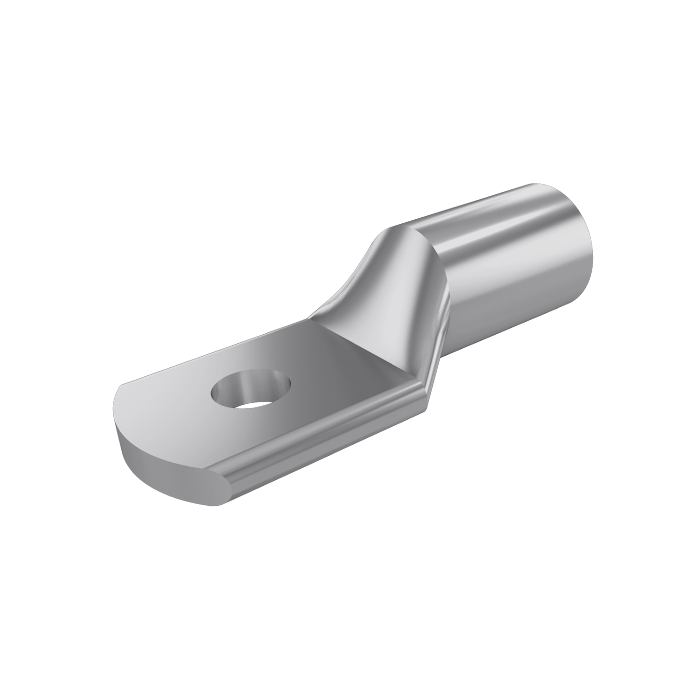

Aluminium Tube Crimping Lugs One Hole
High-quality Aluminium Tube Crimping Lugs – One Hole designed for secure cable termination in electrical and power distribution systems. Manufactured from premium-grade aluminium, these lugs provide excellent electrical conductivity, corrosion resistance, and long-lasting performance for industrial and commercial applications.
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Natural Finish |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| ZAT-151 | 2.5 | 3.2 | 2 | 6.6 | 7 | 8 | 18 |
| ZAT-309 | 2.5 | 3.7 | 2.6 | 7 | 7 | 8 | 18 |
| ZAT-155 | 4 | 4.2 | 2.9 | 7.2 | 7 | 8 | 18 |
| ZAT-317 | 4 | 5.2 | 2.9 | 12 | 7 | 13 | 24 |
| ZAT-158 | 6 | 5.2 | 3.5 | 7.5 | 7 | 13 | 24 |
| ZAT-313 | 6 | 6.5 | 3.5 | 12 | 7 | 13 | 24 |
| ZAT-159 | 10 | 4.2 | 3.8 | 8.4 | 9 | 17 | 28 |
| ZAT-214 | 10 | 6.4 | 4.4 | 9.7 | 9 | 17 | 30 |
| ZAT-215 | 10 | 8.2 | 4.4 | 15 | 9 | 17 | 30 |
| ZAT-252 | 16 | 6.4 | 5.4 | 11.4 | 13 | 20 | 37 |
| ZAT-216 | 16 | 8.2 | 5.4 | 11.4 | 13 | 20 | 37 |
| ZAT-217 | 16 | 10.2 | 5.4 | 18 | 13 | 20 | 37 |
| ZAT-253 | 25 | 6.4 | 7 | 13.7 | 16 | 21 | 44 |
| ZAT-218 | 25 | 8.2 | 7 | 13.7 | 16 | 21 | 44 |
| ZAT-219 | 25 | 10.2 | 7 | 20 | 16 | 21 | 44 |
| ZAT-220 | 25 | 12.7 | 7 | 20 | 16 | 21 | 44 |
| ZAT-254 | 35 | 6.4 | 8 | 15.4 | 18 | 22 | 47 |
| ZAT-221 | 35 | 8.2 | 8 | 15.4 | 18 | 22 | 47 |
| ZAT-222 | 35 | 10.2 | 8 | 20 | 18 | 22 | 47 |
| ZAT-255 | 50 | 8.2 | 9.3 | 18.3 | 22 | 24 | 54 |
| ZAT-312 | 50 | 10.2 | 9.3 | 23 | 22 | 24 | 54 |
| ZAT-224 | 50 | 12.7 | 9.3 | 23 | 22 | 24 | 54 |
| ZAT-256 | 70 | 8.2 | 11.6 | 22.6 | 26 | 26 | 60 |
| ZAT-225 | 70 | 10.2 | 11.6 | 22.6 | 26 | 26 | 60 |
| ZAT-226 | 70 | 12.7 | 11.6 | 22.6 | 26 | 26 | 60 |
| ZAT-227 | 95 | 10.2 | 12.9 | 24.5 | 28 | 28 | 64 |
| ZAT-228 | 95 | 12.7 | 12.9 | 24.5 | 28 | 28 | 64 |
| ZAT-229 | 95 | 16.2 | 12.9 | 24.5 | 28 | 28 | 64 |
| ZAT-257 | 120 | 10.2 | 15 | 28.2 | 32 | 30 | 73 |
| ZAT-230 | 120 | 12.7 | 15 | 28.2 | 32 | 30 | 73 |
| ZAT-231 | 120 | 16.2 | 15 | 28.2 | 32 | 30 | 73 |
| ZAT-258 | 150 | 10.2 | 16.5 | 30.9 | 34 | 34 | 79 |
| ZAT-232 | 150 | 12.7 | 16.5 | 30.9 | 34 | 34 | 79 |
| ZAT-233 | 150 | 16.2 | 16.5 | 30.9 | 34 | 34 | 79 |
| ZAT-311 | 185 | 10.2 | 18.6 | 34.6 | 36 | 36 | 84 |
| ZAT-234 | 185 | 12.7 | 18.6 | 34.6 | 36 | 36 | 84 |
| ZAT-235 | 185 | 16.2 | 18.6 | 34.6 | 36 | 36 | 84 |
| ZAT-320 | 225 | 12.7 | 21 | 39 | 40 | 40 | 94 |
| ZAT-236 | 240 | 12.7 | 22 | 40 | 44 | 44 | 102 |
| ZAT-237 | 240 | 16.2 | 22 | 40 | 44 | 44 | 102 |
| ZAT-300 | 300 | 16.2 | 24 | 45.7 | 47 | 54 | 115 |
| ZAT-259 | 300 | 20.3 | 24 | 45.7 | 47 | 54 | 115 |
| ZAT-260 | 400 | 20.3 | 28 | 51 | 56 | 62 | 130 |
| ZAT-296 | 500 | 20.3 | 31 | 58.7 | 60 | 66 | 140 |
| ZAT-261 | 625 | 20.3 | 36 | 66.6 | 69 | 70 | 154 |
| ZAT-318 | 800 | —— | 39 | 73.3 | 77 | 78 | 180 |
| ZAT-319 | 1000 | —— | 43.5 | 81.9 | 100 | 90 | 220 |
