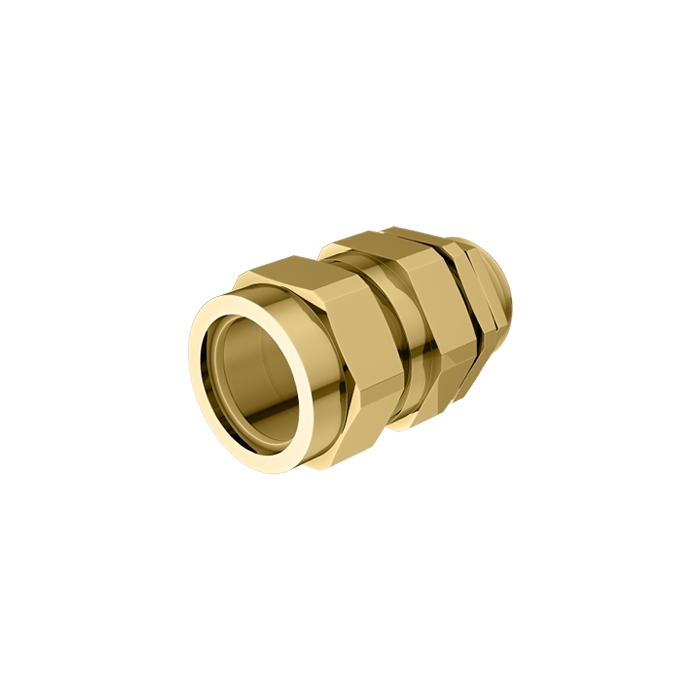

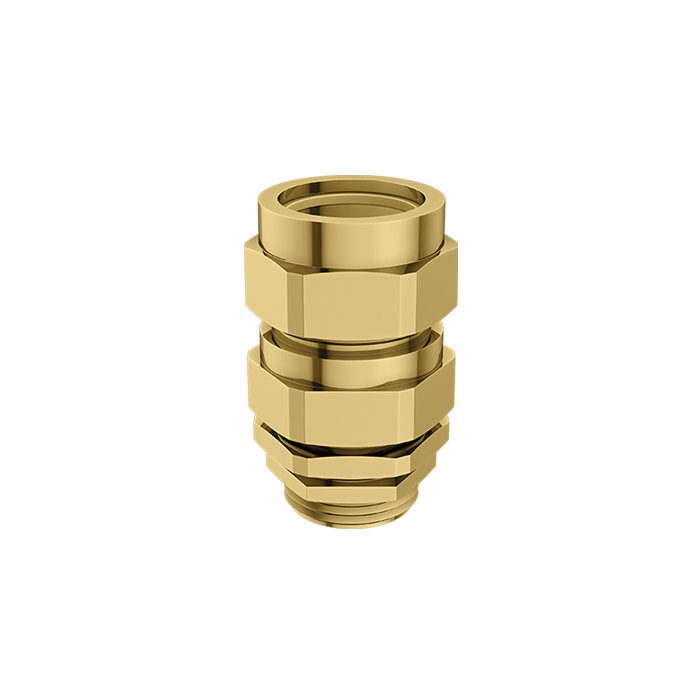

Double Compression For Unarmoured Cable Gland
Unarmoured Double Compression cable gland designed specifically for unarmoured and braided cables. Featuring a dual-compression sealing system, it provides superior cable retention, excellent strain relief, and reliable protection against dust, moisture, and harsh environmental conditions. Ideal for control panels, junction boxes, machinery, industrial enclosures, marine, infrastructure, and energy applications.
Become a DISTRIBUTORS
| Material | Brass |
|---|---|

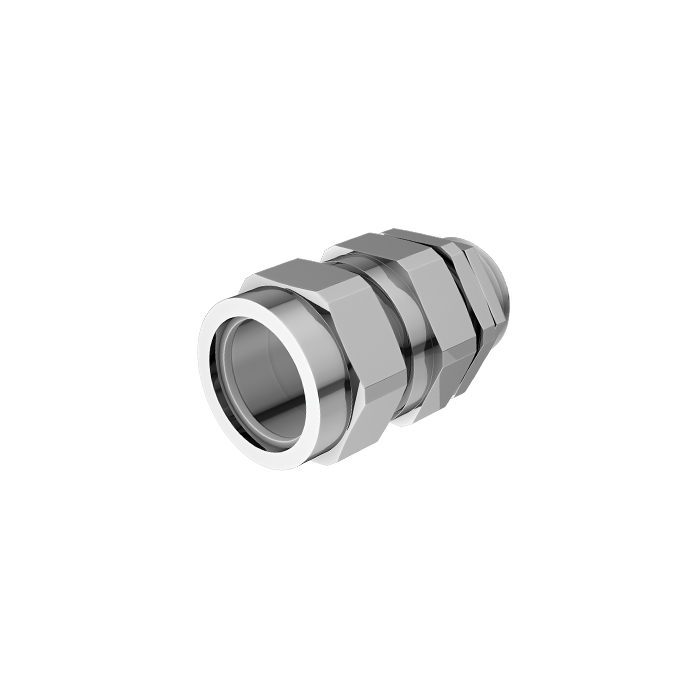

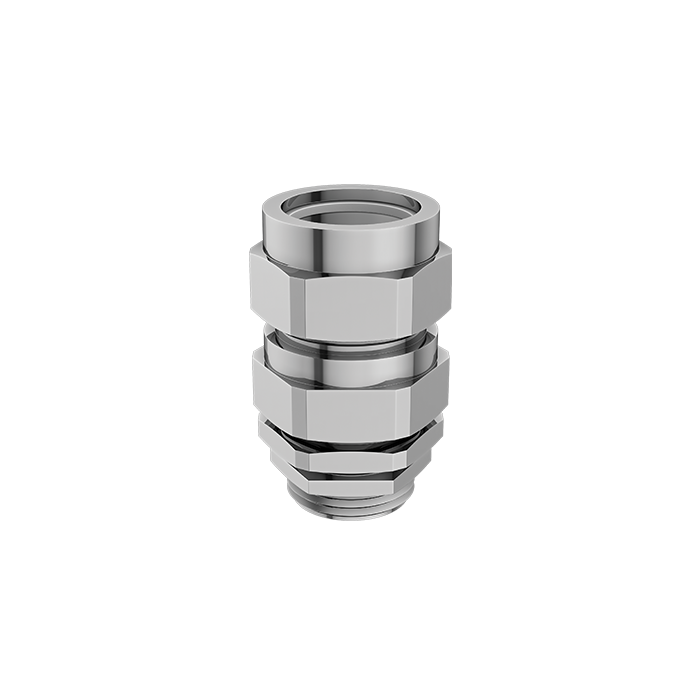

| Finish | Brass / Nickel |
| Type of Cable | Armoured & Unarmoured |
Technical Specifications
| BARCO CAT. NO. | ‘B’ | ‘A’ | A/F ‘E’ | A/C ‘E-1’ | NIPPLE THREAD ‘C’ | ‘D’ | ABOVE | UPTO |
|---|---|---|---|---|---|---|---|---|
| ZUDC-001SS | 11 | – | 22 | 25 | 3/4″ | 12 | 5 | 10 |
| ZUDC-001S | 14 | 14 | 22 | 25 | 3/4″ | 12 | 10 | 13.5 |
| ZUDC-001 | 15 | 15 | 24 | 27.5 | 3/4″ | 12 | 11 | 14.5 |
| ZUDC-01L | 20 | 19 | 28 | 31 | 1″ | 15 | 14 | 18 |
| ZUDC-02 | 20.5 | 20.5 | 30 | 35 | 1″ | 15 | 18 | 20 |
| ZUDC-03SP | 23 | 23 | 32 | 36.5 | 28mm | 15 | 20 | 23 |
| ZUDC-04L | 28 | 27 | 37 | 43 | 1-1/4″ | 15 | 23 | 26 |
| ZUDC-05L | 31 | 31 | 41 | 47 | 1-1/2″ | 20 | 26 | 30 |
| ZUDC-06SP | 35 | 34 | 47 | 54 | 40mm | 20 | 30 | 33 |
| ZUDC-07SP | 39 | 37 | 52 | 59 | 42mm | 20 | 33 | 36 |
| ZUDC-08 | 43 | 43 | 55 | 63 | 2″ | 20 | 36 | 41 |
| ZUDC-09 | 47 | 45 | 57 | 66 | 2″ | 20 | 41 | 44 |
| ZUDC-010L | 54 | 54 | 67 | 77 | 2-1/2″ | 20 | 44 | 52 |
| ZUDC-011S | 56 | 56 | 70 | 81 | 2-1/2″ | 20 | 52 | 55 |
| ZUDC-011L | 61 | 60 | 80 | 92 | 70mm | 20 | 55 | 60 |
| ZUDC-012 | 68 | 67 | 84 | 97 | 3″ | 20 | 60 | 66 |
| ZUDC-013SL | 73 | 72 | 90 | 103 | 3-1/4″ | 20 | 66 | 72 |
| ZUDC-013 | 79 | 78 | 99 | 113 | 3-1/2″ | 20 | 72 | 78 |
| ZUDC-014 | 85 | 84 | 105 | 118 | 3-3/4″ | 20 | 78 | 83 |
| ZUDC-015 | 95 | 94 | 113 | 128 | 4″ | 20 | 83 | 93 |
| ZUDC-016 | 106 | 105 | 125 | 140 | 4-1/2″ | 20 | 93 | 104 |
