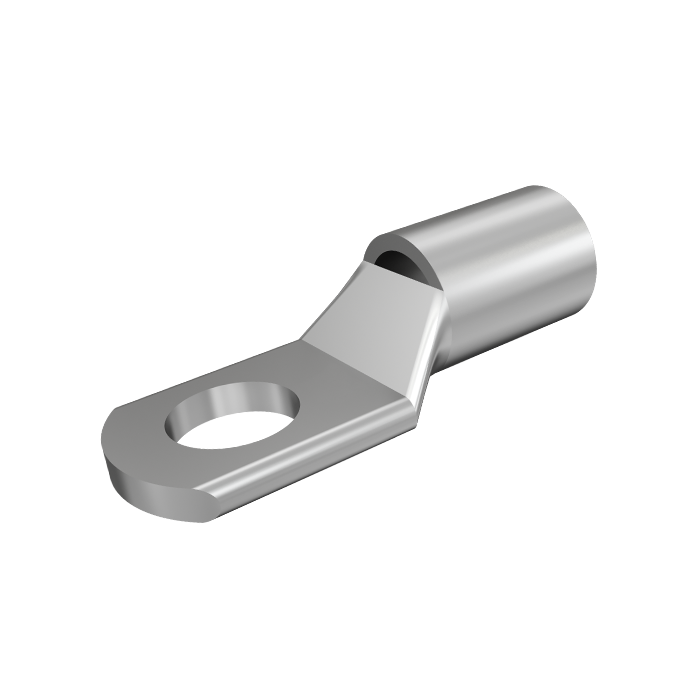

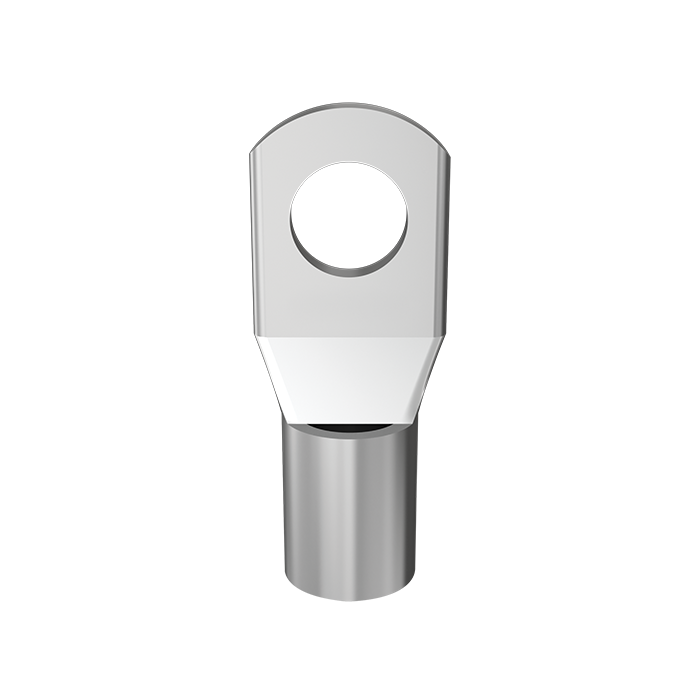

Copper Tube Crimping Lugs One Hole Standard Series With Inspection Window
High-quality copper lugs with an inspection window for secure cable termination, excellent conductivity, and reliable electrical performance in electrical panels, switchgear, control panels, and power distribution systems.
Become a DISTRIBUTORS
| Material | High Conductor Copper 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| ZCT-538 | 1.5 | 5.2 | 1.8 | 8.0 | 5 | 9 | 16 |
| ZCT-539 | 1.5 | 6.5 | 1.8 | 10.0 | 5 | 9 | 18 |
| ZCT-388 | 2.5 | 4.2 | 2.4 | 8.0 | 7 | 9 | 18 |
| ZCT-540 | 2.5 | 5.2 | 2.4 | 10.0 | 7 | 11 | 20 |
| ZCT-541 | 2.5 | 6.5 | 2.4 | 10.0 | 7 | 11 | 20 |
| ZCT-389 | 4.0 | 5.2 | 3.1 | 10.0 | 7 | 11 | 20 |
| ZCT-543 | 4.0 | 6.5 | 3.1 | 10.0 | 7 | 11 | 20 |
| ZCT-390 | 6.0 | 8.4 | 3.8 | 10.0 | 9 | 11 | 23 |
| ZCT-544 | 6.0 | 6.5 | 3.8 | 12.0 | 9 | 15 | 27 |
| ZCT-545 | 6.0 | 8.4 | 3.8 | 12.0 | 9 | 15 | 27 |
| ZCT-353 | 10 | 6.5 | 4.5 | 12.0 | 9 | 13 | 25 |
| ZCT-547 | 10 | 8.4 | 4.5 | 12.0 | 9 | 15 | 27 |
| ZCT-354 | 16 | 6.5 | 5.4 | 12.0 | 12 | 14 | 30 |
| ZCT-549 | 16 | 8.4 | 5.4 | 12.0 | 12 | 14 | 32 |
| ZCT-355 | 25 | 6.5 | 6.8 | 13.0 | 12 | 14 | 30 |
| ZCT-551 | 25 | 8.4 | 6.8 | 16.0 | 12 | 21 | 37 |
| ZCT-2510 | 25 | 10.5 | 6.8 | 18.0 | 12 | 21 | 37 |
| ZCT-542 | 35 | 6.5 | 8.2 | 15.3 | 12 | 18 | 35 |
| ZCT-356 | 35 | 8.4 | 8.2 | 15.3 | 12 | 18 | 35 |
| ZCT-554 | 35 | 10.5 | 8.2 | 18.0 | 12 | 21 | 38 |
| ZCT-357 | 50 | 8.4 | 9.5 | 17.8 | 16 | 21 | 43 |
| ZCT-556 | 50 | 10.5 | 9.5 | 17.8 | 16 | 21 | 43 |
| ZCT-557 | 70 | 8.4 | 11.2 | 21.0 | 18 | 25 | 50 |
| ZCT-358 | 70 | 10.5 | 11.2 | 21.0 | 18 | 25 | 50 |
| ZCT-559 | 70 | 13.0 | 11.2 | 21.0 | 18 | 25 | 50 |
| ZCT-359 | 95 | 10.5 | 13.5 | 25.0 | 20 | 26 | 55 |
| ZCT-560 | 95 | 13.0 | 13.5 | 25.0 | 20 | 26 | 55 |
| ZCT-241 | 120 | 13.0 | 15.0 | 28.0 | 22 | 28 | 60 |
| ZCT-546 | 120 | 17.0 | 15.0 | 28.0 | 22 | 32 | 64 |
| ZCT-242 | 150 | 13.0 | 16.5 | 30.0 | 26 | 32 | 69 |
| ZCT-564 | 150 | 17.0 | 16.5 | 30.6 | 26 | 32 | 69 |
| ZCT-243 | 185 | 17.0 | 18.5 | 34.0 | 32 | 34 | 78 |
| ZCT-244 | 240 | 17.0 | 21.0 | 38.0 | 38 | 40 | 92 |
| ZCT-567 | 240 | 21.0 | 21.0 | 38.0 | 38 | 40 | 92 |
| ZCT-245 | 300 | 17.0 | 23.5 | 43.0 | 42 | 44 | 101 |
| ZCT-569 | 300 | 21.0 | 23.5 | 43.0 | 42 | 44 | 101 |
| ZCT-246 | 400 | 17 | 26.8 | 50.1 | 44 | 52 | 114 |
| ZCT-571 | 400 | 21 | 26.8 | 50.1 | 44 | 52 | 114 |
| ZCT-247 | 500 | 21 | 30.0 | 56.0 | 48 | 56 | 124 |
| ZCT-573 | 550 | 21 | 3.17 | 59.5 | 52 | 60 | 132 |
| ZCT-248 | 630 | 21 | 35.0 | 65.0 | 56 | 66 | 144 |
| ZCT-599 | 800 | – | 39.0 | 73.0 | 78 | 75 | 170 |
| ZCT-590 | 1000 | – | 43.0 | 81.0 | 90 | 90 | 200 |
