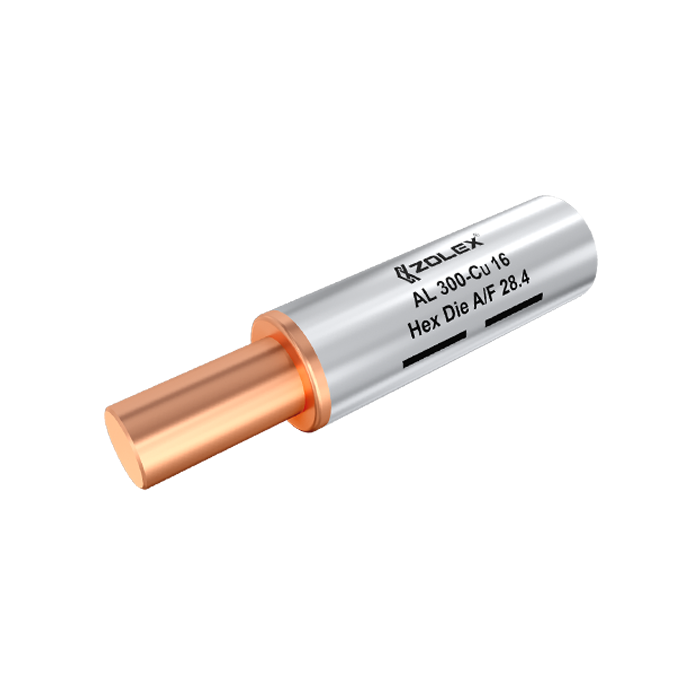

Bimetallic Crimping Stalf Lugs Al/Cu
Heavy-duty bimetallic stalf lugs manufactured for secure cable termination, providing excellent electrical conductivity, high strength, and long-lasting industrial performance.
Become a DISTRIBUTORS
| Material | High Conductor Copper & Aluminium 99.95% Pure |
|---|---|
| Finish | Natural |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 | BARREL LENGTH | BARREL ID | PALM WIDTH | BARREL LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|
| ALUMINIUM C |
ALUMINIUM B |
COPPER A-1 |
COPPER L-1 |
J | ||
| BMS6/12 | 6 | 3.5 | 32 | 12 | 28 | 70 |
| BMS10/12 | 10 | 4.5 | 32 | 12 | 28 | 70 |
| BMS16/12 | 16 | 5.5 | 32 | 12 | 28 | 70 |
| BMS25/12 | 25 | 7.5 | 32 | 12 | 28 | 70 |
| BMS35/12 | 35 | 8.5 | 32 | 12 | 28 | 70 |
| BMS50/12 | 50 | 9.5 | 32 | 12 | 28 | 70 |
| BMS70/12 | 70 | 11.5 | 32 | 12 | 28 | 70 |
| BMS95/12 | 95 | 13.5 | 60 | 12 | 37 | 110 |
| BMS120/12 | 120 | 15.5 | 60 | 12 | 37 | 110 |
| BMS120/14 | 120 | 15.5 | 60 | 14 | 37 | 110 |
| BMS150/12 | 150 | 16.5 | 60 | 12 | 45 | 120 |
| BMS150/14 | 150 | 16.5 | 60 | 14 | 45 | 120 |
| BMS185/16 | 185 | 18.5 | 60 | 16 | 45 | 120 |
| BMS185/18 | 185 | 18.5 | 60 | 18 | 45 | 120 |
| BMS240/16 | 240 | 22.0 | 60 | 16 | 45 | 120 |
| BMS240/18 | 240 | 22.0 | 60 | 18 | 45 | 120 |
| BMS300/16 | 300 | 23.5 | 60 | 16 | 45 | 120 |
| BMS300/18 | 300 | 23.5 | 60 | 18 | 45 | 120 |
| BMS400/18 | 400 | 26.5 | 70 | 18 | 65 | 155 |
| BMS400/20 | 400 | 26.5 | 70 | 20 | 65 | 155 |
| BMS500/18 | 500 | 30 | 70 | 18 | 65 | 155 |
| BMS500/20 | 500 | 30 | 70 | 20 | 65 | 155 |
| BMS630/20 | 630 | 34 | 70 | 20 | 65 | 160 |
