A1 CXT Industrial Cable Glands

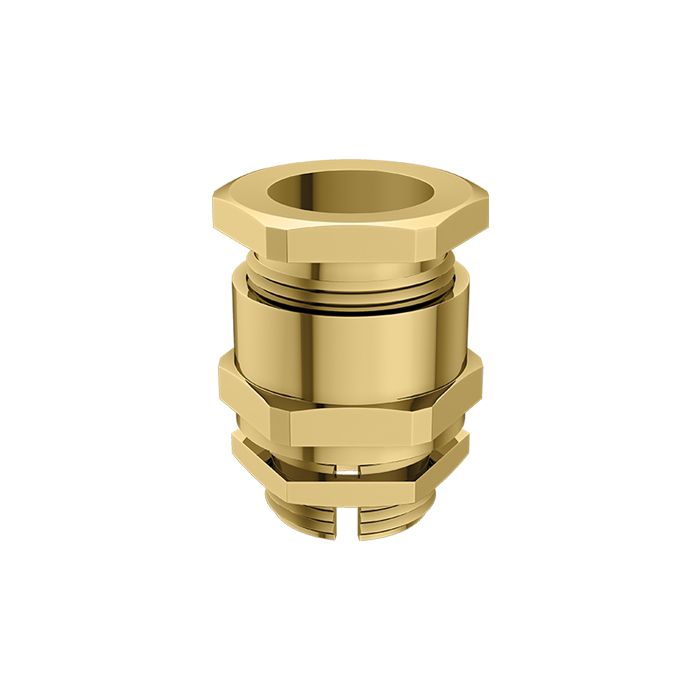

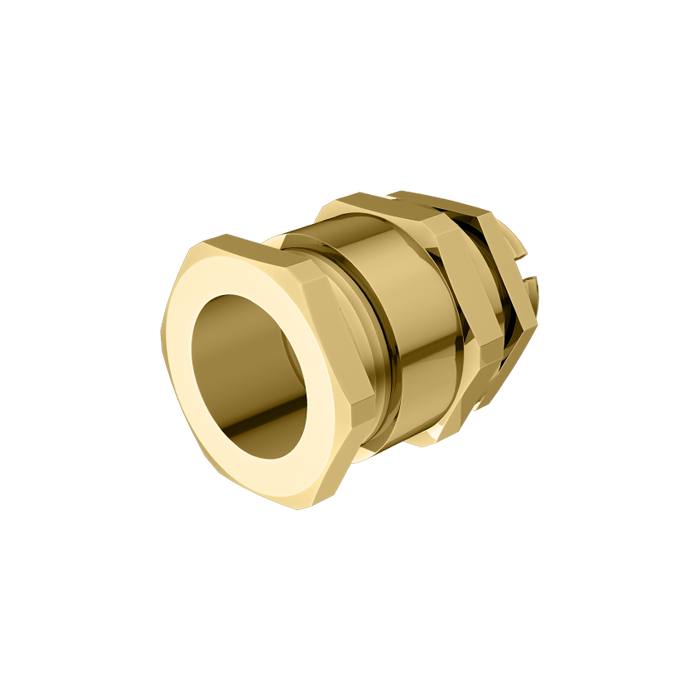

A1 CXT Cable Gland High-performance EMC cable gland designed for screened flexible wire braid cables (CY/SY). Provides superior electromagnetic shielding, secure braid retention, reliable strain relief, and IP66 protection. Ideal for industrial automation, control panels, VFD drives, and EMI-sensitive applications
Become a DISTRIBUTORS
| Material | Brass |
|---|---|
| Finish | Brass / Nickel |
| Type of Cable | Armoured & Unarmoured |
Technical Specifications
| CABLE GLAND SIZE | CAT. NO | UNDER ARMOUR DIA | ENTRY THREAD | HEXAGON | |||
|---|---|---|---|---|---|---|---|
| OVER ALL CABLE DIA MIN. | OVER ALL CABLE DIA MAX. | DIA | LENGTH (+/- 1 mm) | A/F (+/- 1 mm) | A/C (+/- 1 mm) | ||
| ‘A’ | ‘A’ | ‘C’ | ‘E’ | ‘G’ | ‘H’ | ||
| 20S | ZCXT 20S | 9 | 11 | 20 | 10 | 24 | 26 |
| 20L | ZCXT 20L | 8.5 | 13 | 20 | 10 | 26 | 29 |
| 25L | ZCXT 25L | 13 | 20 | 25 | 10 | 34 | 37 |
| 32L | ZCXT32L | 20 | 26 | 32 | 10 | 41 | 45 |
| 40L | ZCXT40L | 26 | 32 | 40 | 15 | 49 | 54 |
| 50S | ZCXT50S | 32 | 37 | 50 | 15 | 55 | 60 |
| 50L | ZCXT50L | 37 | 43 | 50 | 15 | 59.5 | 65 |
| 63S | ZCXT63S | 43 | 49 | 63 | 15 | 69 | 74 |
| 63L | ZCXT63L | 49 | 55 | 63 | 15 | 74 | 80 |
| 75S | ZCXT75S | 55 | 62 | 75 | 15 | 81 | 86.5 |
| 75L | ZCXT75L | 62 | 66 | 75 | 15 | 84 | 94 |
