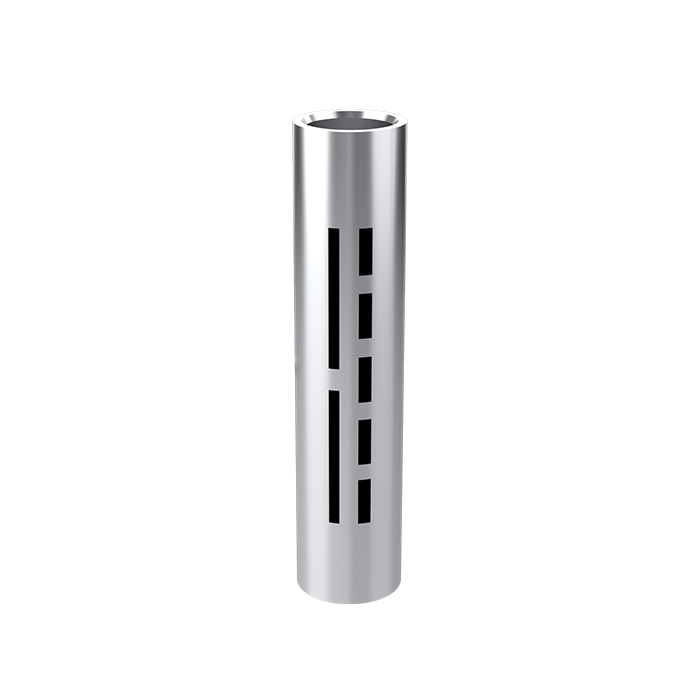

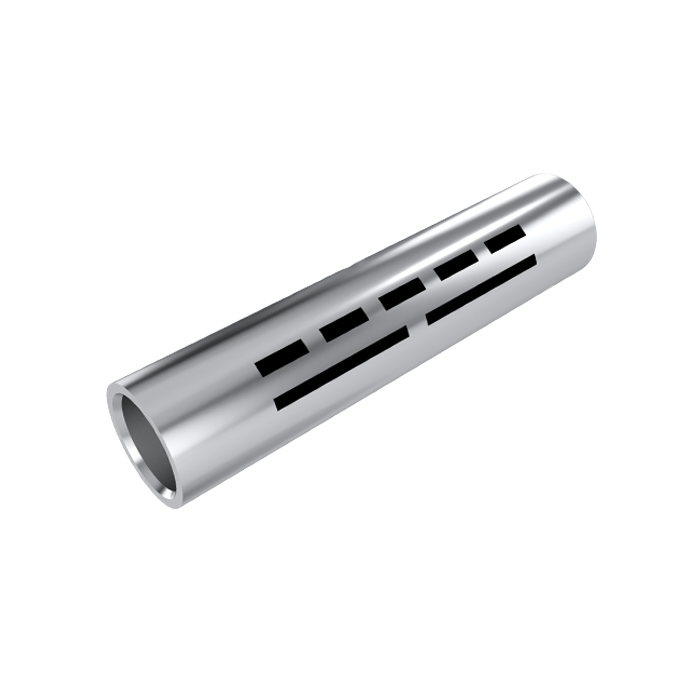

Aluminium Solid Connectors Din Standard
High-performance Aluminium Solid Connectors manufactured according to DIN standards for efficient cable joining applications. These connectors deliver excellent conductivity, superior mechanical strength, and long-term reliability in electrical and power distribution systems.
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Natural Finish |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | TOTAL LENGTH |
|---|---|---|---|
| A | J | ||
| ZADINC6 | 6 | 3.8 | 30 |
| ZADINC10 | 10 | 4.5 | 30 |
| ZADINC16 | 16 | 5.5 | 50 |
| ZADINC25 | 25 | 6.8 | 70 |
| ZADINC35 | 35 | 8 | 85 |
| ZADINC50 | 50 | 9.8 | 85 |
| ZADINC70 | 70 | 11.2 | 105 |
| ZADINC95 | 95 | 13.2 | 105 |
| ZADINC120 | 120 | 14.7 | 105 |
| ZADINC150 | 150 | 16.3 | 125 |
| ZADINC185 | 185 | 18.3 | 125 |
| ZADINC240 | 240 | 21 | 145 |
| ZADINC300 | 300 | 23.3 | 145 |
| ZADINC400 | 400 | 26 | 210 |
| ZADINC500 | 500 | 29 | 210 |
