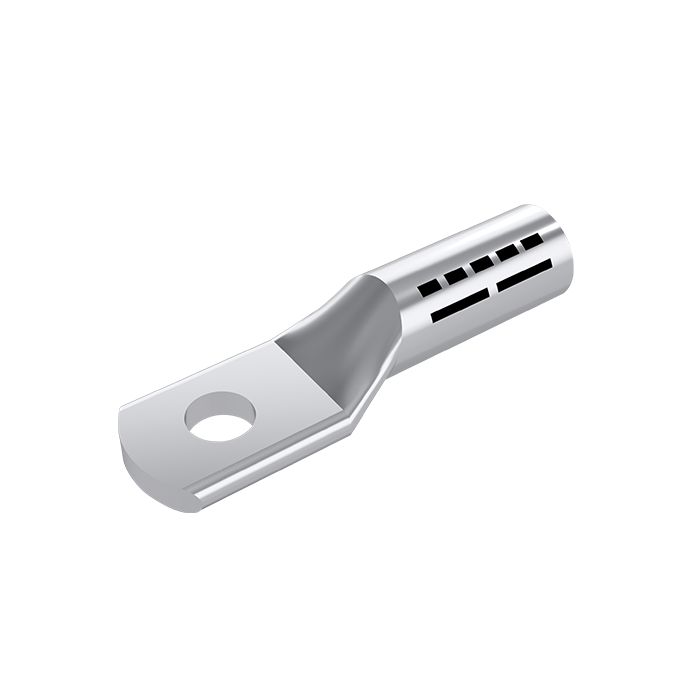

Aluminium Solid Crimping Lugs One Hole Din Standard
Aluminium Solid Crimping Lugs manufactured as per DIN Standard 46329 for reliable and secure cable termination. Designed using premium-quality aluminium, these lugs provide high electrical conductivity, strong mechanical performance, and corrosion-resistant durability for industrial and commercial use.
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Natural Finish |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| ZADIN258 | 25 | 8.4 | 6.8 | 25 | 30 | 31 | 65.5 |
| ZADIN5012 | 50 | 13 | 9.8 | 25 | 42 | 31 | 77.5 |
| ZADIN7012 | 70 | 13 | 11.2 | 25 | 52 | 31 | 87.5 |
| ZADIN958 | 95 | 8.4 | 13.2 | 25 | 56 | 31 | 90.5 |
| ZADIN9510 | 95 | 10.5 | 13.2 | 25 | 56 | 31 | 90.5 |
| ZADIN9512 | 95 | 13 | 13.2 | 25 | 56 | 31 | 90.5 |
| ZADIN9516 | 95 | 17 | 13.2 | 25 | 56 | 31 | 90.5 |
| ZADIN12010 | 120 | 10.5 | 14.7 | 30 | 56 | 40 | 100 |
| ZADIN12012 | 120 | 13 | 14.7 | 30 | 56 | 40 | 100 |
| ZADIN15010 | 150 | 10.5 | 16.3 | 30 | 60 | 40 | 110 |
| ZADIN15012 | 150 | 13 | 16.3 | 30 | 60 | 40 | 110 |
| ZADIN15016 | 150 | 17 | 16.3 | 30 | 60 | 40 | 110 |
| ZADIN18512 | 185 | 13 | 18.3 | 30 | 60 | 40 | 111 |
| ZADIN18516 | 185 | 17 | 18.3 | 30 | 60 | 40 | 111 |
| ZADIN24012 | 240 | 13 | 21 | 38 | 70 | 48 | 127 |
| ZADIN24016 | 240 | 17 | 21 | 38 | 70 | 48 | 127 |
| ZADIN30012 | 300 | 13 | 23.3 | 38 | 70 | 48 | 127 |
| ZADIN30016 | 300 | 17 | 23.3 | 38 | 70 | 48 | 127 |
