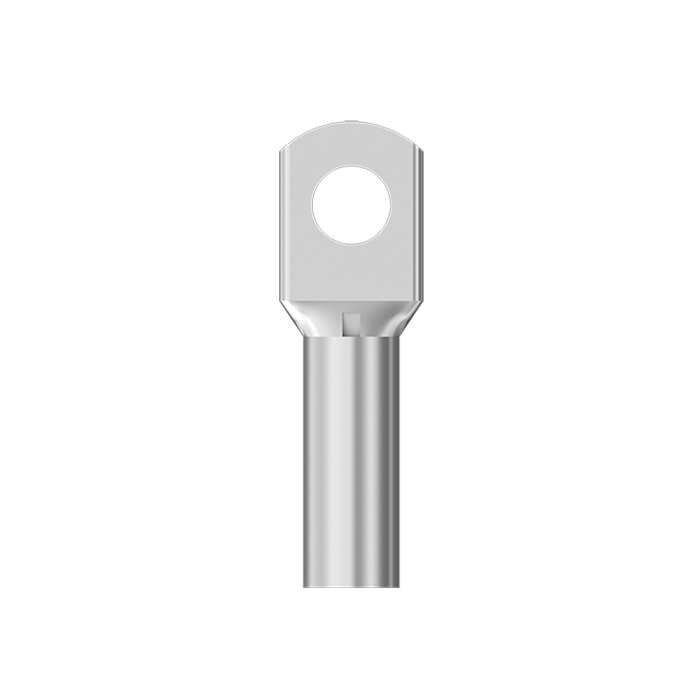

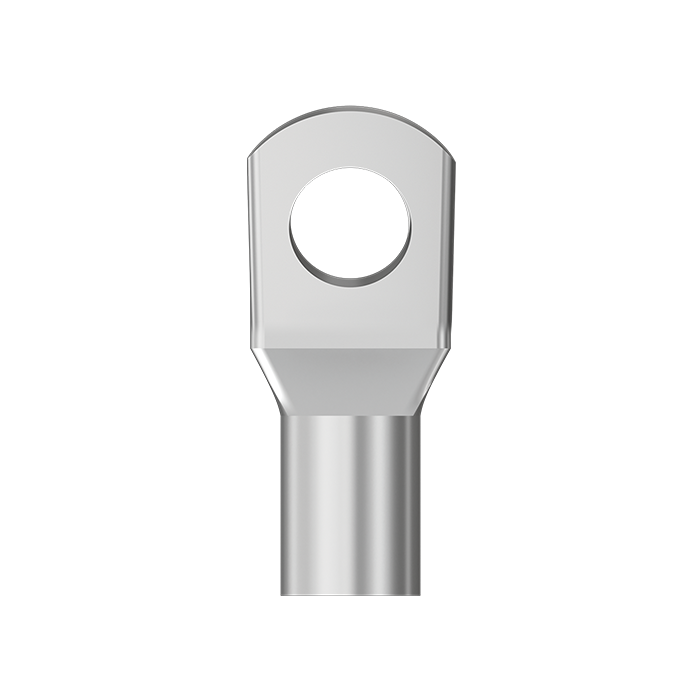

Copper Tube Crimping Lugs One Hole Heavy Duty
Heavy-duty copper lugs designed for high-current applications, offering superior conductivity, strength, and long-lasting durability in transformers, switchgear, industrial panels, and power distribution networks
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| ZCT-282 | 25 | 8.2 | 7.0 | 13 | 16 | 20 | 41 |
| ZCT-282A | 25 | 10.2 | 7.0 | 13 | 16 | 20 | 41 |
| ZCT-283 | 35 | 8.2 | 8.0 | 15 | 20 | 23 | 48 |
| ZCT-283A | 35 | 10.2 | 8.0 | 15 | 20 | 23 | 48 |
| ZCT-284 | 50 | 8.2 | 9.2 | 17 | 26 | 26 | 59 |
| ZCT-284A | 50 | 10.2 | 9.2 | 17 | 26 | 26 | 59 |
| ZCT-284B | 50 | 12.7 | 9.2 | 17 | 26 | 26 | 59 |
| ZCT-285 | 70 | 10.2 | 11.5 | 20 | 28 | 31 | 66 |
| ZCT-285A | 70 | 12.7 | 11.5 | 20 | 28 | 31 | 66 |
| ZCT-286 | 95 | 12.7 | 12.8 | 24 | 32 | 32 | 74 |
| ZCT-286A | 95 | 10.2 | 12.8 | 24 | 32 | 32 | 74 |
| ZCT-286B | 95 | 16.2 | 12.8 | 24 | 32 | 32 | 74 |
| ZCT-287 | 120 | 12.7 | 14.8 | 28 | 35 | 37 | 82 |
| ZCT-287A | 120 | 16.2 | 14.8 | 28 | 35 | 37 | 82 |
| ZCT-288 | 150 | 12.7 | 16.0 | 30 | 38 | 38 | 86 |
| ZCT-288A | 150 | 16.2 | 16.0 | 30 | 38 | 38 | 86 |
| ZCT-289 | 185 | 12.7 | 18.0 | 34 | 43 | 40 | 95 |
| ZCT-289A | 185 | 16.2 | 18.0 | 34 | 43 | 40 | 95 |
| ZCT-289B | 185 | 21 | 18.0 | 34 | 43 | 40 | 95 |
| ZCT-290 | 240 | 16.2 | 22.0 | 40 | 50 | 50 | 112 |
| ZCT-290A | 240 | 21 | 22.0 | 40 | 50 | 50 | 112 |
| ZCT-291 | 300 | 16.2 | 24.0 | 43 | 54 | 52 | 120 |
| ZCT-291A | 300 | 21 | 24.0 | 43 | 54 | 52 | 120 |
| ZCT-292 | 400 | 20.3 | 28.0 | 50 | 62 | 56 | 134 |
| ZCT-292A | 400 | 17 | 28.0 | 50 | 62 | 56 | 134 |
