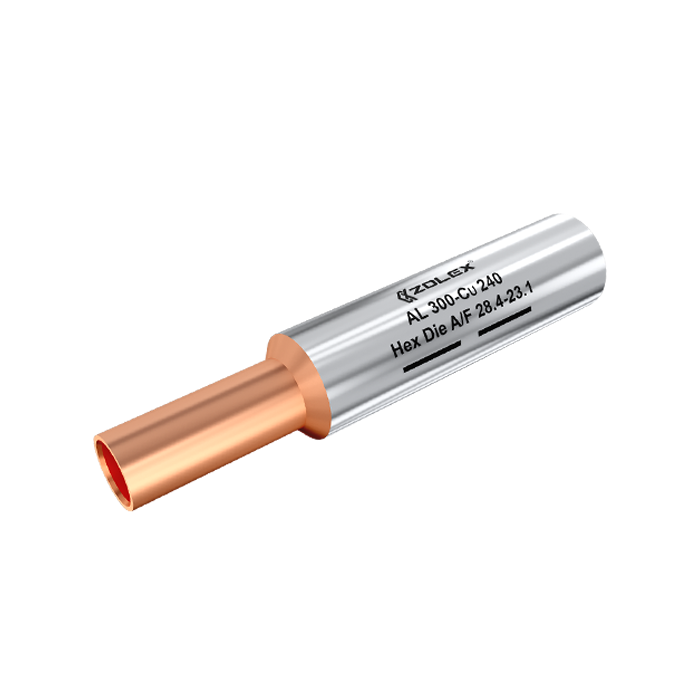

Bimetallic Crimping Reducing Links Al/Cu
Durable Aluminium-Copper reducing links designed for safe and efficient connection between different cable sizes with superior conductivity and dependable performance.
Become a DISTRIBUTORS
| Material | High Conductor Copper & Aluminium 99.95% Pure |
|---|---|
| Finish | Natural |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 | BARREL LENGTH | BARREL ID | PALM WIDTH | BARREL LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|
| ALUMINIUM B |
ALUMINIUM C |
COPPER B-1 |
COPPER C-1 |
J | ||
| BMC6/4 | 6/4 | 32 | 3.5 | 21 | 3 | 70 |
| BMC6/6 | 6/6 | 32 | 3.5 | 21 | 3.5 | 70 |
| BMC10/6 | 10/6 | 32 | 4.5 | 21 | 3.5 | 70 |
| BMC10/10 | 10/10 | 32 | 4.5 | 21 | 4.5 | 70 |
| BMC16/10 | 16/10 | 32 | 5.5 | 21 | 4.5 | 70 |
| BMC16/16 | 16/16 | 32 | 5.5 | 21 | 5.5 | 70 |
| BMC25/16 | 25/16 | 32 | 7.5 | 21 | 5.5 | 70 |
| BMC25/25 | 25/25 | 32 | 7.5 | 21 | 7.5 | 70 |
| BMC35/25 | 35/25 | 32 | 8.5 | 21 | 7.5 | 70 |
| BMC35/35 | 35/35 | 32 | 8.5 | 21 | 8.5 | 70 |
| BMC50/35 | 50/35 | 32 | 9.5 | 24 | 8.5 | 70 |
| BMC50/50 | 50/50 | 32 | 9.5 | 24 | 9.5 | 70 |
| BMC70/50 | 70/50 | 32 | 11.5 | 24 | 9.5 | 70 |
| BMC70/70 | 70/70 | 32 | 11.5 | 24 | 11.5 | 70 |
| BMC95/70 | 95/70 | 60 | 13.5 | 32 | 11.5 | 110 |
| BMC95/95 | 95/95 | 60 | 13.5 | 32 | 13.5 | 110 |
| BMC120/95 | 120/95 | 60 | 15.5 | 32 | 13.5 | 110 |
| BMC120/120 | 120/120 | 60 | 15.5 | 32 | 15.5 | 110 |
| BMC150/120 | 150/120 | 60 | 16.5 | 40 | 15.5 | 120 |
| BMC150/150 | 150/150 | 60 | 16.5 | 40 | 16.5 | 120 |
| BMC185/150 | 185/150 | 60 | 18.5 | 40 | 16.5 | 120 |
| BMC185/185 | 185/185 | 60 | 18.5 | 40 | 18.5 | 120 |
| BMC240/185 | 240/185 | 60 | 22 | 40 | 18.5 | 120 |
| BMC240/240 | 240/240 | 60 | 22 | 40 | 21.5 | 120 |
| BMC300/240 | 300/240 | 60 | 23.5 | 40 | 21.5 | 120 |
| BMC300/300 | 300/300 | 60 | 23.5 | 40 | 23.5 | 120 |
| BMC400/300 | 400/300 | 70 | 26.5 | 55 | 23.5 | 155 |
| BMC400/400 | 400/400 | 70 | 26.5 | 55 | 26.5 | 155 |
| BMC500/400 | 500/400 | 70 | 30 | 55 | 26.5 | 155 |
| BMC500/500 | 500/500 | 70 | 30 | 55 | 30 | 155 |
| BMC630/500 | 630/500 | 70 | 34 | 56 | 30 | 160 |
| BMC630/630 | 630/630 | 70 | 34 | 56 | 34 | 160 |
