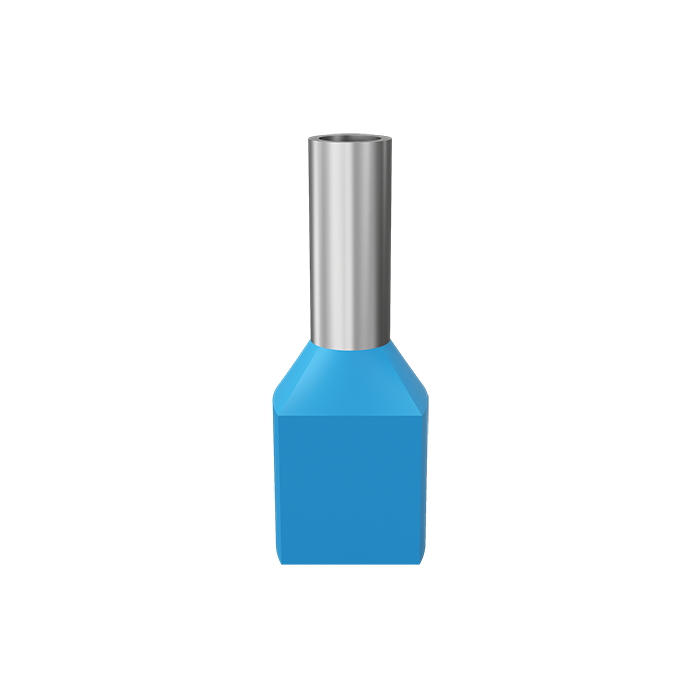

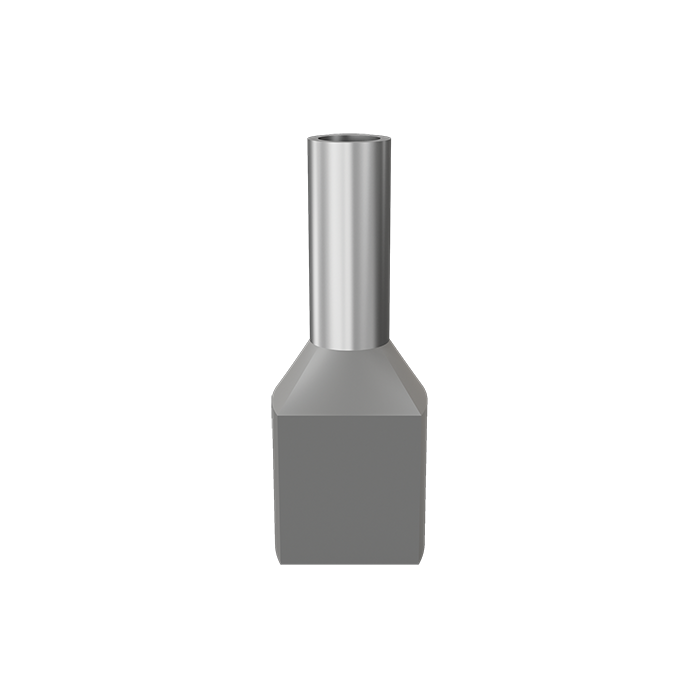

Twin Insulated End Sleeve
We manufacture and supply premium quality Twin Insulated End Sleeves designed for secure dual wire termination, preventing strand fraying and ensuring reliable electrical connections.
Become a DISTRIBUTORS
| Material | High Conductor Copper 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 | COLOR CODE | DIMENSIONS | ||
|---|---|---|---|---|---|
| J-2 | A | D | |||
| ZSFT-508L8 | 0.5 | WHITE | 8 | 1.5 | 5.6 |
| ZSFT-509L8 | 0.75 | GREY | 8 | 1.8 | 6.2 |
| ZSFT-509L10 | 0.75 | 10 | 1.8 | 6.2 | |
| ZSFT-510L8 | 1 | RED | 8 | 2 | 6 |
| ZSFT-511L10 | 1 | 10 | 2 | 6 | |
| ZSFT-512L8 | 1.5 | BLACK | 8 | 2.3 | 7.2 |
| ZSFT-512L10 | 1.5 | 10 | 2.3 | 7.2 | |
| ZSFT-513L12 | 1.5 | 12 | 2.3 | 7.2 | |
| ZSFT-514L6 | 2.5 | PURPLE | 6 | 2.9 | 8.5 |
| ZSFT-514L8 | 2.5 | 8 | 2.9 | 8.5 | |
| ZSFT-515L10 | 2.5 | 10 | 2.9 | 8.5 | |
| ZSFT-515L12 | 2.5 | 12 | 2.9 | 8.5 | |
| ZSFT-517L12 | 4 | GREY | 12 | 3.8 | 9.2 |
| ZSFT-520L14 | 6 | YELLOW | 14 | 4.9 | 10.5 |
| ZSFT-522L14 | 10 | RED | 14 | 6.5 | 13 |
| ZSFT-525L14 | 16 | PURPLE | 14 | 8.3 | 19.3 |
