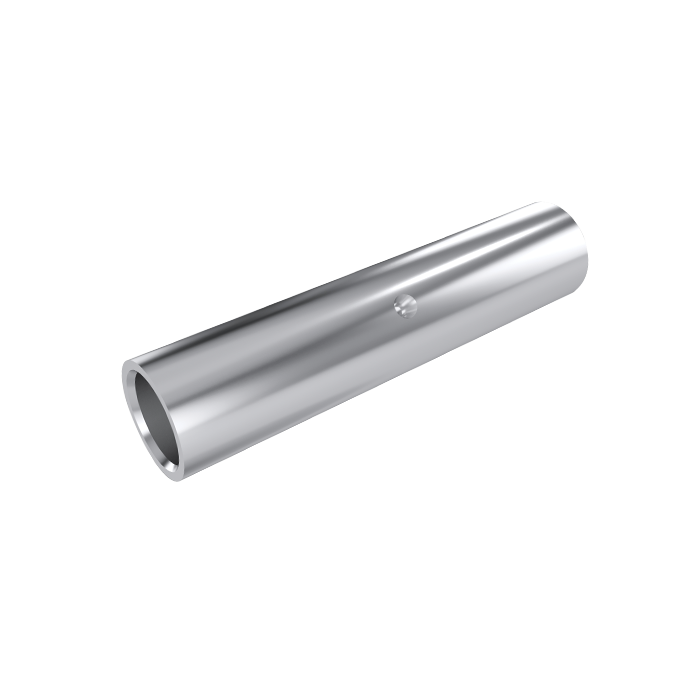

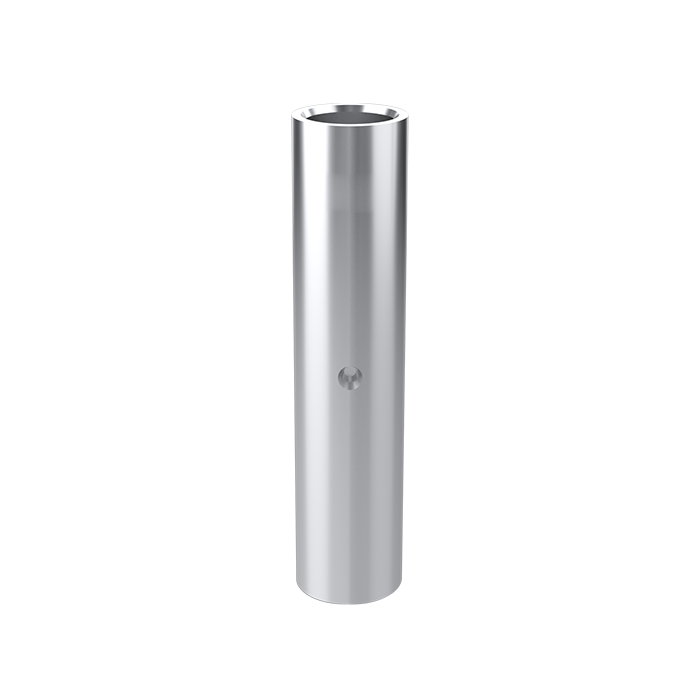

Aluminium Tube Crimping Through Connectors
Premium Aluminium Tube Crimping Through Connectors engineered for safe and efficient cable joining applications. Made from high-quality aluminium, these connectors ensure superior conductivity, reliable mechanical strength, and dependable performance in industrial electrical systems.
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Natural Finish |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | TOTAL LENGTH |
|---|---|---|---|
| A | J | ||
| ZAC-145 | 2.5 | 2 | 16 |
| ZAC-6 | 2.5 | 2.6 | 16 |
| ZAC-5 | 4 | 2.9 | 16 |
| ZAC-13 | 6 | 3.5 | 16 |
| ZAC-146 | 10 | 3.8 | 20 |
| ZAC-14 | 10 | 4.4 | 20 |
| ZAC-4 | 16 | 5.4 | 26 |
| ZAC-3 | 25 | 7 | 35 |
| ZAC-2 | 35 | 8 | 40 |
| ZAC-12 | 50 | 9.3 | 45 |
| ZAC-1 | 70 | 11.6 | 55 |
| ZAC-15 | 95 | 12.9 | 60 |
| ZAC-9 | 120 | 15 | 65 |
| ZAC-10 | 150 | 16.5 | 70 |
| ZAC-11 | 185 | 18.5 | 75 |
| ZAC-147 | 225 | 21 | 85 |
| ZAC-16 | 240 | 22 | 90 |
| ZAC-17 | 300 | 24 | 100 |
| ZAC-18 | 400 | 28 | 115 |
| ZAC-19 | 500 | 31 | 125 |
| ZAC-20 | 625 | 36 | 140 |
| ZAC-148 | 800 | 39 | 160 |
| ZAC-149 | 1000 | 43.5 | 210 |
