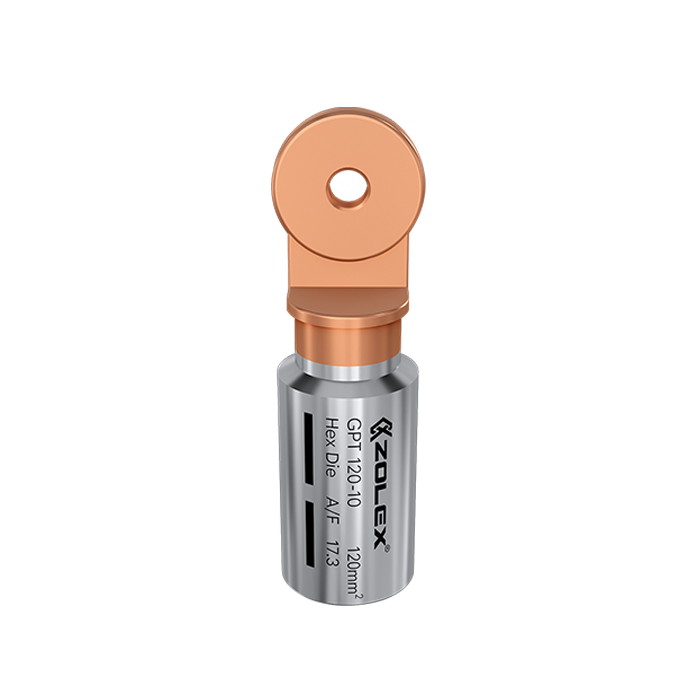

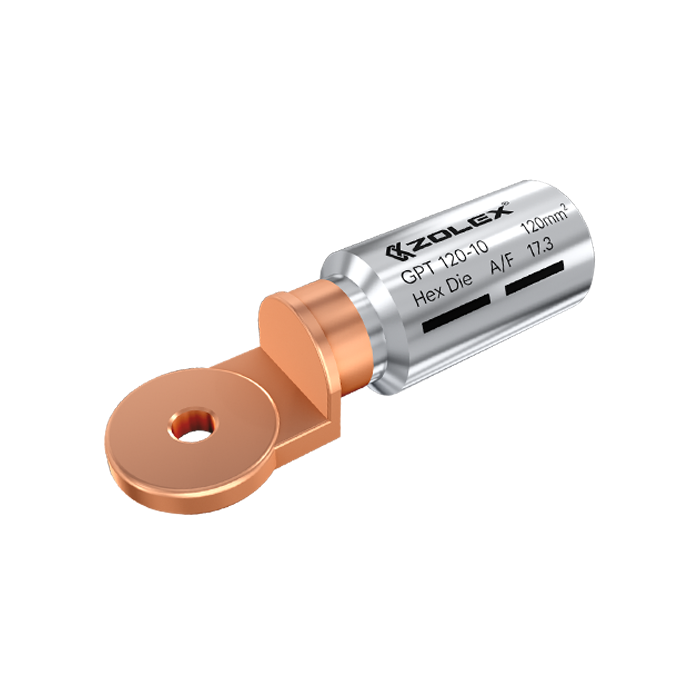

Bimetallic Crimping Lugs, Al/Cu
High-quality Aluminium-Copper Bimetallic Crimping Lugs designed for secure cable termination with excellent conductivity, corrosion resistance, and reliable long-term electrical performance.
Become a DISTRIBUTORS
| Material | High Conductor Copper & Aluminium 99.95% Pure |
|---|---|
| Finish | Natural |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| GPT16-8 | 16 | 8.5 | 5.5 | 20 | 32 | 24 | 75 |
| GPT16-10 | 16 | 10.5 | 5.5 | 20 | 32 | 24 | 75 |
| GPT25-10 | 25 | 10.5 | 7.5 | 20 | 32 | 24 | 75 |
| GPT25-12 | 25 | 12.5 | 7.5 | 20 | 32 | 24 | 75 |
| GPT35-10 | 35 | 10.5 | 8.5 | 20 | 32 | 24 | 75 |
| GPT35-12 | 35 | 12.5 | 8.5 | 20 | 32 | 24 | 75 |
| GPT50-10 | 50 | 10.5 | 9.5 | 24 | 32 | 26 | 75 |
| GPT50-12 | 50 | 12.5 | 9.5 | 24 | 32 | 26 | 75 |
| GPT70-10 | 70 | 10.5 | 11.5 | 24 | 32 | 26 | 75 |
| GPT70-12 | 70 | 12.5 | 11.5 | 24 | 32 | 26 | 75 |
| GPT95-10 | 95 | 10.5 | 13.5 | 24 | 60 | 26 | 115 |
| GPT95-12 | 95 | 12.5 | 13.5 | 24 | 60 | 26 | 115 |
| GPT120-10 | 120 | 10.5 | 15.5 | 30 | 60 | 33 | 112 |
| GPT120-12 | 120 | 12.5 | 15.5 | 30 | 60 | 33 | 112 |
| GPT150-10 | 150 | 10.5 | 16.5 | 30 | 60 | 33 | 120 |
| GPT150-12 | 150 | 12.5 | 16.5 | 30 | 60 | 33 | 120 |
| GPT185-10 | 185 | 10.5 | 18.5 | 30 | 60 | 33 | 114 |
| GPT185-12 | 185 | 12.5 | 18.5 | 30 | 60 | 33 | 114 |
| GPT240-10 | 240 | 10.5 | 22 | 30 | 60 | 33 | 121 |
| GPT240-12 | 240 | 12.5 | 22 | 30 | 60 | 33 | 121 |
| GPT300-10 | 300 | 10.5 | 23.5 | 36 | 60 | 38 | 125.5 |
| GPT300-12 | 300 | 12.5 | 23.5 | 36 | 60 | 38 | 125.5 |
| GPT400-10 | 400 | 10.5 | 26.5 | 36 | 70 | 39 | 141 |
| GPT400-12 | 400 | 12.5 | 26.5 | 36 | 70 | 39 | 141 |
| GPT400-16 | 400 | 17 | 26.5 | 36 | 70 | 39 | 141 |
