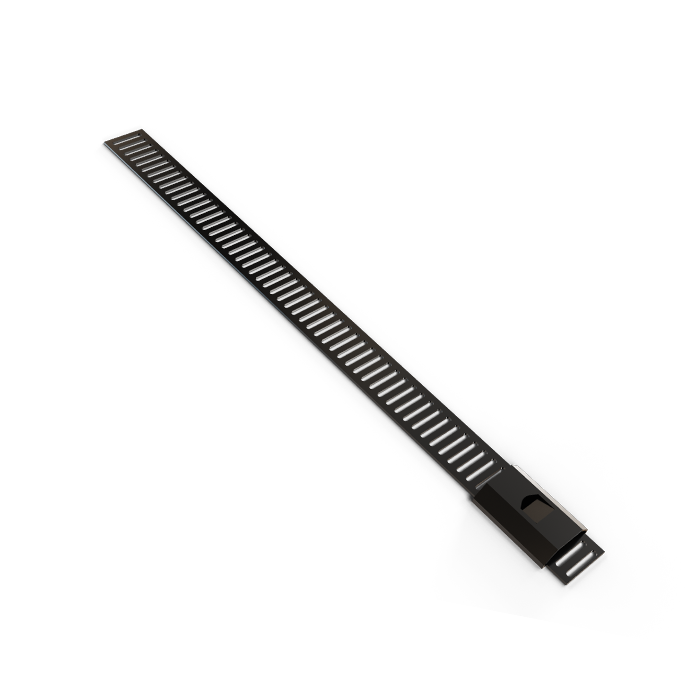

Ladder Type Steel Cable Ties Coated
Ladder Type Steel Cable Ties Coated - Image 2
Ladder Type Steel Cable Ties Coated - Image 3

Ladder Type Steel Cable Ties Coated

Category:

Our coated stainless steel ladder-type cable ties provide a strong and reliable fastening solution, offering excellent resistance to corrosion, chemicals, UV exposure, and harsh weather conditions. They ensure dependable long-term performance in industrial, marine, telecom, and outdoor applications.

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material 304 & 316 Grade Non Magnetic Stainless Steel
    Finish Pure Polyester Coating
    Temperature -60˚C To +150˚C

    Technical Specifications

    PART CODE AS PER STAINLESS STEEL GRADE WIDTH LENGTH THICKNESS MAX. LOOP DIAMETER MAX. LOOP TENSILE STRENGTH PACKAGE QUANTITY
    SS304 SS316 INCH MM INCH MM INCH MM INCH MM N LBS PCS
    ELC14-100 ELC16-100 0.28 7 4 100 0.012 0.3 0.94 24
    ELC14-150 ELC16-150 0.28 7 6 150 0.012 0.3 1.89 48
    ELC14-200 ELC16-200 0.28 7 8 200 0.012 0.3 2.52 64
    ELC14-225 ELC16-225 0.28 7 9 225 0.012 0.3 2.83 72
    ELC14-250 ELC16-250 0.28 7 10 250 0.012 0.3 3.15 80
    ELC14-300 ELC16-300 0.28 7 12 300 0.012 0.3 3.78 96
    ELC14-350 ELC16-350 0.28 7 14 350 0.012 0.3 4.33 110
    ELC14-360 ELC16-360 0.28 7 14 360 0.012 0.3 4.53 115 400 90 100/BAG
    ELC14-400 ELC16-400 0.28 7 16 400 0.012 0.3 5.28 134
    ELC14-450 ELC16-450 0.28 7 18 450 0.012 0.3 5.63 143
    ELC14-500 ELC16-500 0.28 7 20 500 0.012 0.3 6.54 166
    ELC14-550 ELC16-550 0.28 7 22 550 0.012 0.3 7.13 181
    ELC14-610 ELC16-610 0.28 7 24 610 0.012 0.3 7.64 194
    ELC14-750 ELC16-750 0.28 7 30 750 0.012 0.3 9.41 239
    ELC14-1000 ELC16-1000 0.28 7 39 1000 0.012 0.3 12.52 318
    PART CODE AS PER STAINLESS STEEL GRADE WIDTH LENGTH THICKNESS MAX. LOOP DIAMETER MAX. LOOP TENSILE STRENGTH PACKAGE QUANTITY
    SS304 SS316 INCH MM INCH MM INCH MM INCH MM N LBS PCS
    ELC24-100 ELC26-100 0.47 12 4 100 0.012 0.3 0.94 24
    ELC24-150 ELC26-150 0.47 12 6 150 0.012 0.3 1.89 48
    ELC24-200 ELC26-200 0.47 12 8 200 0.012 0.3 2.52 64
    ELC24-225 ELC26-225 0.47 12 9 225 0.012 0.3 2.83 72
    ELC24-250 ELC26-250 0.47 12 10 250 0.012 0.3 3.15 80
    ELC24-300 ELC26-300 0.47 12 12 300 0.012 0.3 3.78 96
    ELC24-350 ELC26-350 0.47 12 14 350 0.012 0.3 4.33 110
    ELC24-360 ELC26-360 0.47 12 14 360 0.012 0.3 4.53 115 800 180 100/BAG
    ELC24-400 ELC26-400 0.47 12 16 400 0.012 0.3 5.28 134
    ELC24-450 ELC26-450 0.47 12 18 450 0.012 0.3 5.63 143
    ELC24-500 ELC26-500 0.47 12 20 500 0.012 0.3 6.54 166
    ELC24-550 ELC26-550 0.47 12 22 550 0.012 0.3 7.13 181
    ELC24-610 ELC26-610 0.47 12 24 610 0.012 0.3 7.64 194
    ELC24-750 ELC26-750 0.47 12 30 750 0.012 0.3 9.41 239
    ELC24-1000 ELC26-1000 0.47 12 39 1000 0.012 0.3 12.52 318
