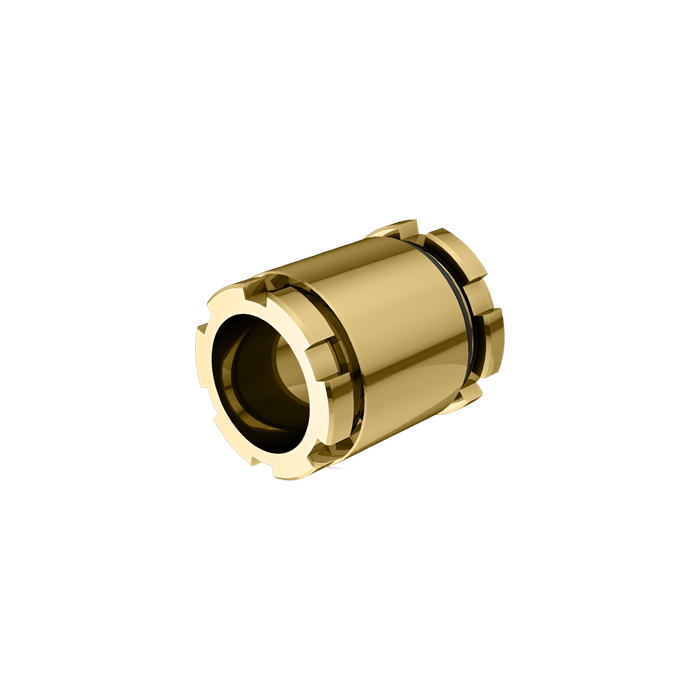

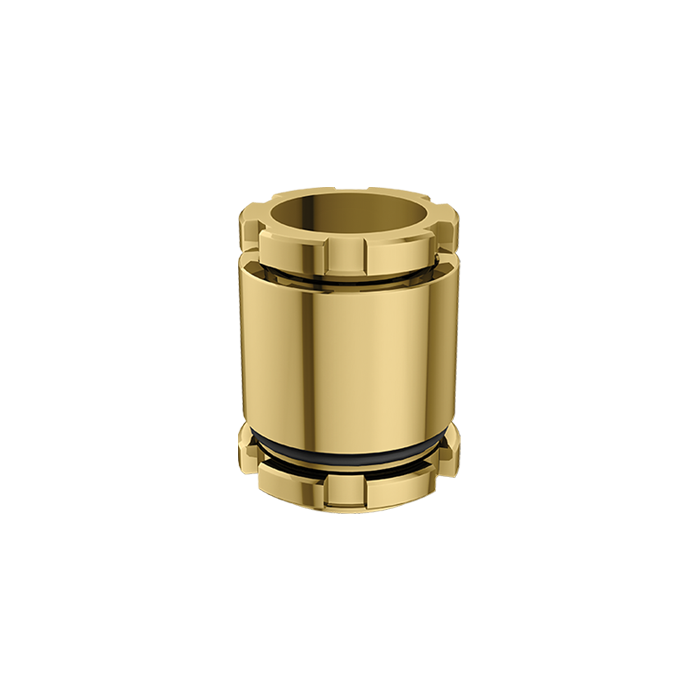

Marine Cable Gland
Marine Cable Gland Heavy-duty, corrosion-resistant cable gland engineered for marine, offshore, and shipbuilding applications. Designed to provide secure cable retention, superior sealing, and reliable protection against saltwater, moisture, vibration, and harsh environmental conditions. Ideal for ships, offshore platforms, naval vessels, port infrastructure, and marine electrical installations.
Become a DISTRIBUTORS
| Material | Brass |
|---|---|

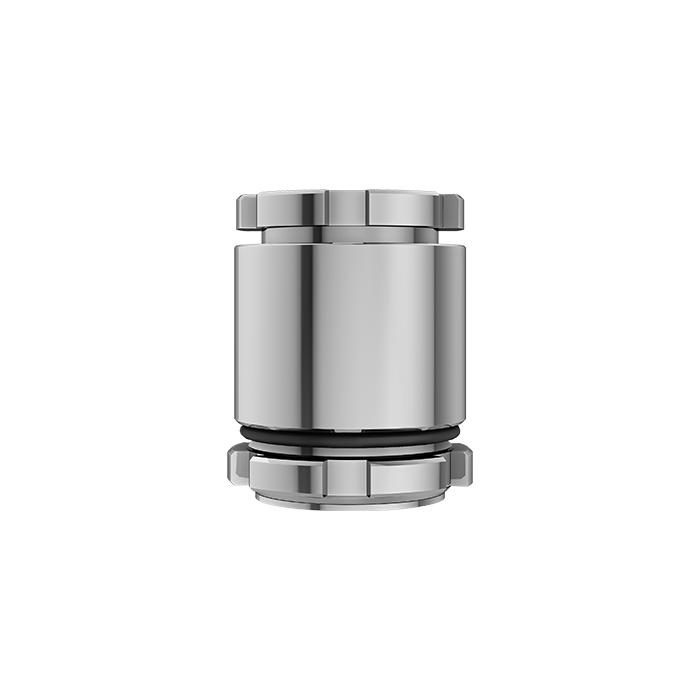

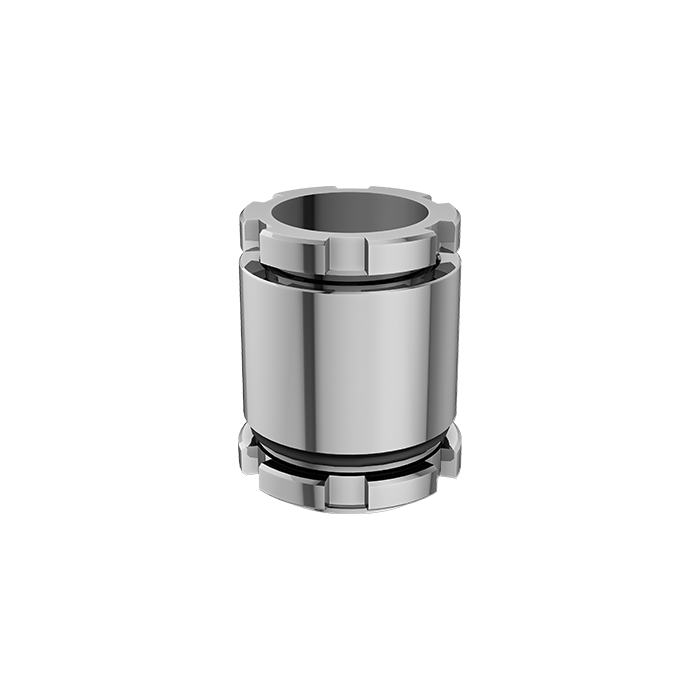

| Finish | Brass / Nickel |
| Type of Cable | Armoured & Unarmoured |
Technical Specifications
| CAT. NO. | GLAND SIZE | ‘A’ | ‘B’ | ‘C’ | THREAD LENGTH (IN MM) ‘D’ |
|---|---|---|---|---|---|
| Z-MCG-10 | 10 | 45 | 45 | 3/8″ BSP | 11 |
| Z-MCG-15 | 15 | 50 | 50 | 1/2″ BSP | 10 |
| Z-MCG-20 | 20 | 53 | 53 | 3/4″ BSP | 11 |
| Z-MCG-25 | 25 | 60 | 60 | 1″ BSP | 12 |
| Z-MCG-30 | 30 | 65 | 65 | 1¼” BSP | 12 |
| Z-MCG-35 | 35 | 70 | 70 | 1½” BSP | 12 |
| Z-MCG-40 | 40 | 70 | 70 | 1½” BSP | 12 |
| Z-MCG-45 | 45 | 85 | 85 | 2″ BSP | 12 |
| Z-MCG-50 | 50 | 85 | 85 | 2″ BSP | 12 |
| Z-MCG-55 | 55 | 87 | 87 | 2½” BSP | 12 |
| Z-MCG-60 | 60 | 88 | 88 | 2½” BSP | 12 |
| Z-MCG-65 | 65 | 100 | 100 | 3″ BSP | 14 |
| Z-MCG-70 | 70 | 110 | 110 | 3″ BSP | 14 |
