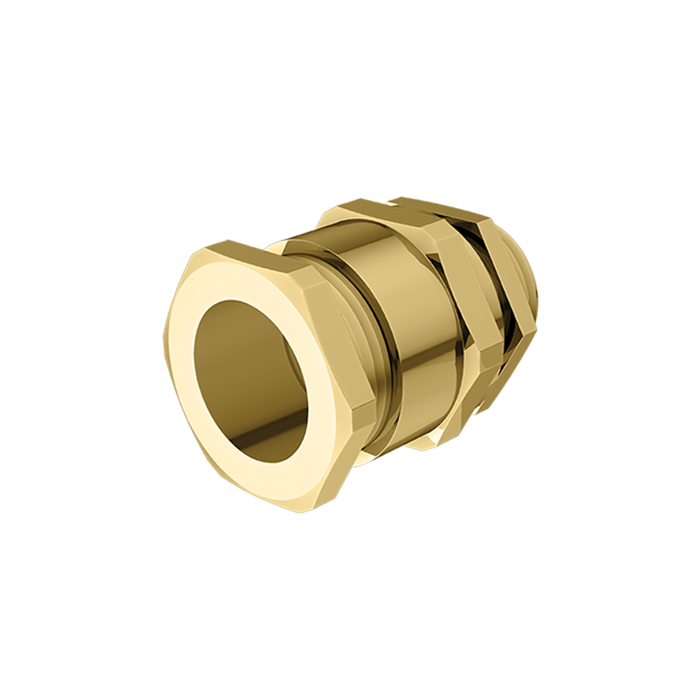

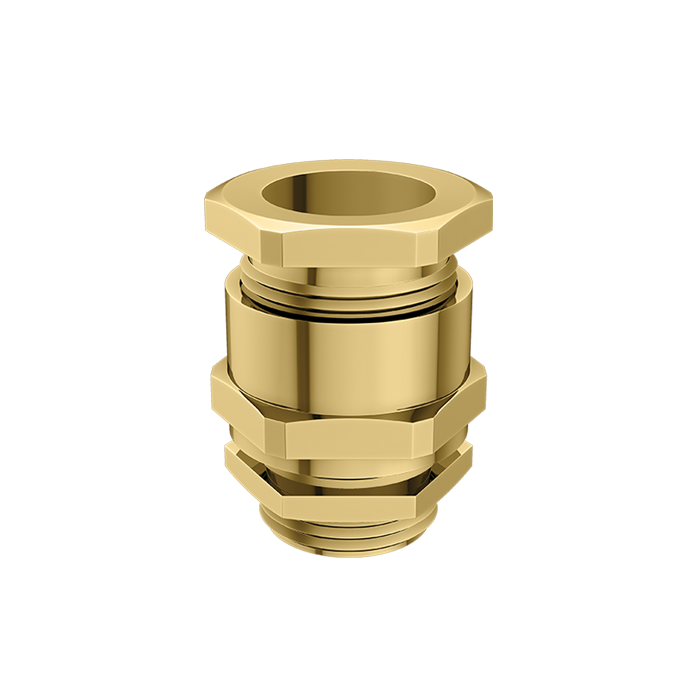

A2 Industrial Cable Gland

A2 Cable Gland Premium-quality cable gland engineered for secure cable termination and reliable cable management. Designed to provide excellent strain relief, dust and moisture protection, and long-lasting performance in electrical panels, junction boxes, industrial machinery, and outdoor installations.

Material	Brass
Finish	Brass / Nickel
Type of Cable	Armoured & Unarmoured

Technical Specifications

CABLE GLAND SIZE	CAT. NO	UNDER ARMOUR DIA		ENTRY THREAD		HEXAGON
		OVER ALL CABLE DIA MIN.	OVER ALL CABLE DIA MAX.	DIA	LENGTH (+ / – 1 mm)	A/F (+ / – 1 mm)	A/C (+ / – 1 mm)
		‘A’	‘A’	‘C’	‘E’	‘G’	‘H’
20S	ZA220S	9	11	20	10	24	26
20L	ZA220L	8.5	13	20	10	26	29
25S	ZA225S	10	17.5	25	10	30	33
25L	ZA225L	13	20	25	10	34	37
32S	ZA232S	20	25	32	10	41	45
32L	ZA232L	20	26	32	10	41	45
40S	ZA240S	20	28	40	15	49	54
40L	ZA240L	26	32	40	15	49	54
50S	ZA250S	32	37	50	15	55	60
50L	ZA250L	37	43	50	15	59.5	65
63S	ZA263S	43	49	63	15	69	74
63L	ZA263L	49	55	63	15	74	80
75S	ZA275S	55	62	75	15	81	86.5
75L	ZA275L	62	66	75	15	84	94
