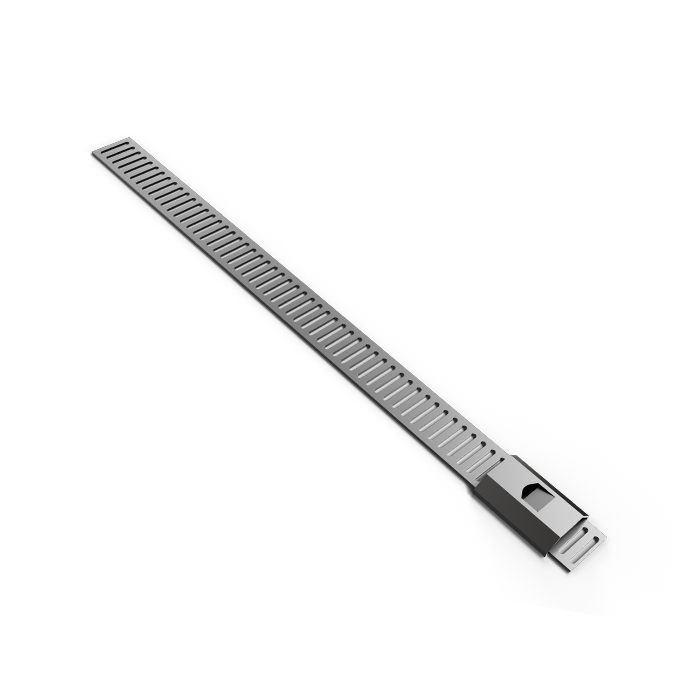

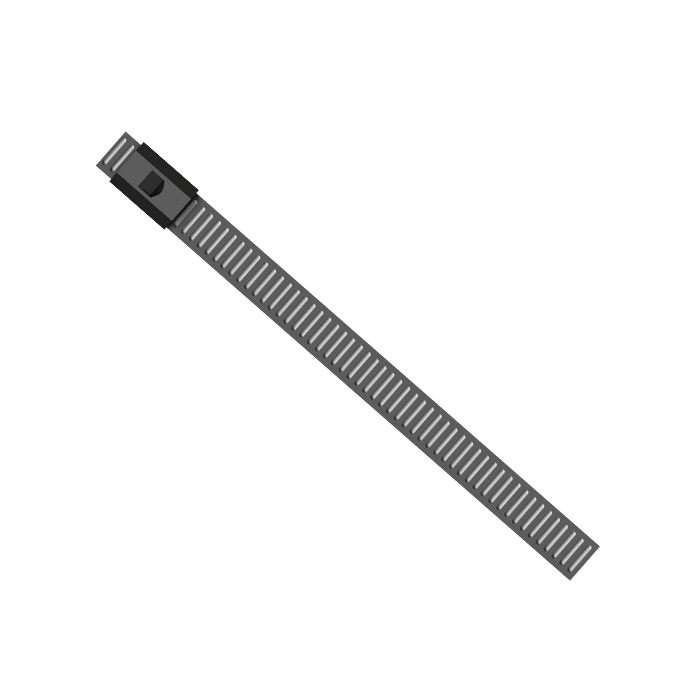

Ladder Type Steel Cable Ties Uncoated
Ladder Type Steel Cable Ties Uncoated - Image 2
Ladder Type Steel Cable Ties Uncoated - Image 3

Ladder Type Steel Cable Ties Uncoated

Category:

Built from high-quality stainless steel, these ladder type cable ties provide strong, secure fastening with excellent corrosion resistance and reliable performance in industrial, marine, telecom, and outdoor applications.

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material 304 & 316 Grade Non Magnetic Stainless Steel
    Finish Metallic
    Temperature -60˚C To +300˚C

    Technical Specifications

    PART CODE AS PER STAINLESS STEEL GRADE WIDTH LENGTH THICKNESS MAX. LOOP DIAMETER MAX. LOOP TENSILE STRENGTH PACKAGE QUANTITY
    SS304 SS316 INCH MM INCH MM INCH MM INCH MM N LBS PCS
    ELU14-100 ELU16-100 0.28 7 4 100 0.012 0.3 0.94 24
    ELU14-150 ELU16-150 0.28 7 6 150 0.012 0.3 1.89 48
    ELU14-200 ELU16-200 0.28 7 8 200 0.012 0.3 2.52 64
    ELU14-225 ELU16-225 0.28 7 9 225 0.012 0.3 2.83 72
    ELU14-250 ELU16-250 0.28 7 10 250 0.012 0.3 3.15 80
    ELU14-300 ELU16-300 0.28 7 12 300 0.012 0.3 3.78 96
    ELU14-350 ELU16-350 0.28 7 14 350 0.012 0.3 4.33 110
    ELU14-360 ELU16-360 0.28 7 14 360 0.012 0.3 4.53 115 400 90 100/BAG
    ELU14-400 ELU16-400 0.28 7 16 400 0.012 0.3 5.28 134
    ELU14-450 ELU16-450 0.28 7 18 450 0.012 0.3 5.63 143
    ELU14-500 ELU16-500 0.28 7 20 500 0.012 0.3 6.54 166
    ELU14-550 ELU16-550 0.28 7 22 550 0.012 0.3 7.13 181
    ELU14-610 ELU16-610 0.28 7 24 610 0.012 0.3 7.64 194
    ELU14-750 ELU16-750 0.28 7 30 750 0.012 0.3 9.41 239
    ELU14-1000 ELU16-1000 0.28 7 39 1000 0.012 0.3 12.52 318
    PART CODE AS PER STAINLESS STEEL GRADE WIDTH LENGTH THICKNESS MAX. LOOP DIAMETER MAX. LOOP TENSILE STRENGTH PACKAGE QUANTITY
    SS304 SS316 INCH MM INCH MM INCH MM INCH MM N LBS PCS
    ELU24-100 ELU26-100 0.47 12 4 100 0.012 0.3 0.94 24
    ELU24-150 ELU26-150 0.47 12 6 150 0.012 0.3 1.89 48
    ELU24-200 ELU26-200 0.47 12 8 200 0.012 0.3 2.52 64
    ELU24-225 ELU26-225 0.47 12 9 225 0.012 0.3 2.83 72
    ELU24-250 ELU26-250 0.47 12 10 250 0.012 0.3 3.15 80
    ELU24-300 ELU26-300 0.47 12 12 300 0.012 0.3 3.78 96
    ELU24-350 ELU26-350 0.47 12 14 350 0.012 0.3 4.33 110
    ELU24-360 ELU26-360 0.47 12 14 360 0.012 0.3 4.53 115 800 180 100/BAG
    ELU24-400 ELU26-400 0.47 12 16 400 0.012 0.3 5.28 134
    ELU24-450 ELU26-450 0.47 12 18 450 0.012 0.3 5.63 143
    ELU24-500 ELU26-500 0.47 12 20 500 0.012 0.3 6.54 166
    ELU24-550 ELU26-550 0.47 12 22 550 0.012 0.3 7.13 181
    ELU24-610 ELU26-610 0.47 12 24 610 0.012 0.3 7.64 194
    ELU24-750 ELU26-750 0.47 12 30 750 0.012 0.3 9.41 239
    ELU24-1000 ELU26-1000 0.47 12 39 1000 0.012 0.3 12.52 318
