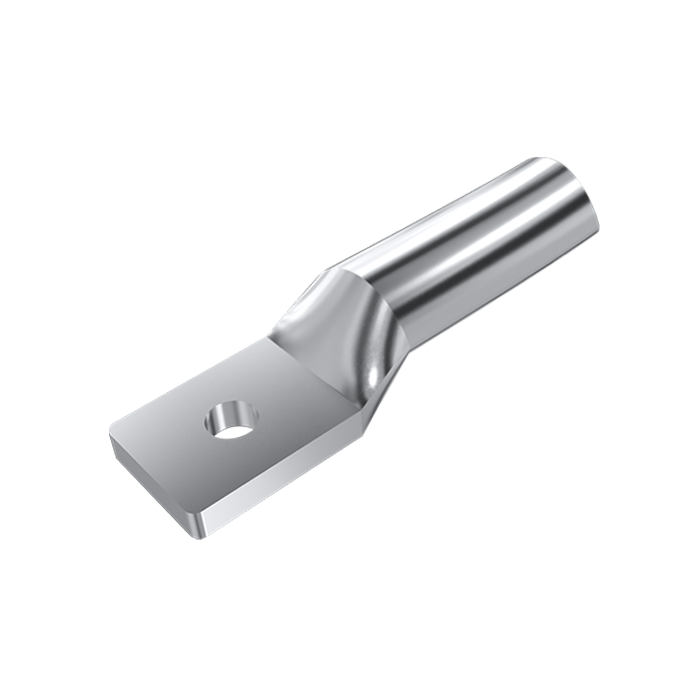

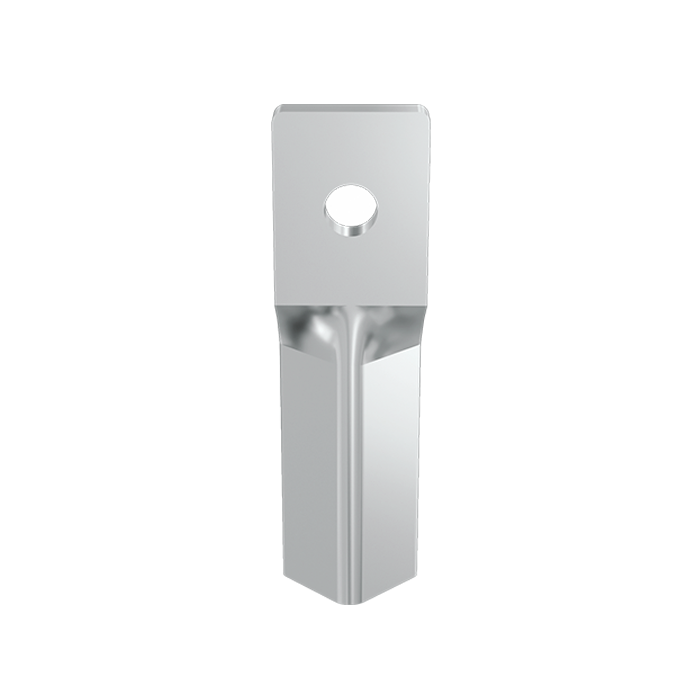

Aluminium 4 Core Solid Section Cable Lugs
Premium Aluminium 4 Core Solid Section Cable Lugs engineered for secure cable termination in electrical and power distribution systems. Manufactured from high-quality aluminium, these lugs offer superior conductivity, strong mechanical strength, corrosion resistance, and dependable long-term performance for industrial and commercial applications.
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Natural Finish |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|
| E | D | B | P | J | ||
| ZALT12012-4 | 120 | 12 | 31 | 52 | 38 | 103 |
| ZALT18512-4 | 185 | 12 | 35 | 60 | 40 | 116 |
| ZALT24012-4 | 240 | 12 | 35 | 63 | 40 | 123 |
