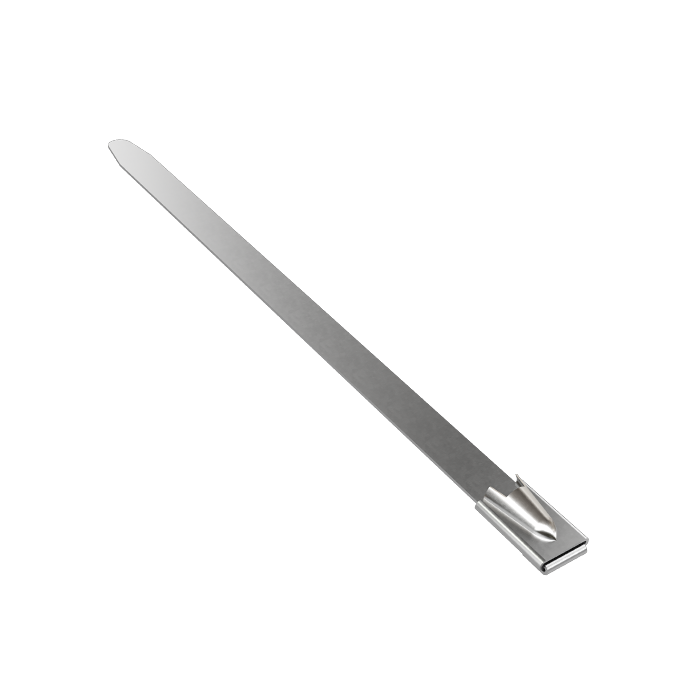

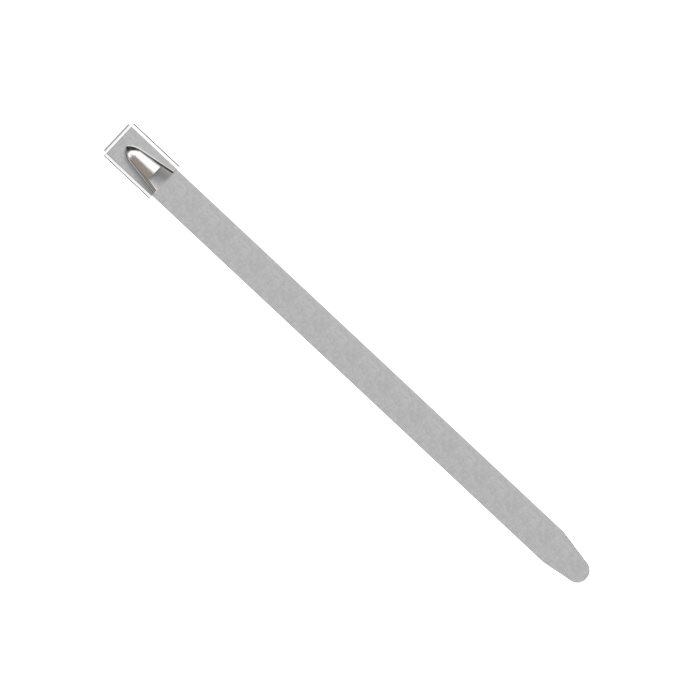

Roller Ball Lock Type Steel Cable Ties Uncoated
Roller Ball Lock Type Steel Cable Ties Uncoated - Image 2
Roller Ball Lock Type Steel Cable Ties Uncoated - Image 3

Roller Ball Lock Type Steel Cable Ties Uncoated

Category:

Designed for demanding applications, these uncoated stainless steel cable ties feature a self-locking roller ball mechanism that ensures secure fastening, high tensile strength, and reliable performance in industrial, marine, and outdoor environments.

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material 304 & 316 Grade Non Magnetic Stainless Steel
    Finish Epoxy Coated
    Temperature -60˚C To +300˚C

    Technical Specifications

    PART CODE AS PER STAINLESS STEEL GRADE WIDTH LENGTH THICKNESS MAX. LOOP DIAMETER MAX. LOOP TENSILE STRENGTH PACKAGE QUANTITY
    SS304 SS316 INCH MM INCH MM INCH MM INCH MM N LBS PCS
    EBU14-100 EBU16-100 0.18 4.6 4 100 0.01 0.25 0.94 24
    EBU14-127 EBU16-127 0.18 4.6 5 127 0.01 0.25 1.02 26
    EBU14-150 EBU16-150 0.18 4.6 6 150 0.01 0.25 1.57 40
    EBU14-200 EBU16-200 0.18 4.6 8 200 0.01 0.25 2.2 56
    EBU14-260 EBU16-260 0.18 4.6 10 260 0.01 0.25 2.95 75
    EBU14-300 EBU16-300 0.18 4.6 12 300 0.01 0.25 3.46 88
    EBU14-360 EBU16-360 0.18 4.6 14 360 0.01 0.25 4.21 107
    EBU14-400 EBU16-400 0.18 4.6 16 400 0.01 0.25 4.53 115 667 150 100/BAG
    EBU14-450 EBU16-450 0.18 4.6 18 450 0.01 0.25 5.31 135
    EBU14-520 EBU16-520 0.18 4.6 20 520 0.01 0.25 6.22 158
    EBU14-550 EBU16-550 0.18 4.6 22 550 0.01 0.25 6.38 162
    EBU14-620 EBU16-620 0.18 4.6 24 620 0.01 0.25 7.48 190
    EBU14-680 EBU16-680 0.18 4.6 27 680 0.01 0.25 7.87 200
    EBU14-840 EBU16-840 0.18 4.6 33 840 0.01 0.25 10.24 260
    EBU14-1000 EBU16-1000 0.18 4.6 39 1000 0.01 0.25 12.24 311
    PART CODE AS PER STAINLESS STEEL GRADE WIDTH LENGTH THICKNESS MAX. LOOP DIAMETER MAX. LOOP TENSILE STRENGTH PACKAGE QUANTITY
    SS304 SS316 INCH MM INCH MM INCH MM INCH MM N LBS PCS
    EBU24-100 EBU26-100 0.31 7.9 4 100 0.01 0.25 0.94 24
    EBU24-127 EBU26-127 0.31 7.9 5 127 0.01 0.25 1.02 26
    EBU24-150 EBU26-150 0.31 7.9 6 150 0.01 0.25 1.57 40
    EBU24-200 EBU26-200 0.31 7.9 8 200 0.01 0.25 2.2 56
    EBU24-260 EBU26-260 0.31 7.9 10 260 0.01 0.25 2.95 75
    EBU24-300 EBU26-300 0.31 7.9 12 300 0.01 0.25 3.46 88
    EBU24-360 EBU26-360 0.31 7.9 14 360 0.01 0.25 4.21 107
    EBU24-400 EBU26-400 0.31 7.9 16 400 0.01 0.25 4.53 115 1335 300 100/BAG
    EBU24-450 EBU26-450 0.31 7.9 18 450 0.01 0.25 5.31 135
    EBU24-520 EBU26-520 0.31 7.9 20 520 0.01 0.25 6.22 158
    EBU24-550 EBU26-550 0.31 7.9 22 550 0.01 0.25 6.38 162
    EBU24-620 EBU26-620 0.31 7.9 24 620 0.01 0.25 7.48 190
    EBU24-680 EBU26-680 0.31 7.9 27 680 0.01 0.25 7.87 200
    EBU24-840 EBU26-840 0.31 7.9 33 840 0.01 0.25 10.24 260
    EBU24-1000 EBU26-1000 0.31 7.9 39 1000 0.01 0.25 12.24 311
    PART CODE AS PER STAINLESS STEEL GRADE WIDTH LENGTH THICKNESS MAX. LOOP DIAMETER MAX. LOOP TENSILE STRENGTH PACKAGE QUANTITY
    SS304 SS316 INCH MM INCH MM INCH MM INCH MM N LBS PCS
    EBU34-100 EBU36-100 0.5 12 4 100 0.01 0.3 0.94 24
    EBU34-127 EBU36-127 0.5 12 5 127 0.01 0.3 1.02 26
    EBU34-150 EBU36-150 0.5 12 6 150 0.01 0.3 1.57 40
    EBU34-200 EBU36-200 0.5 12 8 200 0.01 0.3 2.2 56
    EBU34-260 EBU36-260 0.5 12 10 260 0.01 0.3 2.95 75
    EBU34-300 EBU36-300 0.5 12 12 300 0.01 0.3 3.46 88
    EBU34-360 EBU36-360 0.5 12 14 360 0.01 0.3 4.21 107
    EBU34-400 EBU36-400 0.5 12 16 400 0.01 0.3 4.53 115 2000 450 100/BAG
    EBU34-450 EBU36-450 0.5 12 18 450 0.01 0.3 5.31 135
    EBU34-520 EBU36-520 0.5 12 20 520 0.01 0.3 6.22 158
    EBU34-550 EBU36-550 0.5 12 22 550 0.01 0.3 6.38 162
    EBU34-620 EBU36-620 0.5 12 24 620 0.01 0.3 7.48 190
    EBU34-680 EBU36-680 0.5 12 27 680 0.01 0.3 7.87 200
    EBU34-840 EBU36-840 0.5 12 33 840 0.01 0.3 10.24 260
    EBU34-1000 EBU36-1000 0.5 12 39 1000 0.01 0.3 12.24 311
