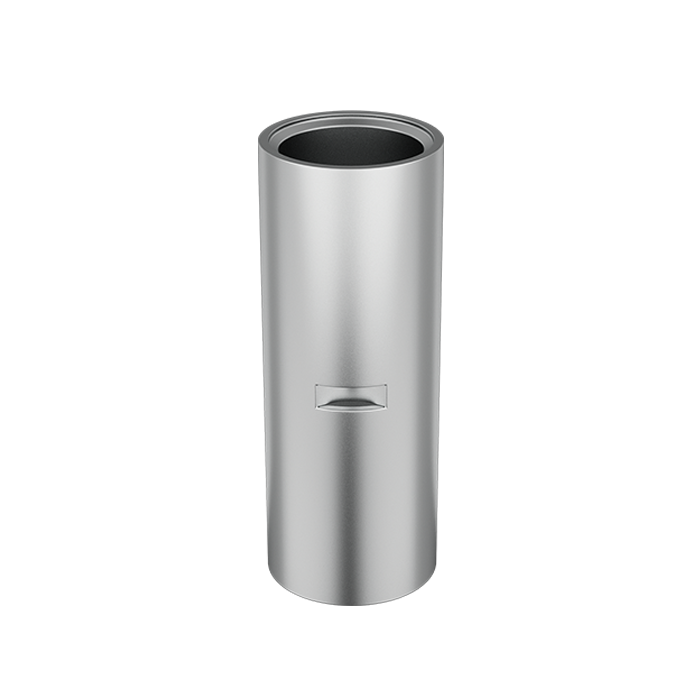

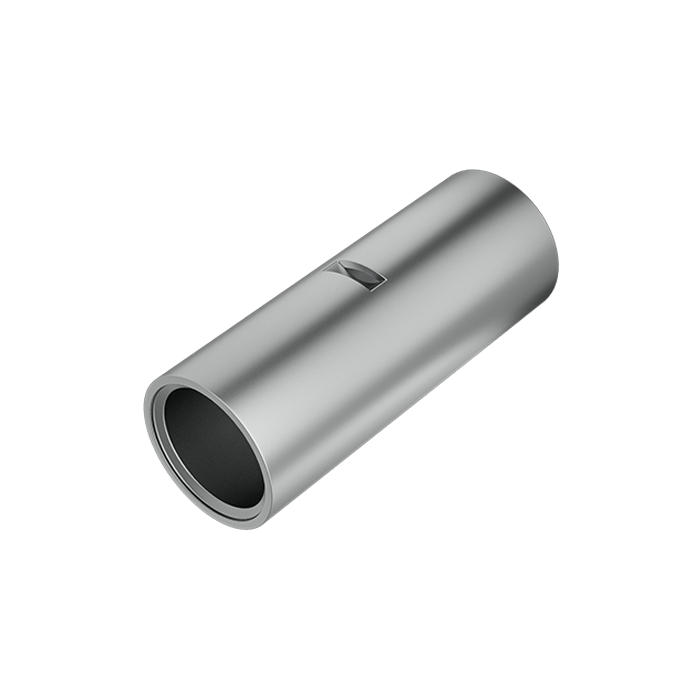

Copper Tube Crimping Through Connectors
High-performance copper through connectors designed for secure cable joining and reliable current transfer in power distribution networks and industrial wiring systems
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | TOTAL LENGTH |
|---|---|---|---|
| A | J | ||
| ZKS25 | 25 | 8.0 | 35.0 |
| ZKS35 | 35 | 9.0 | 35.0 |
| ZKS50 | 50 | 11.0 | 45.0 |
| ZKS70 | 70 | 13.0 | 45.0 |
| ZKS95 | 95 | 15.0 | 45.0 |
| ZKS120 | 120 | 17.0 | 55.0 |
| ZKS150 | 150 | 19.0 | 65.0 |
| ZKS185 | 180 | 21.0 | 70.0 |
| ZKS240 | 240 | 24.0 | 70.0 |
| ZKS300 | 300 | 24.5 | 75.0 |
| ZKS400 | 400 | 30.0 | 108.0 |
| ZKS500 | 500 | 33.0 | 135.0 |
| ZKS630 | 630 | 39.0 | 170.0 |
