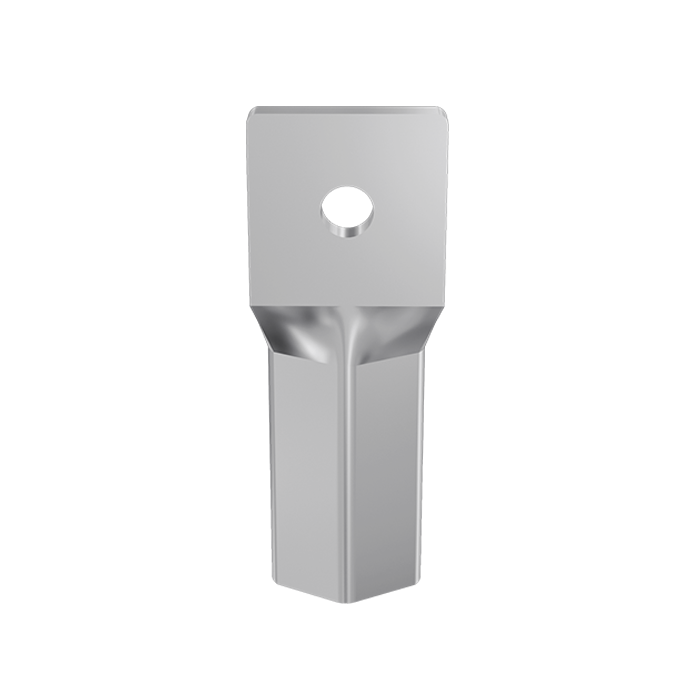

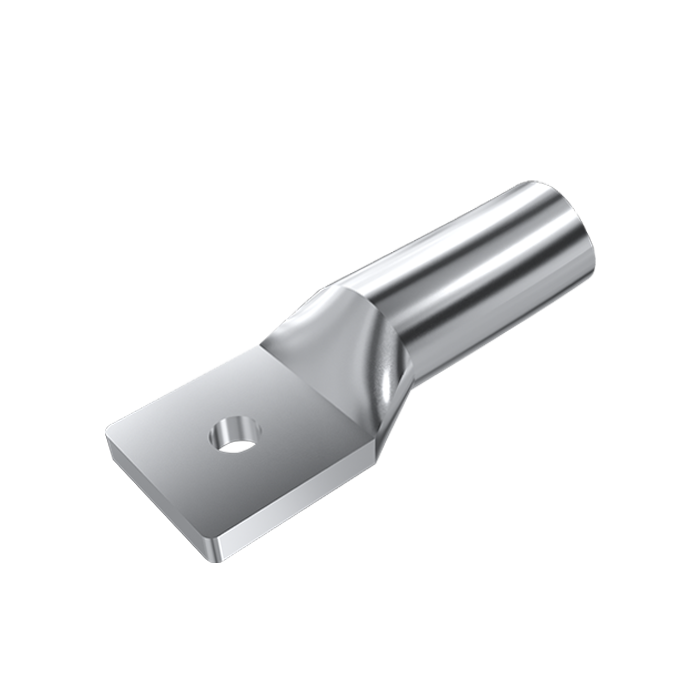

Aluminium 3 Core Solid Section Cable Lugs
High-quality Aluminium 3 Core Solid Section Cable Lugs designed for efficient and reliable cable termination in electrical systems. Manufactured from premium-grade aluminium, these lugs provide excellent conductivity, high mechanical strength, and long-lasting performance for industrial and utility applications.
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Natural Finish |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|
| E | D | B | P | J | ||
| ZALT12010-3 | 120 | 10 | 31 | 52 | 38 | 103 |
| ZALT12012-3 | 120 | 12 | 31 | 52 | 38 | 103 |
| ZALT18512-3 | 185 | 12 | 35 | 60 | 40 | 116 |
| ZALT24012-3 | 240 | 12 | 40 | 63 | 40 | 123 |
