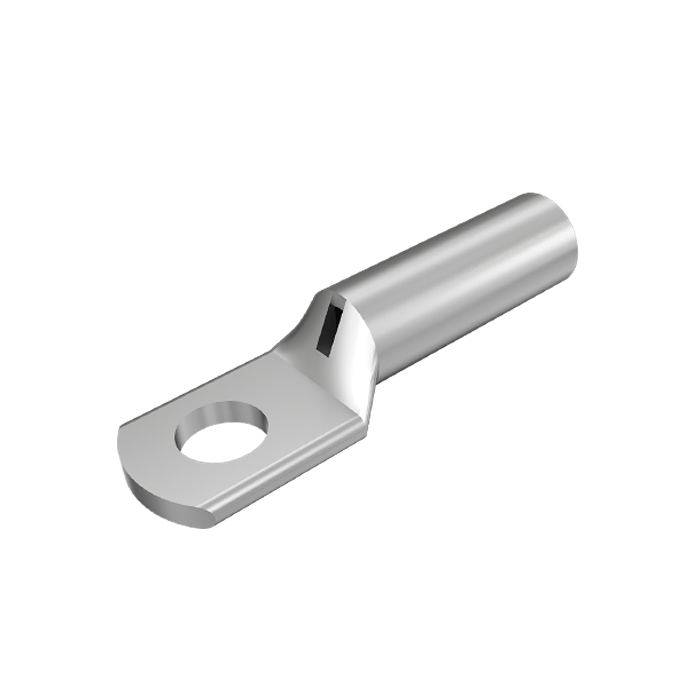

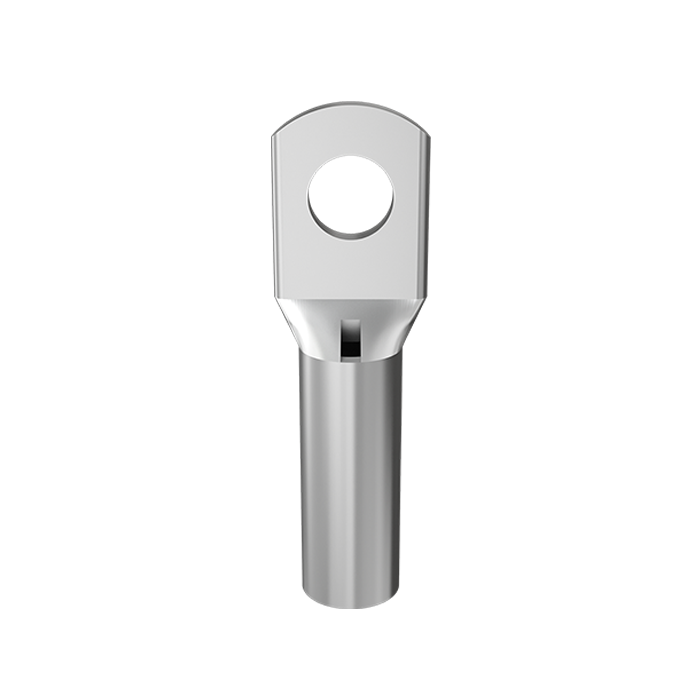

Copper Tube Crimping Lugs Long Barrel
Copper Tube Crimping Lugs Long Barrel - Image 2
Copper Tube Crimping Lugs Long Barrel - Image 3

Copper Tube Crimping Lugs Long Barrel

Category:

Long barrel copper lugs provide increased crimping area, superior conductivity, and enhanced mechanical strength for transformers, switchgear, and industrial installations

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    MTSL9510 95 10.3 15.5 30.5 34.7 34.3 80.0
    MTSL9512 95 12.8 15.5 30.5 34.7 34.3 80.0
    MTSL9514 95 14.5 15.5 30.5 34.7 34.3 80.0
    MTSL9516 95 16.5 15.5 30.5 34.7 34.3 80.0
    MTSL9518 95 18.8 15.5 30.5 34.7 34.3 80.0
    MTSL12010 120 10.3 17.6 34 34.5 42 88.5
    MTSL12012 120 12.8 17.6 34 34.5 42 88.5
    MTSL12014 120 14.5 17.6 34 34.5 42 88.5
    MTSL12016 120 16.5 17.6 34 34.5 42 88.5
    MTSL12018 120 18.8 17.6 34 34.5 42 88.5
    MTSL15010 150 10.3 19 37 40 42 96.0
    MTSL15012 150 12.8 19 37 40 42 96.0
    MTSL15014 150 14.5 19 37 40 42 96.0
    MTSL15016 150 16.5 19 37 40 42 96.0
    MTSL15018 150 18.8 19 37 40 42 96.0
    MTSL15020 150 21 21 37 40 42 96.0
    MTSL9510 95 10.3 15.5 30.5 34.7 34.3 80.0
    MTSL9512 95 12.8 15.5 30.5 34.7 34.3 80.0
    MTSL9514 95 14.5 15.5 30.5 34.7 34.3 80.0
    MTSL9516 95 16.5 15.5 30.5 34.7 34.3 80.0
    MTSL9518 95 18.8 15.5 30.5 34.7 34.3 80.0
    MTSL12010 120 10.3 17.6 34 34.5 42 88.5
    MTSL12012 120 12.8 17.6 34 34.5 42 88.5
    MTSL12014 120 14.5 17.6 34 34.5 42 88.5
    MTSL12016 120 16.5 17.6 34 34.5 42 88.5
    MTSL12018 120 18.8 17.6 34 34.5 42 88.5
    MTSL15010 150 10.3 19 37 40 42 96.0
    MTSL15012 150 12.8 19 37 40 42 96.0
    MTSL15014 150 14.5 19 37 40 42 96.0
    MTSL15016 150 16.5 19 37 40 42 96.0
    MTSL15018 150 18.8 19 37 40 42 96.0
    MTSL15020 150 21 21 37 40 42 96.0
    MTSL40024 400 24.9 33 60.5 54 58 130.0
    MTSL50030 500 30.9 40 72 56 62 140.0
