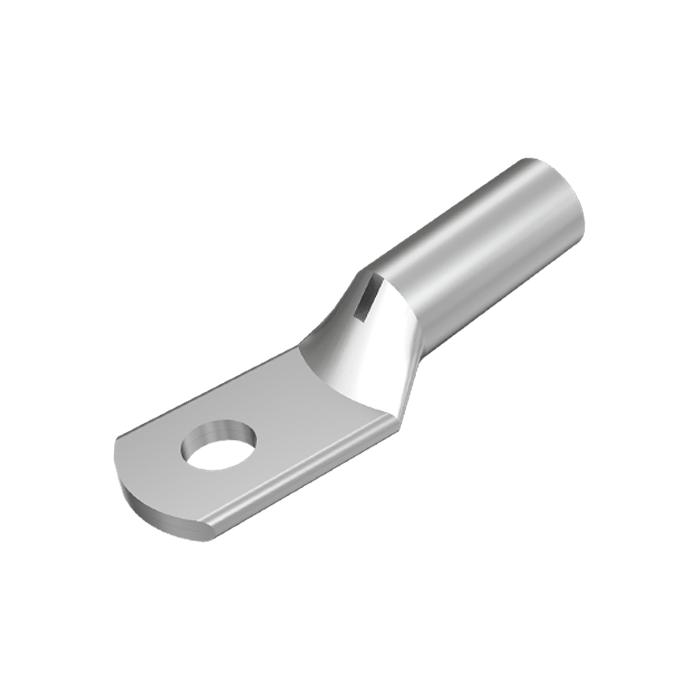

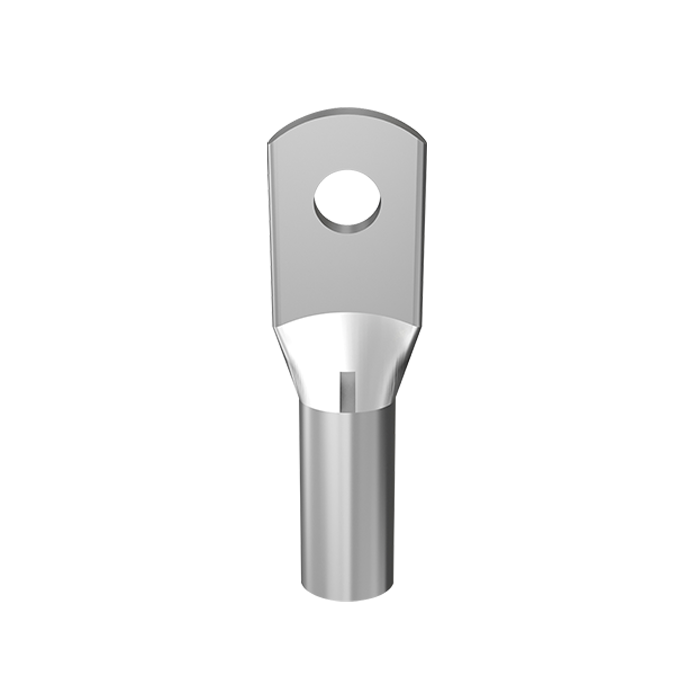

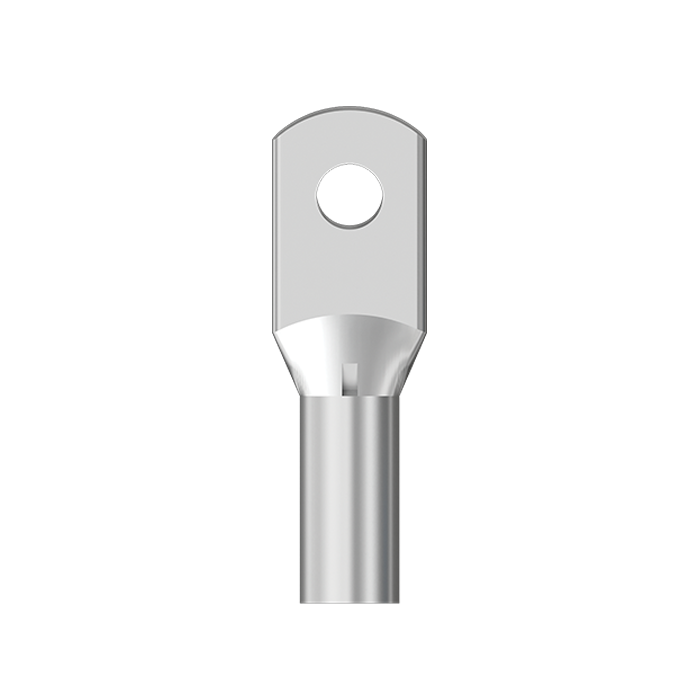

Copper Tube Crimping Lugs One Hole
High-quality copper lugs designed for secure cable termination, excellent conductivity, and long-lasting performance in switchgear and power distribution systems
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE E |
BARREL ID A |
PALM WIDTH D |
BARREL LENGTH B |
PAD LENGTH P |
TOTAL LENGTH J |
|---|---|---|---|---|---|---|---|
| RU/RUT 2.5-3-2.6 | 2.5 | 3.2 | 2.6 | 7 | 10 | 12 | 28 |
| RU/RUT 2.5-4-2.6 | 2.5 | 4.3 | 2.6 | 8 | 10 | 12 | 28 |
| RU/RUT 2.5-5-2.6 | 2.5 | 5.3 | 2.6 | 10 | 10 | 12 | 28 |
| RU/RUT 2.5-6-2.6 | 2.5 | 6.4 | 2.6 | 12 | 10 | 14 | 30 |
| RU/RUT 4-4-3 | 4 | 4.3 | 3 | 8 | 12 | 16 | 32 |
| RU/RUT 4-5-3 | 4 | 5.3 | 3 | 10 | 12 | 16 | 32 |
| RU/RUT 4-6-3 | 4 | 6.4 | 3 | 12 | 12 | 16 | 32 |
| RU/RUT 6-4-4 | 6 | 4.3 | 4 | 9 | 12 | 16 | 32 |
| RU/RUT 6-5-4 | 6 | 5.3 | 4 | 10 | 12 | 16 | 32 |
| RU/RUT 6-6-4 | 6 | 6.4 | 4 | 12 | 12 | 16 | 32 |
| RU/RUT 10-5-5 | 10 | 5.3 | 5 | 11 | 14 | 20 | 40 |
| RU/RUT 10-6-5 | 10 | 6.4 | 5 | 14 | 14 | 20 | 40 |
| RU/RUT 10-8-5 | 10 | 8.4 | 5 | 16 | 14 | 20 | 40 |
| RU/RUT 16-6-6 | 16 | 6.4 | 6 | 14 | 14 | 20 | 40 |
| RU/RUT 16-8-6 | 16 | 8.4 | 6 | 16 | 14 | 20 | 40 |
| RU/RUT 25-6-7 | 25 | 6.4 | 7 | 15 | 20 | 20 | 45 |
| RU/RUT 25-8-7 | 25 | 8.4 | 7 | 16 | 20 | 20 | 45 |
| RU/RUT 25-10-7 | 25 | 10.5 | 7 | 20 | 20 | 20 | 50 |
| RU/RUT 25-6-8 | 25 | 6.4 | 8 | 16 | 20 | 22 | 50 |
| RU/RUT 25-8-8 | 25 | 8.4 | 8 | 16 | 20 | 22 | 50 |
| RU/RUT 25-10-8 | 25 | 10.5 | 8 | 20 | 20 | 22 | 50 |
| RU/RUT 35-8-9 | 35 | 8.4 | 9 | 18 | 24 | 22 | 60 |
| RU/RUT 35-10-9 | 35 | 10.5 | 9 | 20 | 24 | 22 | 60 |
| RU/RUT 35-12-9 | 35 | 13 | 9 | 22 | 24 | 25 | 60 |
| RU/RUT 35-8-10 | 35 | 8.4 | 10 | 20 | 24 | 25 | 63 |
| RU/RUT 35-10-10 | 35 | 10.5 | 10 | 20 | 24 | 25 | 63 |
| RU/RUT 35-12-10 | 35 | 13 | 10 | 22 | 24 | 25 | 63 |
| RU/RUT 50-8-11 | 50 | 8.4 | 11 | 20 | 24 | 25 | 63 |
| RU/RUT 50-10-11 | 50 | 10.5 | 11 | 22 | 24 | 25 | 63 |
| RU/RUT 50-12-11 | 50 | 13 | 11 | 24 | 24 | 25 | 63 |
| RU/RUT 50-8-12 | 50 | 8.4 | 12 | 22 | 24 | 26 | 65 |
| RU/RUT 50-10-12 | 50 | 10.5 | 12 | 22 | 24 | 26 | 65 |
| RU/RUT 50-12-12 | 50 | 13 | 12 | 24 | 24 | 26 | 65 |
| RU/RUT 70-8-13 | 70 | 8.4 | 13 | 24 | 26 | 27 | 65 |
| RU/RUT 70-10-13 | 70 | 10.5 | 13 | 24 | 26 | 27 | 65 |
| RU/RUT 70-12-13 | 70 | 13 | 13 | 24 | 26 | 27 | 65 |
| RU/RUT 95-10-15 | 95 | 10.5 | 15 | 28 | 32 | 27 | 75 |
| RU/RUT 95-12-15 | 95 | 13 | 15 | 28 | 32 | 27 | 75 |
| RU/RUT 95-10-16 | 95 | 10.5 | 16 | 30 | 32 | 27 | 75 |
| RU/RUT 95-12-16 | 95 | 13 | 16 | 30 | 32 | 27 | 75 |
| RU/RUT 120-12-17 | 120 | 13 | 17 | 34 | 32 | 34 | 81 |
| RU/RUT 120-16-17 | 120 | 17 | 17 | 34 | 32 | 34 | 81 |
| RU/RUT 120-12-18 | 120 | 13 | 18 | 35 | 34 | 34 | 85 |
| RU/RUT 120-16-18 | 120 | 17 | 18 | 35 | 34 | 34 | 85 |
| RU/RUT 150-12-19 | 150 | 13 | 19 | 36 | 34 | 34 | 90 |
| RU/RUT 150-16-19 | 150 | 17 | 19 | 36 | 34 | 34 | 90 |
| RU/RUT 150-12-20 | 150 | 13 | 20 | 38 | 34 | 34 | 90 |
| RU/RUT 150-16-20 | 150 | 17 | 20 | 38 | 34 | 34 | 90 |
| RU/RUT 185-12-21 | 185 | 13 | 21 | 40 | 38 | 41 | 95 |
| RU/RUT 185-16-21 | 185 | 17 | 21 | 40 | 38 | 41 | 95 |
| RU/RUT 185-20-21 | 185 | 21 | 21 | 40 | 38 | 41 | 95 |
| RU/RUT 185-16-23 | 185 | 17 | 23 | 45 | 38 | 41 | 105 |
| RU/RUT 185-20-23 | 185 | 21 | 23 | 48 | 38 | 41 | 105 |
| RU/RUT 240-16-24 | 240 | 17 | 24 | 48 | 38 | 41 | 105 |
| RU/RUT 240-20-24 | 240 | 21 | 24 | 48 | 38 | 41 | 105 |
| RU/RUT 300-16-27 | 300 | 17 | 27 | 50 | 38 | 41 | 105 |
| RU/RUT 300-20-27 | 300 | 21 | 27 | 50 | 38 | 41 | 105 |
