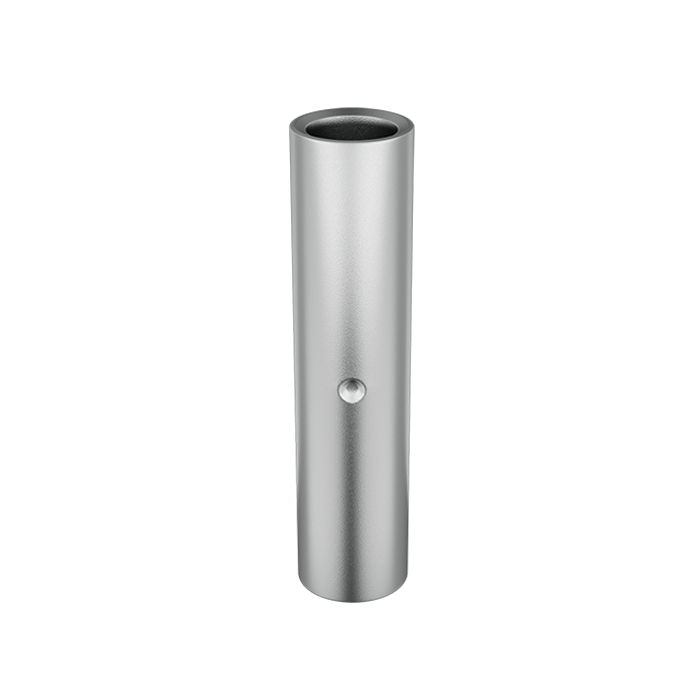

Copper Tube Crimping Through Connectors ZDINC Standard 46267
DIN 46267 compliant copper through connectors designed for secure cable joining, excellent conductivity, and long-term reliability in industrial applications
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | TOTAL LENGTH |
|---|---|---|---|
| A | J | ||
| ZDINC6 | 6 | 3.8 | 30 |
| ZDINC10 | 10 | 4.5 | 30 |
| ZDINC16 | 16 | 5.5 | 50 |
| ZDINC25 | 25 | 7 | 50 |
| ZDINC35 | 35 | 8.2 | 50 |
| ZDINC50 | 50 | 10 | 56 |
| ZDINC70 | 70 | 11.5 | 56 |
| ZDINC95 | 95 | 13.5 | 70 |
| ZDINC120 | 120 | 15.5 | 70 |
| ZDINC150 | 150 | 17 | 80 |
| ZDINC185 | 185 | 19 | 85 |
| ZDINC240 | 240 | 21.5 | 90 |
| ZDINC300 | 300 | 24.5 | 100 |
| ZDINC400 | 400 | 27.5 | 150 |
| ZDINC500 | 500 | 31 | 160 |
| ZDINC625 | 625 | 34.5 | 160 |
