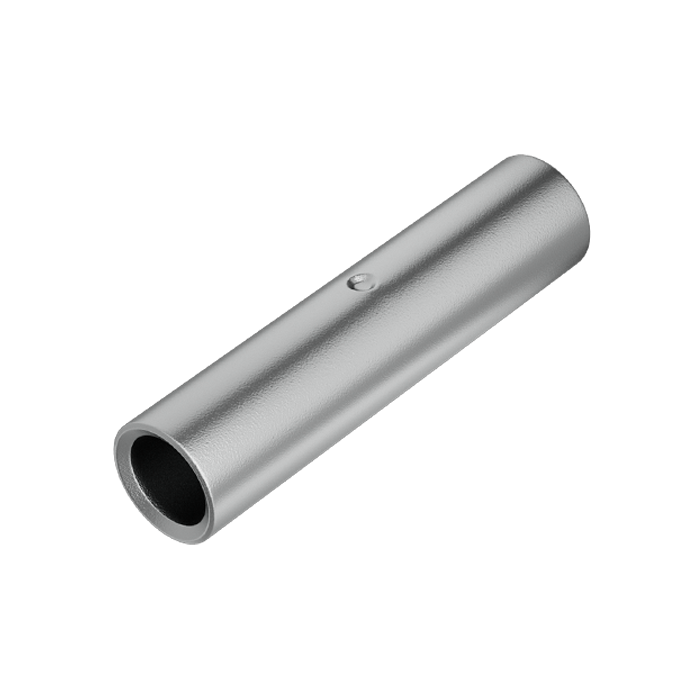

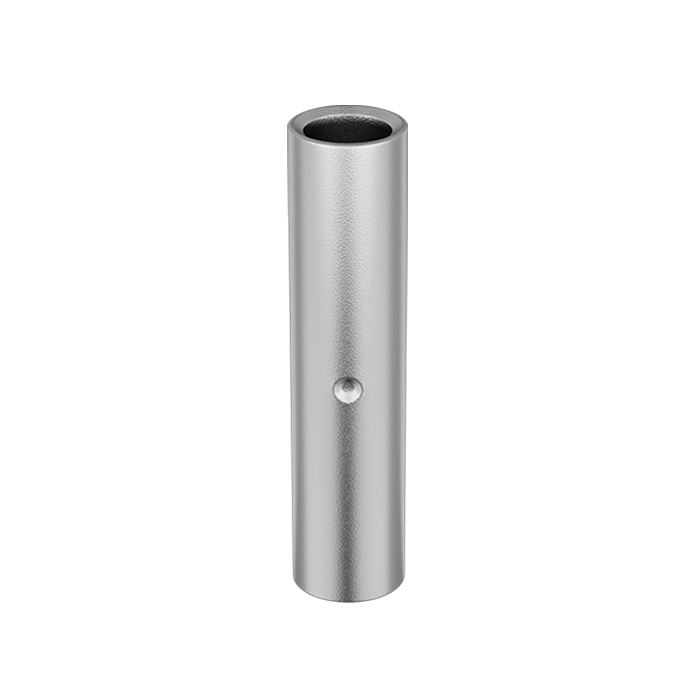

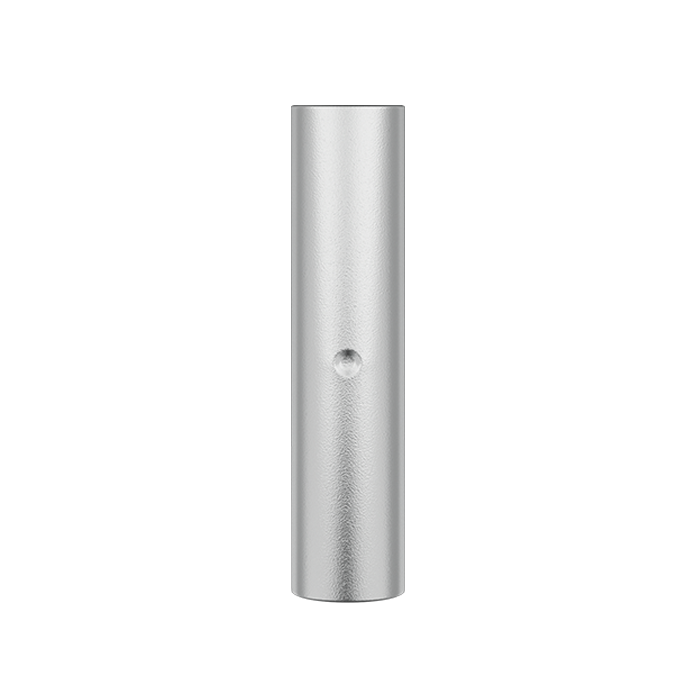

Copper Tube Crimping Through Connectors
Precision-engineered copper through connectors designed for efficient cable joining and dependable electrical continuity in power distribution systems and industrial wiring applications
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | TOTAL LENGTH |
|---|---|---|---|
| A | J | ||
| ZNC1.5 | 1.5 | 1.8 | 25 |
| ZNC2.5 | 2.5 | 2.3 | 25 |
| ZNC4 | 4 | 3 | 25 |
| ZNC6 | 6 | 4 | 25 |
| ZNC10 | 10 | 4.4 | 30 |
| ZNC16 | 16 | 5.5 | 35 |
| ZNC25 | 25 | 6.8 | 40 |
| ZNC35 | 35 | 8.2 | 45 |
| ZNC50 | 50 | 9.5 | 50 |
| ZNC70 | 70 | 11.2 | 55 |
| ZNC95 | 95 | 13.4 | 60 |
| ZNC120 | 120 | 15 | 65 |
| ZNC150 | 150 | 16.5 | 70 |
| ZNC185 | 185 | 19 | 80 |
| ZNC240 | 240 | 21 | 90 |
| ZNC300 | 300 | 23.5 | 100 |
| ZNC400 | 400 | 27 | 110 |
| ZNC500 | 500 | 31 | 140 |
| ZNC630 | 630 | 34 | 160 |
