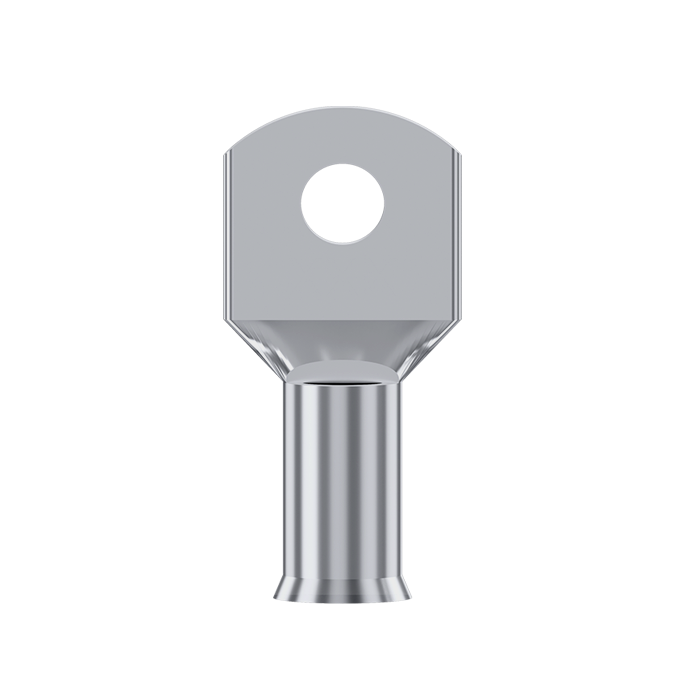

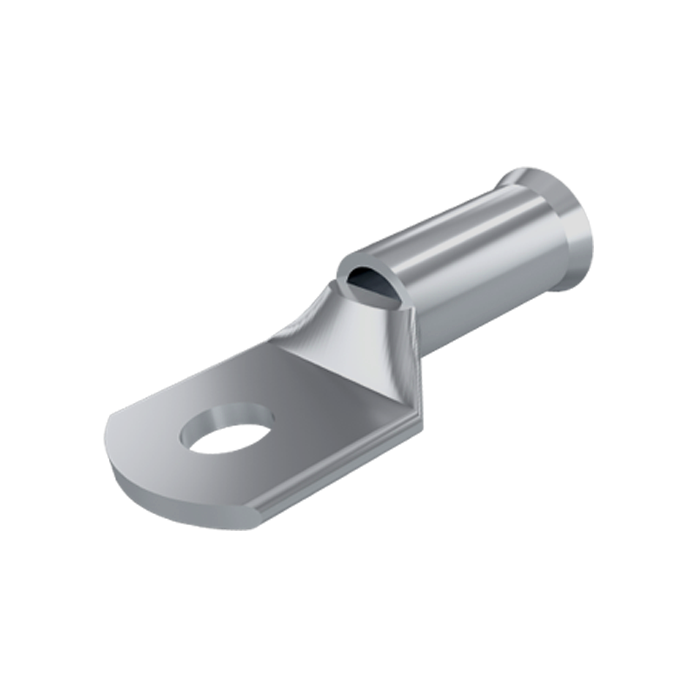

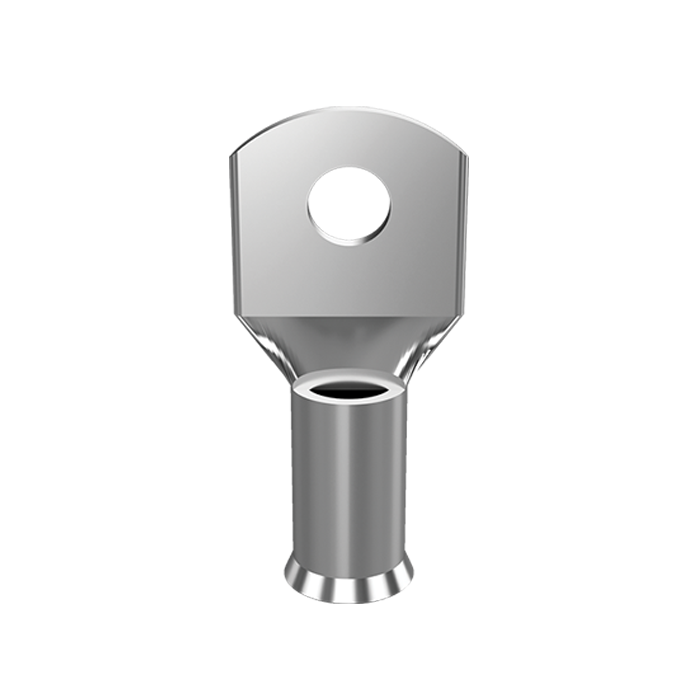

Copper Tube Crimping Lugs One Hole
High-performance copper lugs engineered for efficient cable termination and long-term reliability in transformers, switchgear, electrical panels, and power distribution applications
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| DX1.53 | 1.5 | 3.2 | 1.8 | 8.0 | 5 | 9 | 16 |
| DX1.54 | 1.5 | 4.2 | 1.8 | 8.0 | 5 | 9 | 16 |
| DX1.55 | 1.5 | 5.2 | 1.8 | 8.0 | 5 | 9 | 16 |
| DX2.53 | 2.5 | 3.2 | 2.4 | 8.0 | 7 | 9 | 18 |
| DX2.54 | 2.5 | 4.2 | 2.4 | 8.0 | 7 | 9 | 18 |
| DX2.55 | 2.5 | 5.2 | 2.4 | 10.0 | 7 | 11 | 20 |
| DX2.56 | 2.5 | 6.5 | 2.4 | 10.0 | 7 | 11 | 20 |
| DX44 | 4 | 4.2 | 3.1 | 10.0 | 7 | 11 | 20 |
| DX45 | 4 | 5.2 | 3.1 | 10.0 | 7 | 11 | 20 |
| DX46 | 4 | 6.5 | 3.1 | 10.0 | 7 | 11 | 20 |
| DX48 | 4 | 8.2 | 3.1 | 12.0 | 7 | 15 | 24 |
| DX410 | 4 | 10.2 | 3.1 | 15.0 | 7 | 19 | 28 |
| DX64 | 6 | 4.2 | 3.8 | 10.0 | 9 | 11 | 23 |
| DX65 | 6 | 5.2 | 3.8 | 10.0 | 9 | 11 | 23 |
| DX66 | 6 | 6.5 | 3.8 | 12.0 | 9 | 15 | 27 |
| DX68 | 6 | 8.4 | 3.8 | 12.0 | 9 | 15 | 27 |
| DX610 | 6 | 10.2 | 3.8 | 15.0 | 9 | 19 | 31 |
| DX104 | 10 | 4.2 | 4.5 | 12 | 10 | 11 | 24 |
| DX105 | 10 | 5.2 | 4.5 | 12 | 10 | 11 | 24 |
| DX106 | 10 | 6.5 | 4.5 | 12 | 10 | 13 | 26 |
| DX108 | 10 | 8.4 | 4.5 | 12 | 12 | 15 | 30 |
| DX1010 | 10 | 10.4 | 4.7 | 16 | 13 | 18 | 35 |
| DX1012 | 10 | 13.0 | 4.7 | 18 | 12 | 23 | 39 |
| DX165 | 16 | 5.2 | 5.5 | 11 | 15 | 14 | 33 |
| DX166 | 16 | 6.5 | 5.5 | 11 | 15 | 14 | 33 |
| DX168 | 16 | 8.4 | 5.5 | 12 | 15 | 16 | 34 |
| DX1610 | 16 | 10.5 | 5.5 | 17 | 15 | 20 | 39 |
| DX1612 | 16 | 13.0 | 5.5 | 17 | 16 | 24 | 43 |
| DX255 | 25 | 5.2 | 7 | 13 | 13 | 14 | 30 |
| DX256 | 25 | 6.5 | 7 | 13 | 13 | 14 | 30 |
| DX258 | 25 | 8.4 | 7 | 14.5 | 14 | 16 | 34 |
| DX2510 | 25 | 10.5 | 7 | 16 | 14 | 21 | 39 |
| DX2512 | 25 | 13.0 | 7 | 18 | 18 | 21 | 43 |
| DX356 | 35 | 6.5 | 8.6 | 16 | 18 | 16 | 39 |
| DX358 | 35 | 8.4 | 8.6 | 16 | 18 | 16 | 39 |
| DX3510 | 35 | 10.5 | 8.6 | 16 | 18 | 21 | 43 |
| DX3512 | 35 | 13.0 | 8.6 | 18 | 18 | 21 | 43 |
| DX506 | 50 | 6.5 | 9.6 | 17 | 22 | 18 | 46 |
| DX508 | 50 | 8.4 | 9.6 | 17 | 22 | 18 | 46 |
| DX5010 | 50 | 10.5 | 9.6 | 17 | 25 | 18 | 49 |
| DX5012 | 50 | 13.0 | 9.6 | 17 | 23 | 24 | 55 |
| CAT. NO | CABLE mm2 | STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| DX706 | 70 | 6.5 | 11.2 | 22 | 23 | 24 | 53 |
| DX708 | 70 | 8.4 | 11.2 | 22 | 23 | 22 | 52 |
| DX7010 | 70 | 10.5 | 11.2 | 22 | 23 | 22 | 52 |
| DX7012 | 70 | 13.0 | 11.2 | 22 | 23 | 24 | 53 |
| DX7014 | 70 | 15.0 | 11.2 | 25 | 25 | 24 | 55 |
| DX958 | 95 | 8.4 | 13.5 | 25 | 30 | 26 | 63 |
| DX9510 | 95 | 10.5 | 13.5 | 25 | 30 | 26 | 63 |
| DX9512 | 95 | 13.0 | 13.5 | 25 | 30 | 26 | 63 |
| DX9514 | 95 | 15.0 | 13.5 | 25 | 32 | 28 | 67 |
| DX9516 | 95 | 17.0 | 13.5 | 25 | 32 | 29 | 71 |
| DX1208 | 120 | 8.4 | 15 | 28 | 25 | 24 | 59 |
| DX12010 | 120 | 10.5 | 15 | 28 | 25 | 24 | 59 |
| DX12012 | 120 | 13.0 | 15 | 28 | 25 | 24 | 59 |
| DX12014 | 120 | 15.0 | 15 | 28 | 28 | 26 | 64 |
| DX12016 | 120 | 17.0 | 15 | 28 | 25 | 32 | 66 |
| DX12020 | 120 | 21.0 | 15 | 28 | 25 | 35 | 70 |
| DX1508 | 150 | 8.4 | 16.5 | 30 | 27 | 28 | 65 |
| DX15010 | 150 | 10.5 | 16.5 | 30 | 27 | 28 | 65 |
| DX15012 | 150 | 13.0 | 16.5 | 30 | 27 | 27 | 64 |
| DX15014 | 150 | 15.0 | 16.5 | 30 | 27 | 28 | 65 |
| DX15016 | 150 | 17.0 | 16.5 | 30 | 27 | 32 | 69 |
| DX15020 | 150 | 21.0 | 16.5 | 30 | 29 | 37 | 77 |
| DX18510 | 185 | 10.5 | 19 | 34 | 30 | 28 | 68 |
| DX18512 | 185 | 13.0 | 19 | 34 | 30 | 27 | 67 |
| DX18514 | 185 | 15.0 | 19 | 34 | 30 | 28 | 68 |
| DX18516 | 185 | 17.0 | 19 | 34 | 29 | 32 | 72 |
| DX18520 | 185 | 21.0 | 19 | 34 | 29 | 35 | 75 |
| DX24010 | 240 | 10.5 | 21 | 38 | 33 | 30 | 77 |
| DX24012 | 240 | 13.0 | 21 | 38 | 33 | 30 | 77 |
| DX24014 | 240 | 15.0 | 21 | 38 | 33 | 30 | 77 |
| DX24016 | 240 | 17.0 | 21 | 38 | 33 | 40 | 85 |
| DX24020 | 240 | 21.0 | 21 | 38 | 35 | 38 | 85 |
| DX30010 | 300 | 10.5 | 24.5 | 44 | 42 | 37 | 95 |
| DX30012 | 300 | 13.0 | 24.5 | 44 | 42 | 37 | 95 |
| DX30014 | 300 | 15.0 | 24.5 | 44 | 42 | 37 | 95 |
| DX30016 | 300 | 17.0 | 24.5 | 44 | 42 | 37 | 95 |
| DX30020 | 300 | 21.0 | 24.5 | 44 | 42 | 37 | 95 |
| DX40012 | 400 | 13.0 | 27 | 47 | 44 | 40 | 102 |
| DX40014 | 400 | 15.0 | 27 | 47 | 44 | 40 | 102 |
| DX40016 | 400 | 17.0 | 27 | 47 | 44 | 40 | 102 |
| DX40020 | 400 | 21.0 | 27 | 47 | 44 | 40 | 102 |
