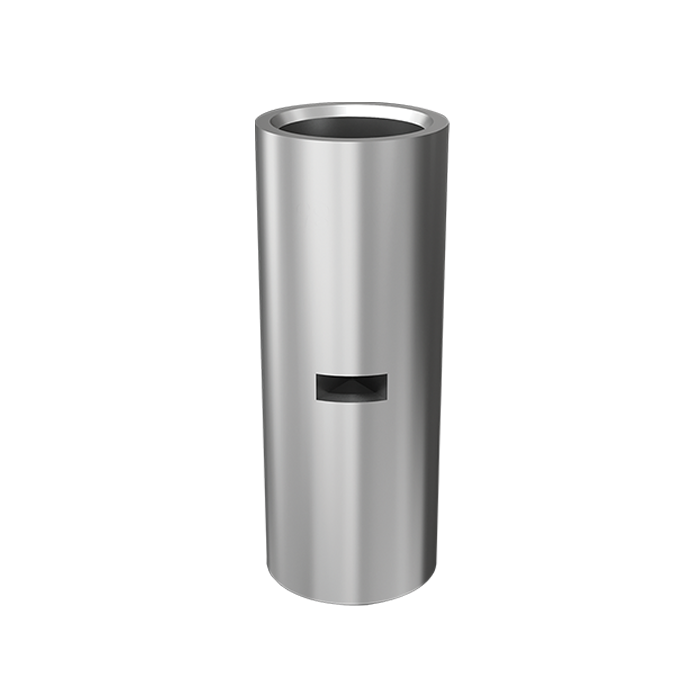

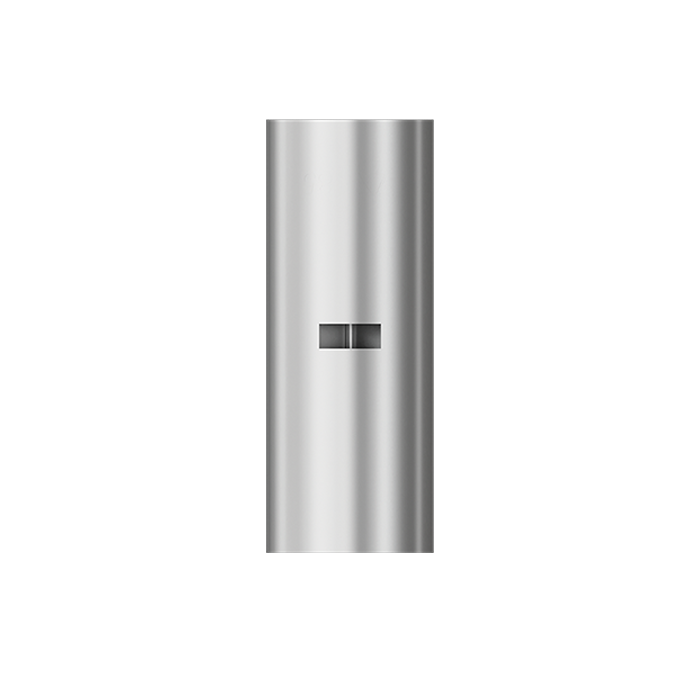

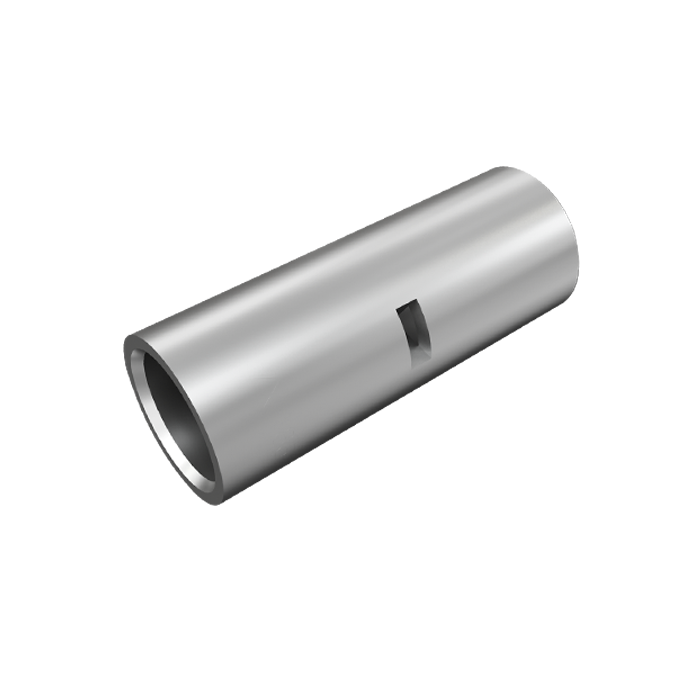

Copper Tube Crimping Through Connectors
Copper through connectors designed for secure conductor joining and superior electrical continuity in power distribution systems, control panels, and industrial installations
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 | BARREL ID | TOTAL LENGTH |
|---|---|---|---|
| A | J | ||
| DB1.5 | 1.5 | 1.8 | 12 |
| DB2.5 | 2.5 | 2.4 | 15 |
| DB4 | 4 | 3.1 | 15 |
| DB6 | 6 | 3.8 | 15 |
| DB10 | 10 | 4.5 | 20 |
| DB16 | 16 | 5.5 | 20 |
| DB25 | 25 | 7.0 | 32 |
| DB35 | 35 | 8.6 | 36 |
| DB50 | 50 | 9.6 | 40 |
| DB70 | 70 | 12.0 | 40 |
| DB95 | 95 | 13.5 | 45 |
| DB120 | 120 | 15.0 | 45 |
| DB150 | 150 | 16.5 | 55 |
| DB185 | 185 | 19.0 | 65 |
| DB240 | 240 | 21.0 | 80 |
