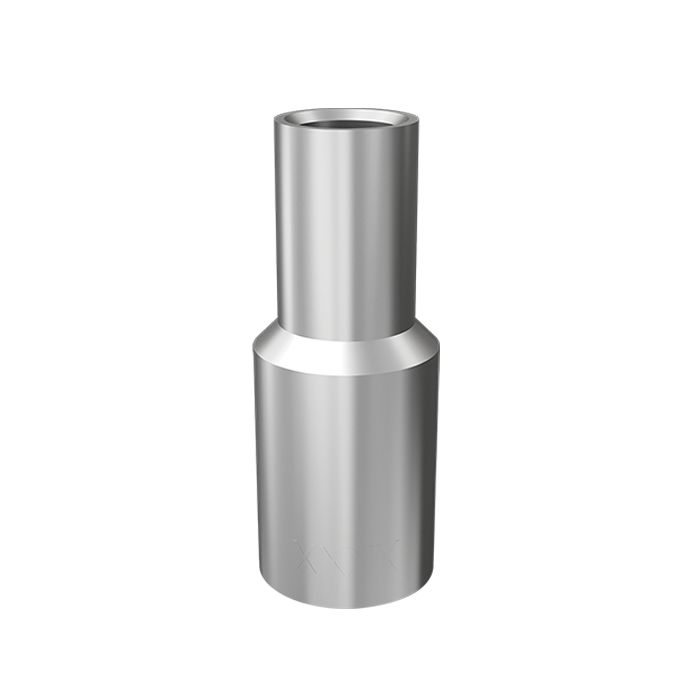

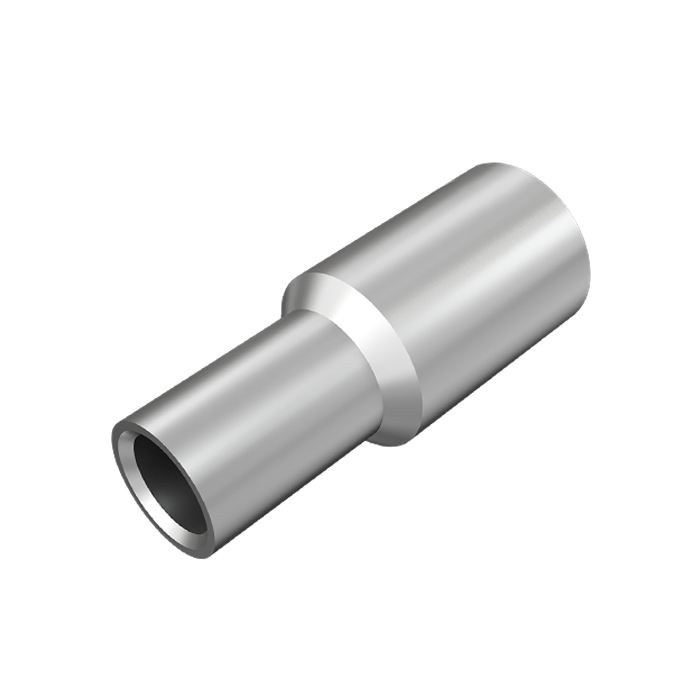

Reducers Through Connectors
Copper reducing connectors designed for secure and efficient joining of different conductor sizes in transformers, switchgear, and power distribution applications
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | BARREL LENGTH | BARREL ID | BARREL LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|
| A | B | A-1 | B-1 | J | ||
| ZKRS50-25 | 50-25 | 11.0 | 20.0 | 8.0 | 16.0 | 38.0 |
| ZKRS50-35 | 50-35 | 11.0 | 24.0 | 9.0 | 25.0 | 55.0 |
| ZKRS70-35 | 70-35 | 13.0 | 24.0 | 9.0 | 25.0 | 60.0 |
| ZKRS70-50 | 70-50 | 13.0 | 24.0 | 11.0 | 20.0 | 50.0 |
| ZKRS95-35 | 95-35 | 15.0 | 25.0 | 9.0 | 25.0 | 60.0 |
| ZKRS95-50 | 95-50 | 15.0 | 25.0 | 11.0 | 20.0 | 55.0 |
| ZKRS95-70 | 95-70 | 15.0 | 25.0 | 13.0 | 25.0 | 60.0 |
| ZKRS120-35 | 120-35 | 17.0 | 31.0 | 9.0 | 25.0 | 65.0 |
| ZKRS120-50 | 120-50 | 17.0 | 31.0 | 11.0 | 20.0 | 60.0 |
| ZKRS120-70 | 120-70 | 17.0 | 31.0 | 13.0 | 25.0 | 65.0 |
| ZKRS120-95 | 120-95 | 17.0 | 31.0 | 15.0 | 31.0 | 70.0 |
| ZKRS150-35 | 150-35 | 19.0 | 31.0 | 9.0 | 25.0 | 65.0 |
| ZKRS150-50 | 150-50 | 19.0 | 31.0 | 11.0 | 20.0 | 60.0 |
| ZKRS150-70 | 150-70 | 19.0 | 31.0 | 13.0 | 25.0 | 65.0 |
| ZKRS150-95 | 150-95 | 19.0 | 31.0 | 15.0 | 31.0 | 70.0 |
| ZKRS150-120 | 150-120 | 19.0 | 31.0 | 17.0 | 31.0 | 70.0 |
| ZKRS185-50 | 185-50 | 21.0 | 31.0 | 11.0 | 25.0 | 65.0 |
| ZKRS185-70 | 185-70 | 21.0 | 31.0 | 13.0 | 25.0 | 65.0 |
| ZKRS185-95 | 185-95 | 21.0 | 31.0 | 15.0 | 31.0 | 71.0 |
| ZKRS185-120 | 185-120 | 21.0 | 31.0 | 17.0 | 31.0 | 70.0 |
| ZKRS185-150 | 185-150 | 21.0 | 31.0 | 19.0 | 31.0 | 70.0 |
| ZKRS240-50 | 240-50 | 24.0 | 31.0 | 11.0 | 30.0 | 70.0 |
| ZKRS240-95 | 240-95 | 24.0 | 31.0 | 15.0 | 31.0 | 70.0 |
| ZKRS240-120 | 240-120 | 24.0 | 31.0 | 17.0 | 31.0 | 70.0 |
| ZKRS240-150 | 240-150 | 24.0 | 31.0 | 19.0 | 31.0 | 70.0 |
| ZKRS240-185 | 240-185 | 24.0 | 31.0 | 21.0 | 31.0 | 70.0 |
| ZKRS300-70 | 300-70 | 24.5 | 35.0 | 13.0 | 24.0 | 70.0 |
| ZKRS300-95 | 300-95 | 24.5 | 35.0 | 15.0 | 31.0 | 77.0 |
| ZKRS300-120 | 300-120 | 24.5 | 35.0 | 17.0 | 31.0 | 76.0 |
| ZKRS300-150 | 300-150 | 24.5 | 35.0 | 19.0 | 31.0 | 76.0 |
| ZKRS300-185 | 300-185 | 24.5 | 35.0 | 21.0 | 31.0 | 76.0 |
| ZKRS300-240 | 300-240 | 24.5 | 35.0 | 22.5 | 31.0 | 76.0 |
| ZKRS400-95 | 400-95 | 30.0 | 45.0 | 15.0 | 31.0 | 90.0 |
| ZKRS400-120 | 400-120 | 30.0 | 45.0 | 17.0 | 31.0 | 90.0 |
| ZKRS400-150 | 400-150 | 30.0 | 45.0 | 19.0 | 31.0 | 90.0 |
| ZKRS400-185 | 400-185 | 30.0 | 45.0 | 21.0 | 31.0 | 90.0 |
| ZKRS400-240 | 400-240 | 30.0 | 45.0 | 24.0 | 31.0 | 90.0 |
| ZKRS400-300 | 400-300 | 30.0 | 45.0 | 24.5 | 35.0 | 90.0 |
| ZKRS500-150 | 500-150 | 33.0 | 65.0 | 19.0 | 31.0 | 101.0 |
| ZKRS500-185 | 500-185 | 33.0 | 65.0 | 21.0 | 31.0 | 101.0 |
| ZKRS500-240 | 500-240 | 33.0 | 65.0 | 24.0 | 31.0 | 101.0 |
| ZKRS500-300 | 500-300 | 33.0 | 65.0 | 24.5 | 35.0 | 105.0 |
| ZKRS500-400 | 500-400 | 33.0 | 65.0 | 30.0 | 45.0 | 115.0 |
| ZKRS630-300 | 630-300 | 39.0 | 60.0 | 24.5 | 35.0 | 111.0 |
| ZKRS630-400 | 630-400 | 39.0 | 60.0 | 30.0 | 45.0 | 121.0 |
| ZKRS630-500 | 630-500 | 39.0 | 60.0 | 33.0 | 45.0 | 126.0 |
