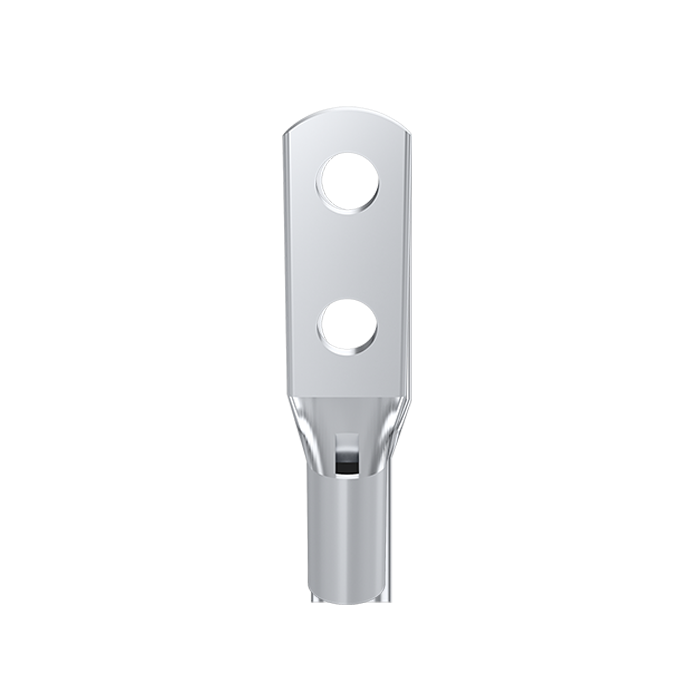

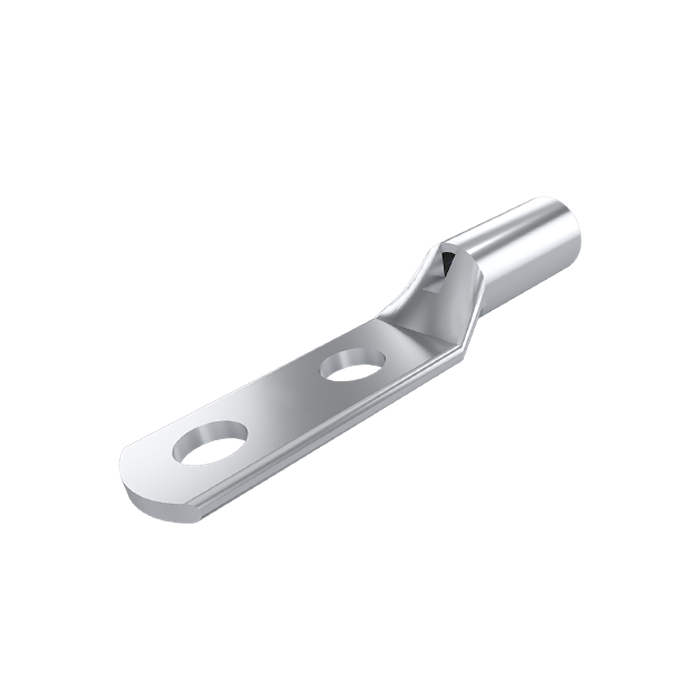

Copper Tube Crimping Lugs Two Hole
Two hole copper lugs designed for enhanced stability, secure fastening, and dependable electrical connections in industrial and power distribution applications
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | HOLE DISTANCE | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|---|
| E | A | D | B | G-1 | P | J | ||
| MTS502E10 | 50 | 10.3 | 10.8 | 20 | 22 | 24 | 47 | 86 |
| MTS502E10 | 50 | 10.3 | 10.8 | 20 | 22 | 29 | 47 | 91 |
| MTS502E10 | 50 | 10.3 | 10.3 | 20 | 22 | 34 | 47 | 96 |
| MTS702E10 | 70 | 10.3 | 12.5 | 23 | 24 | 24 | 51 | 87 |
| MTS702E10 | 70 | 10.3 | 12.5 | 23 | 24 | 29 | 51 | 94 |
| MTS702E10 | 70 | 10.3 | 12.5 | 23 | 24 | 34 | 51 | 99 |
| MTS952E10 | 95 | 10.3 | 14.5 | 27.5 | 27.5 | 24 | 56.5 | 93 |
| MTS952E10 | 95 | 10.3 | 14.5 | 27.5 | 27.5 | 29 | 56.5 | 98 |
| MTS952E10 | 95 | 10.3 | 14.5 | 27.5 | 27.5 | 34 | 56.5 | 103 |
| MTS1202E10 | 120 | 10.3 | 16.5 | 30 | 33 | 24 | 68 | 105 |
| MTS1202E10 | 120 | 10.3 | 16.5 | 30 | 33 | 24 | 68 | 105 |
| MTS1202E10 | 120 | 10.3 | 16.5 | 30 | 33 | 24 | 68 | 105 |
