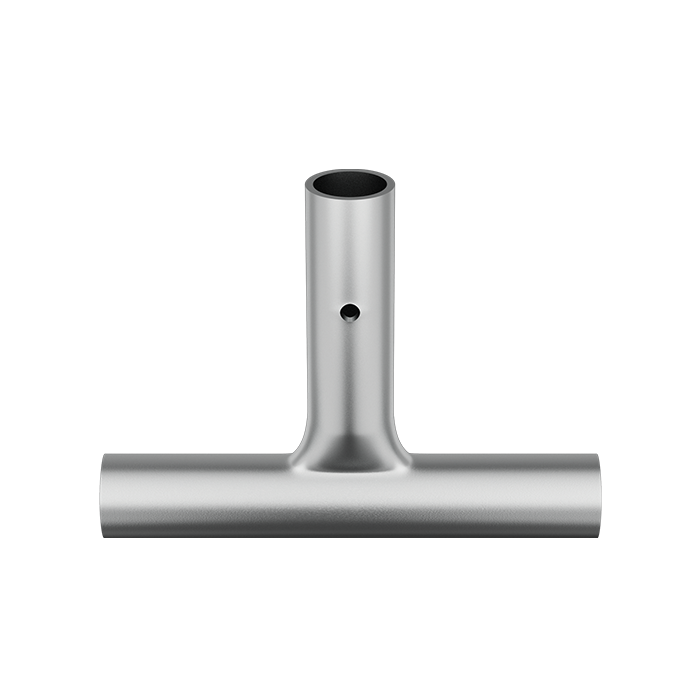

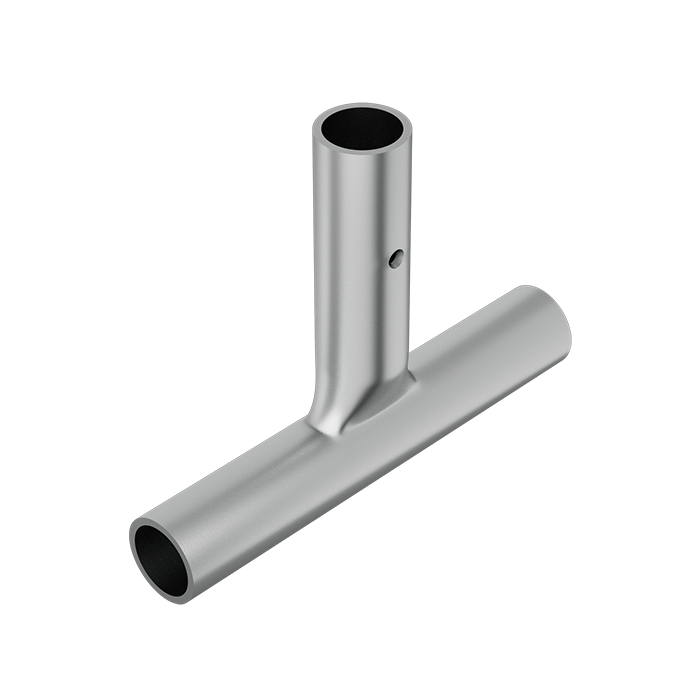

T-Connectors
Copper T-connectors designed for efficient branch connections with excellent conductivity and mechanical strength in switchgear, distribution boards, and electrical installations
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | BARREL LENGTH | HEIGHT |
|---|---|---|---|---|
| A | B | H | ||
| ZKTSF35 | 35 | 9 | 87 | 63 |
| ZKTSF50 | 50 | 11 | 96 | 70 |
| ZKTSF70 | 70 | 13 | 100 | 74 |
| ZKTSF95 | 95 | 15 | 103 | 77 |
| ZKTSF120 | 120 | 17 | 120 | 87.5 |
| ZKTSF150 | 150 | 19 | 124 | 92 |
| ZKTSF185 | 185 | 21 | 124 | 96 |
| ZKTSF240 | 240 | 24 | 129 | 100 |
| ZKTSF300 | 300 | 24.5 | 130 | 101.5 |
| ZKTSF400 | 400 | 30 | 190 | 131.5 |
| ZKTSF500 | 500 | 33 | 200 | 134.5 |
| ZKTSF630 | 630 | 39 | 235 | 168 |
