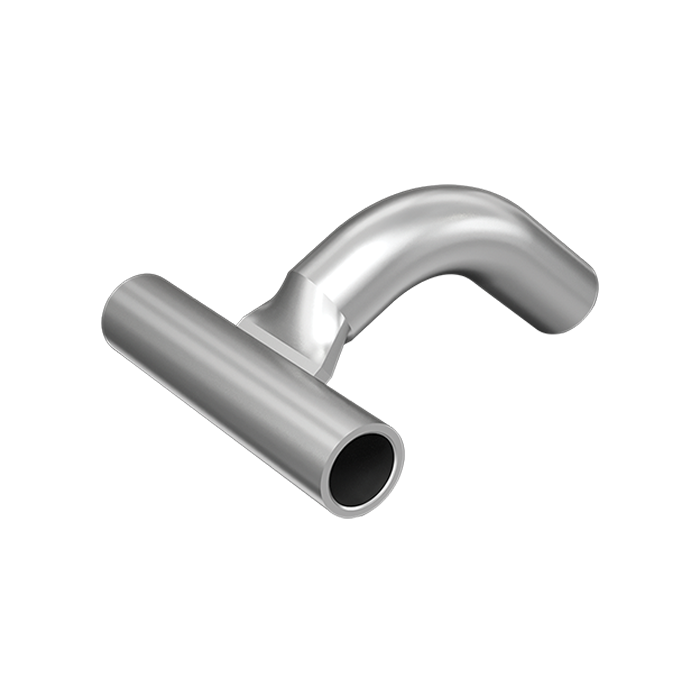

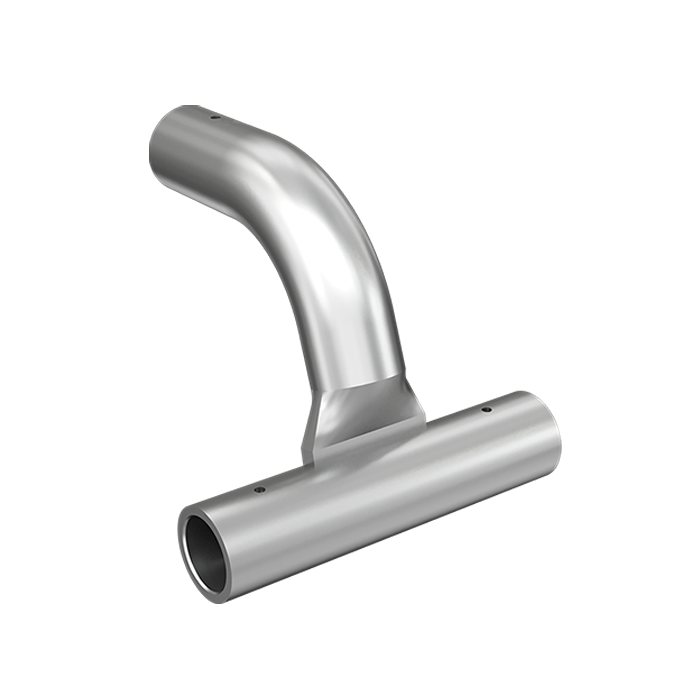

T-Connectors 110 Degree
110 degree copper T-connectors engineered for specialized cable branching applications and optimized cable routing in power distribution and industrial systems
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | BARREL LENGTH | HEIGHT |
|---|---|---|---|---|
| A | B | H | ||
| ZKTSF50-110 | 50 | 11 | 96 | 66 |
| ZKTSF70-110 | 70 | 13 | 96 | 66 |
| ZKTSF95-110 | 95 | 15 | 103 | 84.5 |
| ZKTSF120-110 | 120 | 17 | 120 | 91 |
| ZKTSF150-110 | 150 | 19 | 124 | 104 |
| ZKTSF185-110 | 185 | 21 | 124 | 112 |
| ZKTSF240-110 | 240 | 24 | 129 | 116 |
| ZKTSF300-110 | 300 | 24.5 | 135 | 130 |
