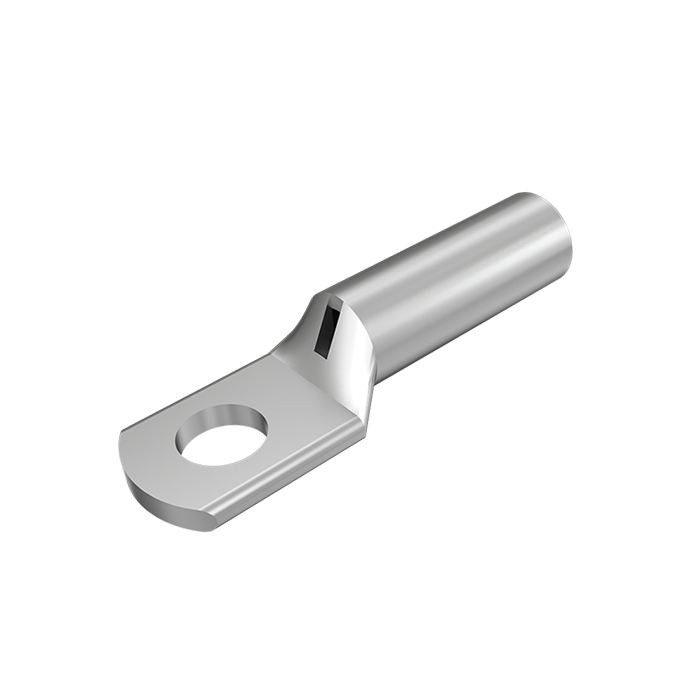

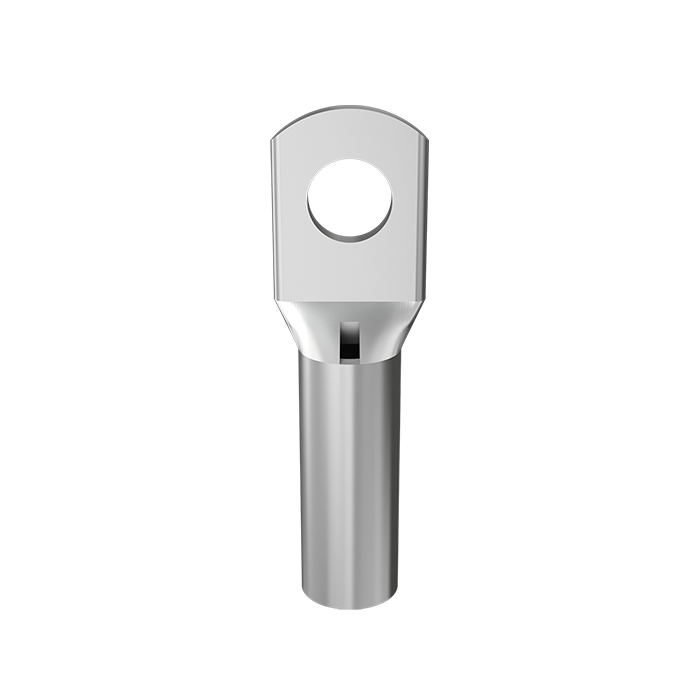

Copper Tube Crimping Lugs One Hole With Inspection Window
Copper Tube Crimping Lugs One Hole With Inspection Window - Image 2
Copper Tube Crimping Lugs One Hole With Inspection Window - Image 3

Copper Tube Crimping Lugs One Hole With Inspection Window

Category:

One hole copper lugs with an inspection window for accurate conductor positioning, secure crimping, and reliable electrical performance in electrical panels and switchgear

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    MTS104 10 4.2 5 13.5 14 17 34
    MTS105 10 5.2 5 13.5 14 17 34
    MTS106 10 6.4 5 13.5 14 17 34
    MTS108 10 8.3 5 13.5 14 17 34
    MTS1010 10 10.3 5 16 13 20 36
    MTS1012 10 12 5 16 13 20 36
    MTS165 16 5.2 6 15 14 20 37
    MTS166 16 6.4 6 15 14 20 37
    MTS168 16 8.3 6 15 15 19 37
    MTS1610 16 10.3 6 17 14 21 38
    MTS1612 16 12.8 6 17 14 21 38
    MTS255 25 5.2 7.7 15 18 23 45
    MTS256 25 6.4 7.7 15 18 23 45
    MTS258 25 8.3 7.7 15 18 23 45
    MTS2510 25 10.3 7.7 17.5 18 23 45
    MTS356 35 6.4 9 18 19 24 50
    MTS358 35 8.3 9 18 19 24 50
    MTS3510 35 10.3 9 18 19 24 50
    MTS506 50 6.4 10.8 21 22 26 58
    MTS508 50 8.3 10.8 21 22 26 58
    MTS5010 50 10.3 10.8 21 22 26 58
    MTS5012 50 12.8 10.8 21 22 26 58
    MTS708 70 8.3 12.5 23 24 32 66
    MTS7010 70 10.3 12.5 23 24 32 66
    MTS7012 70 12.8 12.5 23 24 32 66
    MTS958 95 8.3 14.5 27 27.5 34.5 73
    MTS9510 95 10.3 14.5 27 27.5 34.5 73
    MTS9512 95 12.8 14.5 27 27.5 34.5 73
    MTS9514 95 14.5 14.5 27 27.5 34.5 73
    MTS12010 120 10.3 16.5 30 33 38.5 83.5
    MTS12012 120 12.8 16.5 30 33 38.5 83.5
    MTS12014 120 14.5 16.5 30 33 38.5 83.5
    MTS12016 120 16.5 16.5 30 33 38.5 83.5
    MTS15010 150 10.3 18 32 34 42 90
    MTS15012 150 12.8 18 32 34 42 90
    MTS15014 150 14.5 18 32 34 42 90
    MTS15016 150 16.5 18 32 34 42 90
    MTS15018 150 18.8 18 32 34 42 90
    MTS18512 185 12.8 20.5 38 39 47 102
    MTS18514 185 14.5 20.5 38 39 47 102
    MTS18516 185 16.5 20.5 38 39 47 102
    MTS18518 185 18.8 20.5 38 39 47 102
    MTS24012 240 12.8 23 42 40 52 110
    MTS24014 240 14.5 23 42 40 52 110
    MTS24016 240 16.5 23 42 40 52 110
    MTS24018 240 18.8 23 42 40 52 110
    MTS24020 240 21 23 42 40 52 110
    MTS30016 300 16.5 26 48 47 58 123
    MTS30018 300 18.8 26 48 47 58 123
    MTS30020 300 21 26 48 47 58 123
    MTS30022 300 22.9 26 48 47 58 123
