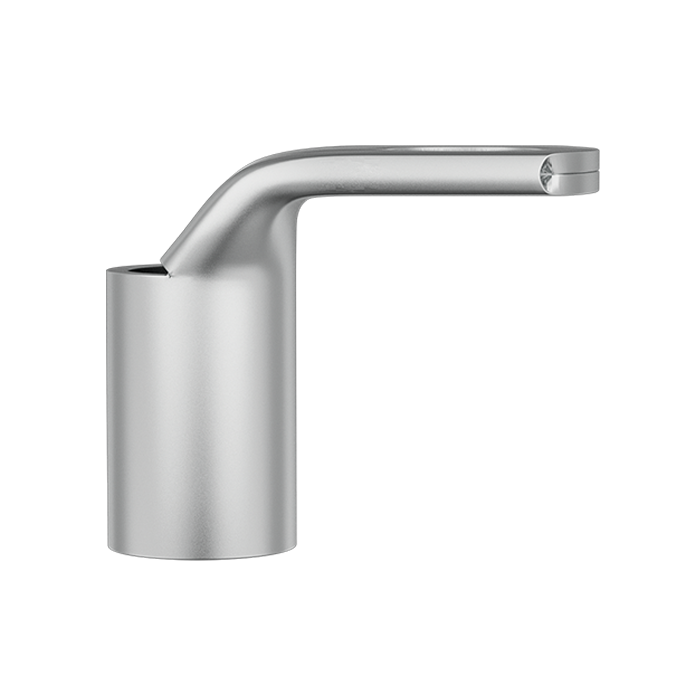

Copper Tube Crimping Lugs 90 Degree - Image 1
Copper Tube Crimping Lugs 90 Degree - Image 2
Copper Tube Crimping Lugs 90 Degree - Image 3

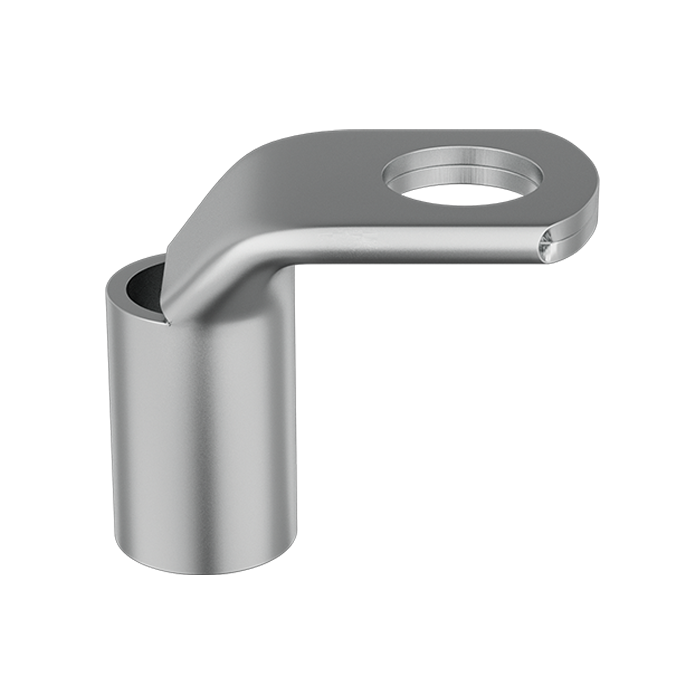

Copper Tube Crimping Lugs 90 Degree

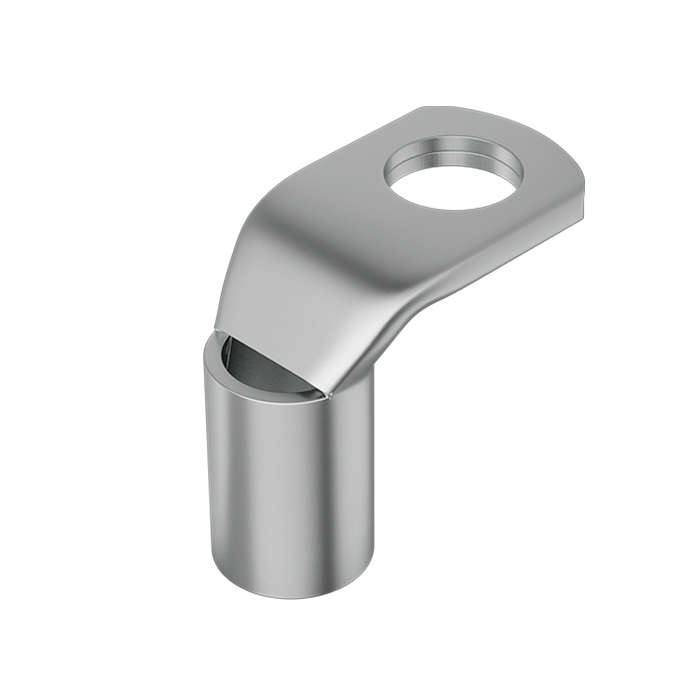

Copper Tube Crimping Lugs 90 Degree - Image 2
Copper Tube Crimping Lugs 90 Degree - Image 3

Copper Tube Crimping Lugs 90 Degree

Category:

90 degree copper lugs designed for compact installations, ensuring efficient cable management and secure connections in electrical panels, switchgear, and power distribution systems

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    ZAUS105F 10 5.2 4.7 12 10 13 27
    ZAUS106F 10 6.5 4.7 12 10 13 27
    ZAUS108F 10 8.4 4.7 14 10 15 29
    ZAUS1010F 10 10.5 4.7 16 10 19 32
    ZAUS1012F 10 13 4.7 18 11 23 38
    ZAUS166F 16 6.5 5.5 11 19 14 39
    ZAUS168F 16 8.4 5.5 14 19 16 39
    ZAUS1610F 16 10.5 5.5 16 19 18 41
    ZAUS1612F 16 13 5.5 18 19 23 46
    ZAUS256F 25 6.5 7.1 14 21 16 41
    ZAUS258F 25 8.4 7.1 14 21 16 41
    ZAUS2510F 25 10.5 7.1 16 21 19 44
    ZAUS2512F 25 13 7.1 18 21 23 48
    ZAUS356F 35 6.5 8.2 16 21 19 45
    ZAUS358F 35 8.4 8.2 16 21 19 45
    ZAUS3510F 35 10.5 8.2 18 21 19 45
    ZAUS3512F 35 13 8.2 20 22 24 51
    ZAUS506F 50 6.5 9.5 18 22 20 46
    ZAUS508F 50 8.4 9.5 18 22 20 46
    ZAUS5010F 50 10.5 9.5 18 22 20 46
    ZAUS5012F 50 13 9.5 21 22 24 52
    ZAUS706F 70 6.5 11.2 21 24 24 54
    ZAUS708F 70 8.4 11.2 21 24 24 54
    ZAUS7010F 70 10.5 11.2 21 24 24 54
    ZAUS7012F 70 13 11.2 21 24 24 54
    *ZAUS7014F 70 15 11.2 21 24 23 54
    ZAUS7016F 70 17 11.2 28 24 34 61
    ZAUS958F 95 8.4 13.5 25 27 26 60
    ZAUS9510F 95 10.5 13.5 25 27 26 60
    ZAUS9512F 95 13 13.5 25 27 26 60
    *ZAUS9514F 95 15 13.5 25 27 24.5 60
    ZAUS9516F 95 17 13.5 28 27 30 64
    ZAUS1208F 120 8.4 15.6 29 30 26 64
    ZAUS12010F 120 10.5 15.6 29 30 26 64
    ZAUS12012F 120 13 15.6 29 30 26 64
    *ZAUS12014F 120 15 15.6 29 30 26 64
    ZAUS12016F 120 17 15.6 29 30 32 70
    ZAUS15010F 150 10.5 16.7 32 30 32 71
    *ZAUS15012F 150 13 16.7 32 30 41 75
    *ZAUS15014F 150 15 16.7 32 30 41 75
    ZAUS15016F 150 17 16.7 32 30 41 75
    ZAUS18510F 185 10.5 18.4 35 32 32 74
    ZAUS18512F 185 13 18.4 35 32 41 79
    ZAUS18516F 185 17 18.4 35 32 41 79
    ZAUS24010F 240 10.5 21.2 40 38 42 92
    ZAUS24012F 240 13 21.2 40 38 42 92
    ZAUS24016F 240 17 21.2 40 38 42 92
    ZAUS30012F 300 13 23.5 45 42 46 101
    *ZAUS30014F 300 15 23.5 45 42 46 101
    ZAUS30016F 300 17 23.5 45 42 46 101
    *ZAUS40012F 400 13 26.8 50 44 52 114
    *ZAUS40016F 400 17 26.8 50 44 52 114
    *ZAUS400BLF 400 BL 26.8 50 44 52 114
    *ZAUS50012F 500 13 30.0 56 50 56 119
    *ZAUS50016F 500 17 30.0 56 50 56 119
    *ZAUS500BLF 500 BL 30.0 56 50 56 119
    *ZAUS63012F 630 13 34.0 65 58 56 139
    *ZAUS63016F 630 17 34.0 65 58 56 139
    *ZAUS630BLF 630 BL 34.0 65 58 56 139
