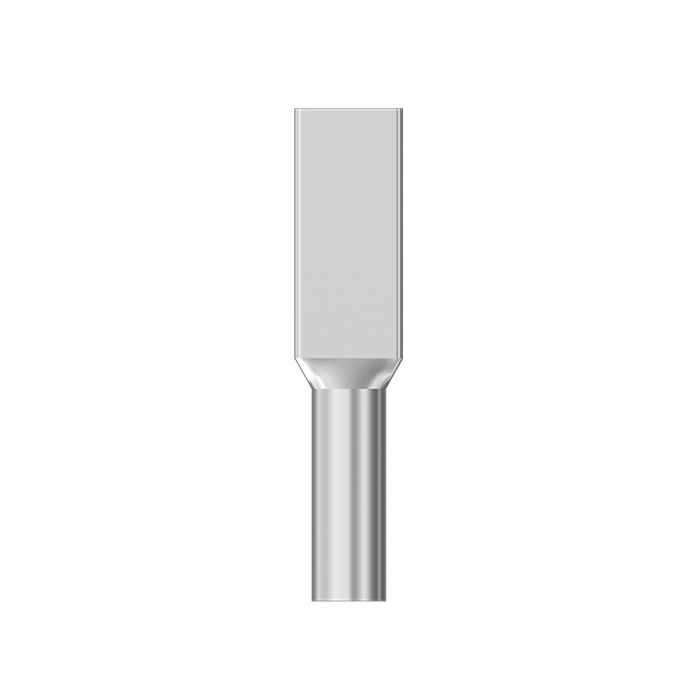

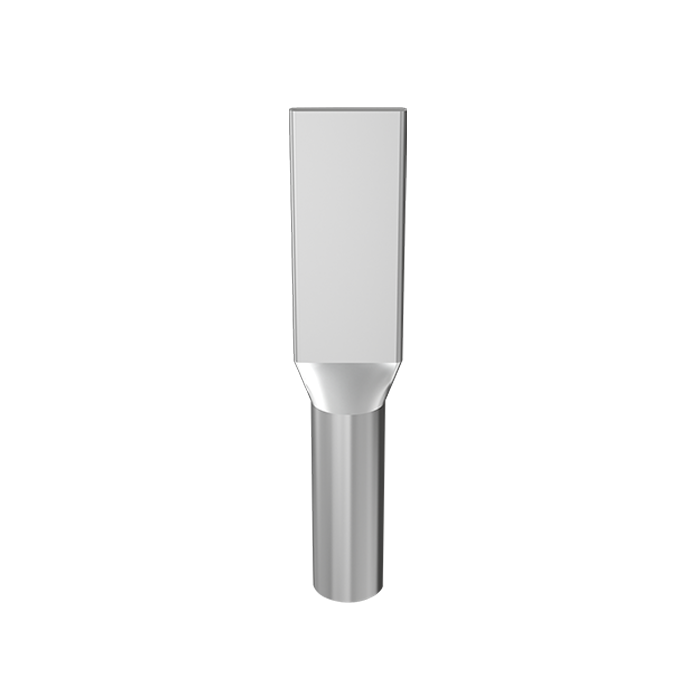

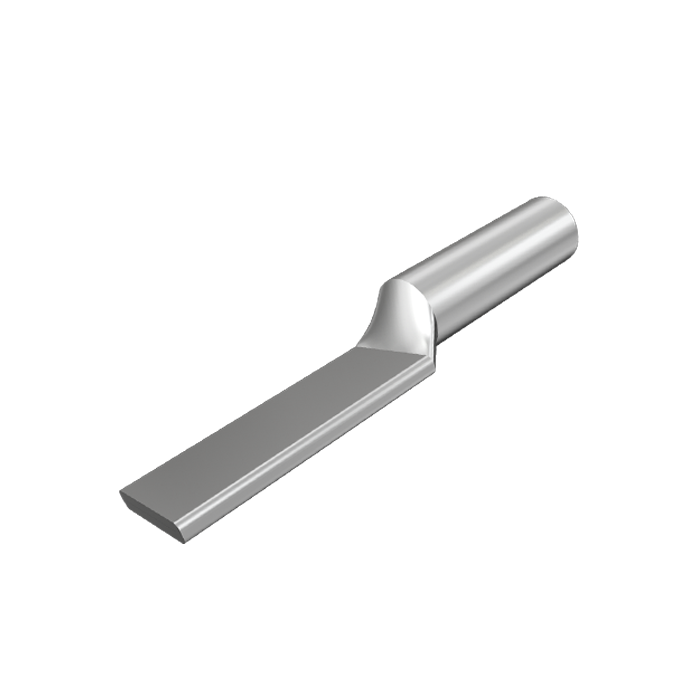

Copper Tube Crimping Long Palm & Long Barrel
Long palm and long barrel copper lugs provide maximum contact area, improved current flow, and robust mechanical strength for power distribution, transformer, and industrial electrical applications
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID A |
PALM WIDTH D |
BARREL LENGTH B |
PAD LENGTH P |
TOTAL LENGTH J |
|---|---|---|---|---|---|---|
| ZAUSFP16 | 16 | 5.5 | 11 | 21 | 61 | 86 |
| ZAUSFP25 | 25 | 7.1 | 15 | 29 | 61 | 94 |
| ZAUSFP35 | 35 | 8.2 | 16 | 35 | 72 | 112 |
| ZAUSFP50 | 50 | 9.5 | 19 | 44 | 80 | 130 |
| ZAUSFP70 | 70 | 11.2 | 21 | 48 | 100 | 154 |
| ZAUSFP95 | 95 | 13.5 | 25 | 54 | 100 | 161 |
| ZAUSFP120 | 120 | 15.6 | 29 | 60 | 100 | 168 |
| ZAUSFP150 | 150 | 16.7 | 32 | 60 | 100 | 169 |
| ZAUSFP185 | 185 | 18.4 | 35 | 64 | 100 | 174 |
| ZAUSFP240 | 240 | 21.2 | 40 | 80 | 100 | 192 |
| ZAUSFP300 | 300 | 23.5 | 45 | 90 | 105 | 208 |
| ZAUSFP400 | 400 | 26.8 | 50 | 100 | 110 | 225 |
| ZAUSFP500 | 500 | 30.0 | 56 | 105 | 110 | 230 |
| ZAUSFP630 | 630 | 34.0 | 63 | 115 | 110 | 242 |
