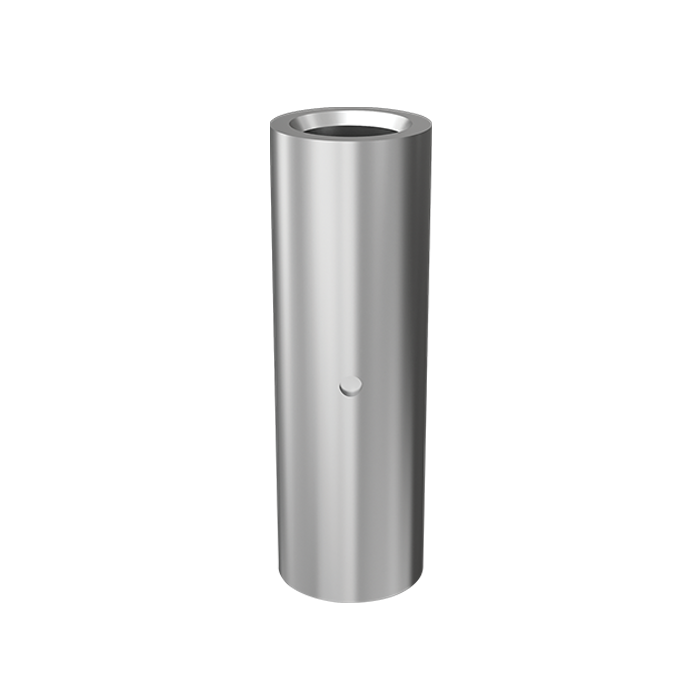

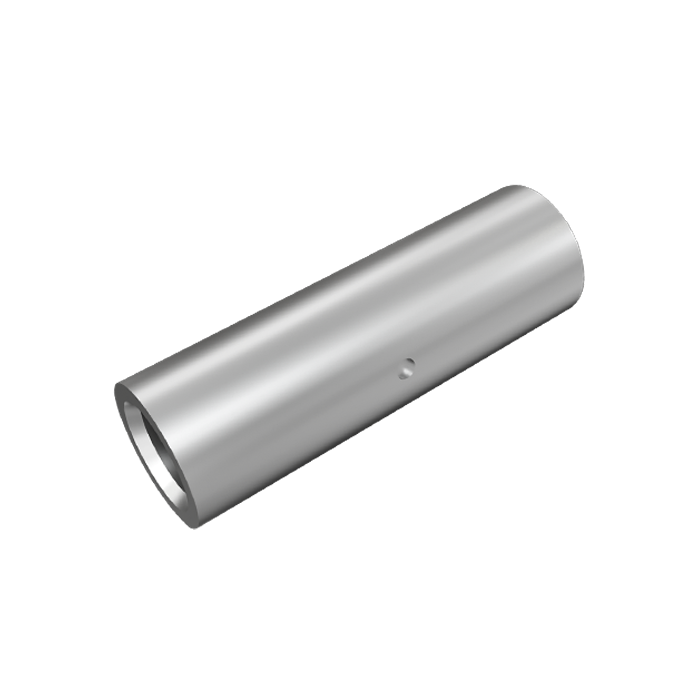

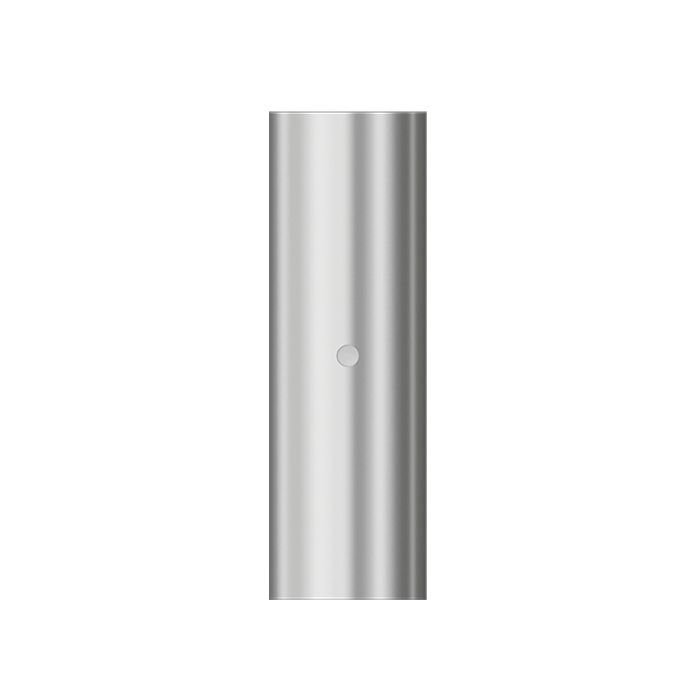

Copper Tube Crimping Through Connectors
High-conductivity copper connectors designed for efficient cable joining and long-lasting electrical reliability in power distribution systems, control panels, switchgear, and industrial wiring applications
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | TOTAL LENGTH |
|---|---|---|---|
| A | J | ||
| ZCAUI1.5 | 1.5 | 1.8 | 22 |
| ZCAUI2.5 | 2.5 | 2.4 | 22 |
| ZCAUI4 | 4 | 3.1 | 22 |
| ZCAUI6 | 6 | 3.8 | 22 |
| ZCAUI10 | 10 | 4.7 | 22 |
| ZCAUI16 | 16 | 5.5 | 44 |
| ZCAUI25 | 25 | 7.1 | 47 |
| ZCAUI35 | 35 | 8.2 | 47 |
| ZCAUI50 | 50 | 9.5 | 47 |
| ZCAUI70 | 70 | 11.2 | 50 |
| ZCAUI95 | 95 | 13.5 | 54 |
| ZCAUI120 | 120 | 15.6 | 65 |
| ZCAUI150 | 150 | 16.7 | 65 |
| ZCAUI185 | 185 | 18.4 | 65 |
| ZCAUI240 | 240 | 21.2 | 90 |
| ZCAUI300 | 300 | 23.5 | 90 |
| ZCAUI400 | 400 | 26.8 | 90 |
| ZCAUI500 | 500 | 30 | 112 |
| ZCAUI630 | 630 | 34 | 112 |
| ZCAUI800 | 800 | 39.3 | 230 |
| ZCAUI1000 | 1000 | 44 | 230 |
