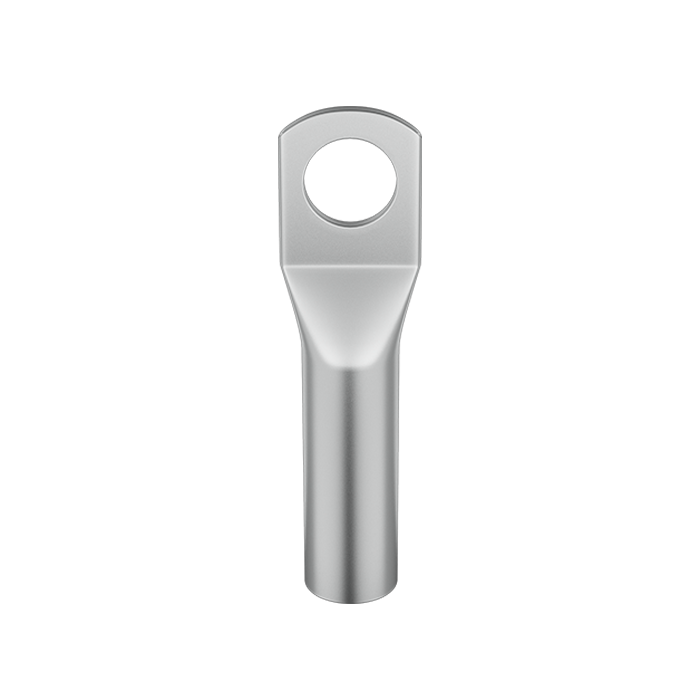

Copper Tube Crimping Lugs One Hole Long Barrel - Image 1

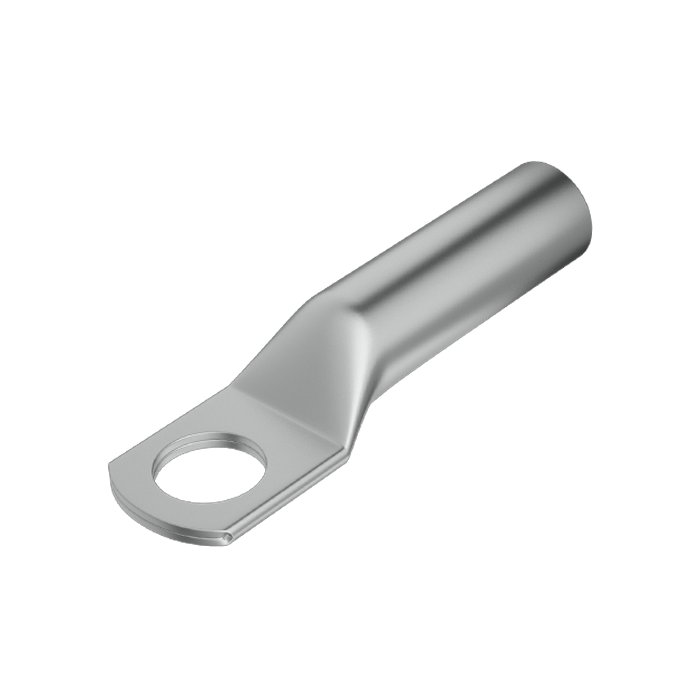

Copper Tube Crimping Lugs One Hole Long Barrel - Image 2

Copper Tube Crimping Lugs One Hole Long Barrel

Category: Copper Crimping Tube Lugs & Connectors

Long barrel copper lugs offer increased crimping area, superior conductivity, and enhanced mechanical performance in transformers, switchgear, and industrial power applications

Material	High Conductor Aluminium 99.9% Pure
Finish	Tin Electro Plated and Annealed
Type of Cable	Stranded & Flexible

Technical Specifications

CAT. NO	CABLE mm2	STUD SIZE	BARREL ID	PALM WIDTH	BARREL LENGTH	PAD LENGTH	TOTAL LENGTH
CAT. NO	CABLE mm2	E	A	D	B	P	J
ZAUSL106	10	6.5	4.7	12	18	13	35
ZAUSL166	16	6.5	5.5	11	21	16	41
ZAUSL168	16	8.4	5.5	14	21	16	41
ZAUSL258	25	8.4	7.1	14	29	16	49
ZAUSL2510	25	10.5	7.1	16	29	19	52
ZAUSL2512	25	13	7.1	18	29	23	56
ZAUSL358	35	8.4	8.2	16	35	19	59
ZAUSL3510	35	10.5	8.2	18	35	19	59
ZAUSL3512	35	13	8.2	20	35	24	64
ZAUSL5010	50	10.5	9.5	18	44	18	68
ZAUSL5012	50	13	9.5	21	46	24	76
ZAUSL7010	70	10.5	11.2	21	48	24	78
ZAUSL7012	70	13	11.2	21	48	24	78
ZAUSL9510	95	10.5	13.5	25	54	26	87
ZAUSL9512	95	13	13.5	25	54	26	87
ZAUSL12010	120	10.5	15.6	30	60	26	94
ZAUSL12012	120	13	15.6	30	60	26	94
ZAUSL15012	150	13	16.7	32	60	36	105
ZAUSL15016	150	17	16.7	32	60	36	105
ZAUSL18512	185	13	18.4	36	64	36	111
ZAUSL24012	240	13	21.2	41	80	42	134
ZAUSL30016	300	17	23.5	46	90	46	149
ZAUSL400BL	400	BL	26.8	50	93	52	163
ZAUSL500BL	500	BL	30	56	105	54	174
ZAUSL630BL	630	BL	34	64.4	110	64	191
