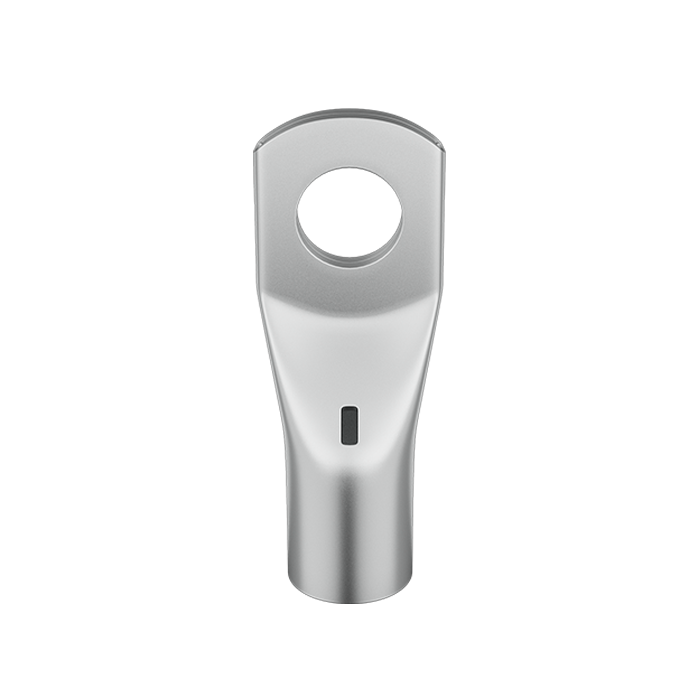

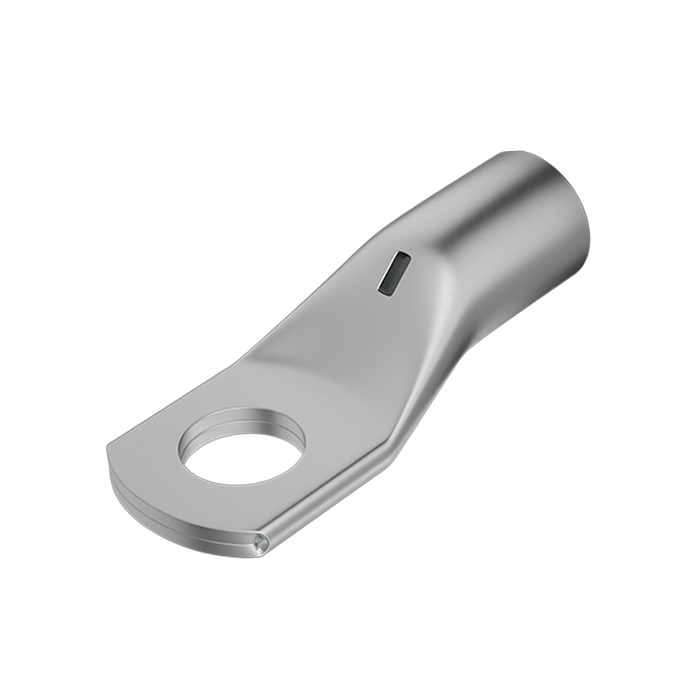

Copper Tube Crimping Lugs One Hol
Premium one hole copper lugs manufactured for secure cable termination, excellent conductivity, and long-term performance in electrical panels, switchgear, and industrial electrical systems
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| ZKR1.5-3 | 1.5 | 3.2 | 1.8 | 6.5 | 5 | 9 | 17 |
| ZKR1.5-4 | 1.5 | 4.2 | 1.8 | 6.5 | 6 | 9 | 18 |
| ZKR1.5-5 | 1.5 | 5.3 | 1.8 | 7.5 | 6 | 9 | 18 |
| ZKR1.5-6 | 1.5 | 6.4 | 1.8 | 8.5 | 6 | 9 | 19 |
| ZKR2.5-3 | 2.5 | 3.2 | 2.3 | 7.5 | 6 | 9 | 18 |
| ZKR2.5-4 | 2.5 | 4.2 | 2.3 | 7.5 | 6 | 9 | 18 |
| ZKR2.5-5 | 2.5 | 5.3 | 2.3 | 8.5 | 6 | 11 | 20 |
| ZKR2.5-6 | 2.5 | 6.4 | 2.3 | 8.5 | 6 | 11 | 20 |
| ZKR4-4 | 4 | 4.2 | 3.0 | 8.5 | 7 | 11 | 22 |
| ZKR4-5 | 4 | 5.3 | 3.0 | 9 | 7 | 11 | 22 |
| ZKR4-6 | 4 | 6.4 | 3.0 | 10 | 7 | 11 | 22 |
| ZKR4-8 | 4 | 8.3 | 3.0 | 11.5 | 6 | 12 | 24 |
| ZKR6-4 | 6 | 4.2 | 4.0 | 9.5 | 7 | 11 | 22 |
| ZKR6-5 | 6 | 5.3 | 4.0 | 9.5 | 7 | 11 | 22 |
| ZKR6-6 | 6 | 6.4 | 4.0 | 10.0 | 7 | 13 | 24 |
| ZKR6-8 | 6 | 8.4 | 4.0 | 13.5 | 9 | 16 | 30 |
| ZKR10-5 | 10 | 5.3 | 5.0 | 11.5 | 10.0 | 13.0 | 29 |
| ZKR10-6 | 10 | 6.5 | 5.0 | 11.5 | 10.0 | 13.0 | 29 |
| ZKR10-8 | 10 | 8.4 | 5.0 | 13.5 | 10.0 | 16.0 | 33 |
| ZKR10-10 | 10 | 10.5 | 5.0 | 16.0 | 9.0 | 18.0 | 34 |
| ZKR16-6 | 16 | 6.5 | 6.0 | 13.0 | 12.0 | 16.0 | 34 |
| ZKR16-8 | 16 | 8.4 | 6.0 | 13.0 | 12.0 | 16.0 | 34 |
| ZKR16-10 | 16 | 10.5 | 6.0 | 16.0 | 12.0 | 22.0 | 38 |
| ZKR16-12 | 16 | 13.0 | 6.0 | 22.0 | 12.0 | 25.0 | 47 |
| ZKR25-6 | 25 | 6.5 | 8.0 | 16.0 | 13.0 | 18.0 | 39 |
| ZKR25-8 | 25 | 8.4 | 8.0 | 16.0 | 13.0 | 18.0 | 39 |
| ZKR25-10 | 25 | 10.5 | 8.0 | 16.0 | 13.0 | 18.0 | 39 |
| ZKR25-12 | 25 | 13.0 | 8.0 | 22.0 | 13.0 | 25.0 | 47 |
| ZKR35-6 | 35 | 6.5 | 9.0 | 18.0 | 14.0 | 21.0 | 47 |
| ZKR35-8 | 35 | 8.4 | 9.0 | 18.0 | 14.0 | 21.0 | 47 |
| ZKR35-10 | 35 | 10.5 | 9.0 | 18.0 | 14.0 | 21.0 | 47 |
| ZKR35-12 | 35 | 13.0 | 9.0 | 22.0 | 14.0 | 26.0 | 52 |
| ZKR50-6 | 50 | 6.5 | 11.0 | 21.0 | 17.0 | 23.0 | 50 |
| ZKR50-8 | 50 | 8.4 | 11.0 | 21.0 | 17.0 | 23.0 | 50 |
| ZKR50-10 | 50 | 10.5 | 11.0 | 21.0 | 17.0 | 23.0 | 50 |
| CAT. NO | CABLE mm2 |
STUD SIZE | BARREL ID | PALM WIDTH | BARREL LENGTH | PAD LENGTH | TOTAL LENGTH |
|---|---|---|---|---|---|---|---|
| E | A | D | B | P | J | ||
| ZKR50-12 | 50 | 13.0 | 11.0 | 21.0 | 17.0 | 26.0 | 53 |
| ZKR70-6 | 70 | 6.5 | 13.0 | 25.0 | 20.0 | 23.0 | 55 |
| ZKR70-8 | 70 | 8.4 | 13.0 | 25.0 | 20.0 | 23.0 | 55 |
| ZKR70-10 | 70 | 10.5 | 13.0 | 25.0 | 20.0 | 23.0 | 55 |
| ZKR70-12 | 70 | 13.0 | 13.0 | 25.0 | 20.0 | 26.0 | 58 |
| ZKR70-16 | 70 | 17.0 | 13.0 | 28.0 | 20.0 | 32.0 | 64 |
| ZKR95-8 | 95 | 8.4 | 15.0 | 29.0 | 23.0 | 32.0 | 69 |
| ZKR95-10 | 95 | 10.5 | 15.0 | 29.0 | 23.0 | 32.0 | 69 |
| ZKR95-12 | 95 | 13.0 | 15.0 | 29.0 | 23.0 | 32.0 | 69 |
| ZKR95-16 | 95 | 17.0 | 15.0 | 29.0 | 23.0 | 32.0 | 69 |
| ZKR120-10 | 120 | 10.5 | 17.0 | 32.0 | 25.0 | 32.0 | 73 |
| ZKR120-12 | 120 | 13.0 | 17.0 | 32.0 | 25.0 | 32.0 | 73 |
| ZKR120-16 | 120 | 17.0 | 17.0 | 32.0 | 25.0 | 32.0 | 73 |
| ZKR150-10 | 150 | 10.5 | 19.0 | 36.0 | 30.0 | 32.0 | 80 |
| ZKR150-12 | 150 | 13.0 | 19.0 | 36.0 | 30.0 | 32.0 | 80 |
| ZKR150-16 | 150 | 17.0 | 19.0 | 36.0 | 30.0 | 32.0 | 80 |
| ZKR150-20 | 150 | 21.0 | 19.0 | 36.0 | 30.0 | 39.0 | 87 |
| ZKR185-10 | 185 | 10.5 | 21.0 | 39.0 | 35.0 | 32.0 | 86 |
| ZKR185-12 | 185 | 13.0 | 21.0 | 39.0 | 35.0 | 32.0 | 86 |
| ZKR185-16 | 185 | 17.0 | 21.0 | 39.0 | 35.0 | 32.0 | 86 |
| ZKR185-20 | 185 | 21.0 | 21.0 | 39.0 | 35.0 | 38.0 | 93 |
| ZKR240-10 | 240 | 10.5 | 24.0 | 44.0 | 36.0 | 39.0 | 95 |
| ZKR240-12 | 240 | 13.0 | 24.0 | 44.0 | 36.0 | 39.0 | 95 |
| ZKR240-16 | 240 | 17.0 | 24.0 | 44.0 | 36.0 | 39.0 | 95 |
| ZKR240-20 | 240 | 21.0 | 24.0 | 44.0 | 36.0 | 39.0 | 95 |
| ZKR300-10 | 300 | 10.5 | 24.5 | 46.0 | 42.0 | 54.0 | 116 |
| ZKR300-12 | 300 | 13.0 | 24.5 | 46.0 | 42.0 | 54.0 | 116 |
| ZKR300-16 | 300 | 17.0 | 24.5 | 46.0 | 42.0 | 54.0 | 116 |
| ZKR300-20 | 300 | 21.0 | 24.5 | 46.0 | 42.0 | 54.0 | 116 |
| ZKR300-24 | 300 | 26.0 | 24.5 | 46.0 | 42.0 | 54.0 | 116 |
| ZKR400-12 | 400 | 13.0 | 30.0 | 56.0 | 48.0 | 55.0 | 125 |
| ZKR400-16 | 400 | 17.0 | 30.0 | 56.0 | 48.0 | 55.0 | 125 |
| ZKR400-20 | 400 | 21.0 | 30.0 | 56.0 | 48.0 | 55.0 | 125 |
| ZKR400-24 | 400 | 26.0 | 30.0 | 56.0 | 48.0 | 55.0 | 125 |
| ZKR500-20 | 500 | 21.0 | 33.0 | 61.0 | 63.0 | 60.0 | 150 |
| ZKR500-24 | 500 | 26.0 | 33.0 | 61.0 | 63.0 | 60.0 | 150 |
| ZKR 630 | 630 | BL | 39.0 | 73.0 | 83.0 | 63.0 | 195 |
| ZKR 630-20 | 630 | 21.0 | 39.0 | 73.0 | 83.0 | 80.0 | 195 |
| ZKR 630-24 | 630 | 26.0 | 39.0 | 73.0 | 83.0 | 80.0 | 195 |
