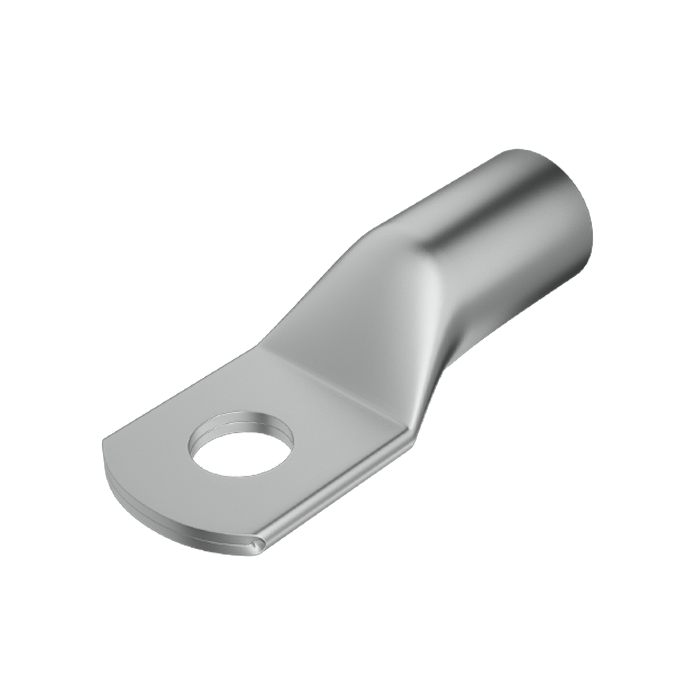

Copper Tube Crimping Lugs One Hole

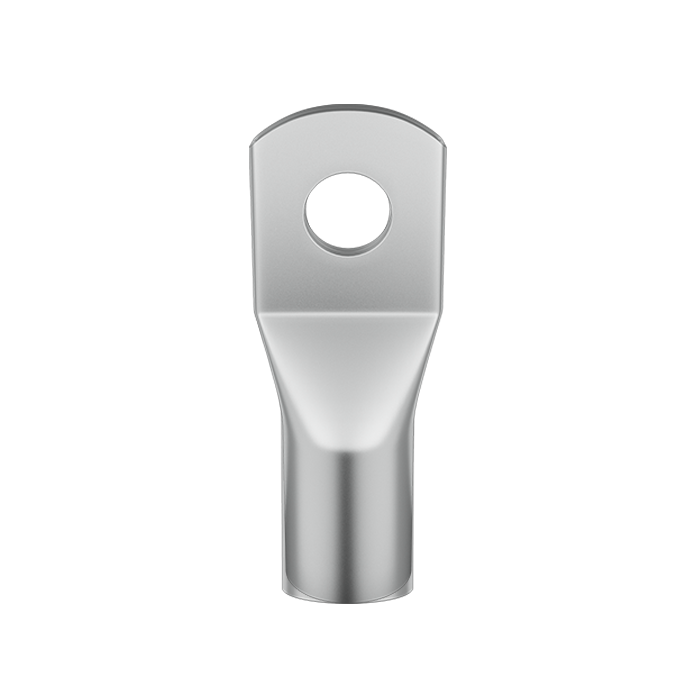

Copper Tube Crimping Lugs One Hole - Image 2

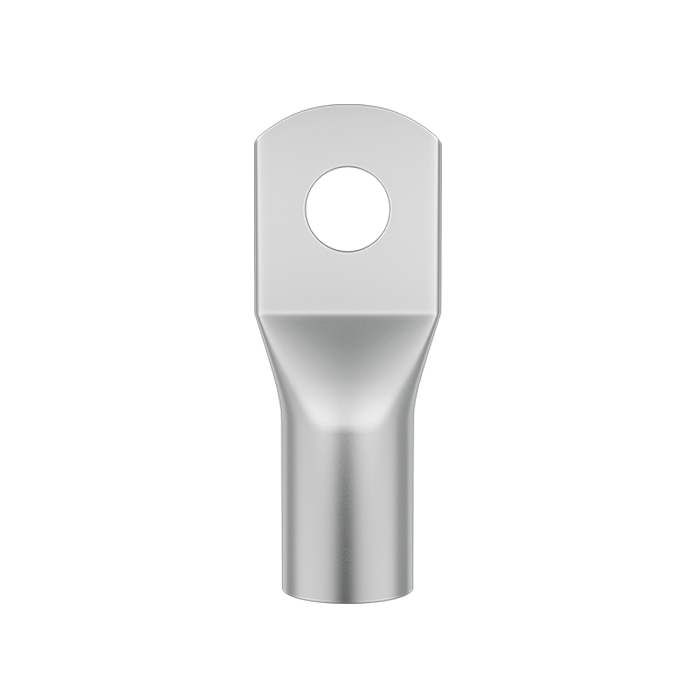

Copper Tube Crimping Lugs One Hole - Image 3

Copper Tube Crimping Lugs One Hole

Category:

High-quality copper lugs designed for secure cable termination, excellent conductivity, and reliable long-term performance in electrical panels, switchgear, and industrial electrical systems

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    ZTN2.54 2.5 4.2 2.4 10 8 11 22
    ZTN2.55 2.5 5.3 2.4 10 8 11 22
    ZTN2.56 2.5 6.4 2.4 10 8 11 22
    ZTN45 4 5.3 3.1 10 8 11 22
    ZTN46 4 6.4 3.1 10 8 11 22
    ZTN65 6 5.3 4.0 10 10 13 26
    ZTN66 6 6.4 4.0 10 10 13.5 26
    ZTN68 6 8.5 4.0 14 10 18 31
    ZTN610 6 10.5 4.0 16 10 20 33
    ZTN105 10 5.3 4.4 10 11 14 28
    ZTN106 10 6.5 4.4 10 11 14 28
    ZTN108 10 8.5 4.4 13 12 18 33
    ZTN1010 10 10.5 4.4 16 12 24 39
    ZTN1012 10 13.0 4.4 16 12 24 39
    ZTN165 16 5.3 5.5 12 12 14.5 30.5
    ZTN166 16 6.5 5.5 12 12 14.5 30.5
    ZTN168 16 8.5 5.5 15 12 18.5 35.5
    ZTN1610 16 10.5 5.5 17 12 22 39
    ZTN1612 16 13.0 5.5 17 12 26 43
    ZTN255 25 5.3 6.8 13 13 14 32
    ZTN256 25 6.5 6.8 13 13 14 32
    ZTN258 25 8.5 6.8 14.5 13 20 38
    ZTN2510 25 10.5 6.8 17 13 24 43
    ZTN2512 25 13.0 6.8 18 13 24 43
    ZTN2514 25 15.0 6.8 21 13 27 46
    ZTN356 35 6.5 8.2 16 16 15 38
    ZTN358 35 8.5 8.2 16 16 20 42
    ZTN3510 35 10.5 8.2 18 16 24 47
    ZTN3512 35 13.0 8.2 18 16 30 53
    ZTN3514 35 15.0 8.2 21 16 30 53
    ZTN506 50 6.5 9.5 18 19 20 46
    ZTN508 50 8.5 9.5 18 19 20 46
    ZTN5010 50 10.5 9.5 18 19 24 50
    ZTN5012 50 13.0 9.5 19 19 26 52
    ZTN5014 50 15.0 9.5 21 19 28 54
    ZTN5016 50 17.0 9.5 22.5 19 28 54
    ZTN706 70 6.5 11.2 21 21 20 49
    ZTN708 70 8.5 11.2 21 21 20 49
    ZTN7010 70 10.5 11.2 21 21 24 53
    ZTN7012 70 13.0 11.2 22 21 26 55
    ZTN7014 70 15.0 11.2 22 21 32 61
    ZTN7016 70 17.0 11.2 26 21 34 63
    ZTN958 95 8.5 13.3 25 24 24 57
    ZTN9510 95 10.5 13.3 25 24 24 57
    ZTN9512 95 13.0 13.3 25 24 26 60
    ZTN9514 95 15.0 13.3 25 24 33 67
    ZTN9516 95 17.0 13.3 26 24 33 67
    ZTN9520 95 21.0 13.3 28 24 34 68

    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    ZTN1208 120 8.5 15.0 28 27 28 65
    ZTN12010 120 10.5 15.0 28 27 28 65
    ZTN12012 120 13 15.0 28 27 28 65
    ZTN12014 120 15 15.0 28 27 31 68
    ZTN12016 120 17.0 15.0 28 27 31 68
    ZTN12020 120 21.0 15.0 28 27 31 68
    ZTN1508 150 8.5 16.5 30 30 28 70
    ZTN15010 150 10.5 16.5 30 30 28 70
    ZTN15012 150 13.0 16.5 31 30 30 72
    ZTN15014 150 15.0 16.5 31 30 30 72
    ZTN15016 150 17.0 16.5 31 30 30 72
    ZTN15020 150 21.0 16.5 31 30 30 72
    ZTN18510 185 10.5 19.0 35 32 37 83
    ZTN18512 185 13.0 19.0 35 32 37 83
    ZTN18514 185 15.0 19.0 35 32 37 83
    ZTN18516 185 17.0 19.0 35 32 37 83
    ZTN18520 185 21.0 19.0 35 32 37 83
    ZTN24010 240 10.5 21.0 39 38 42 94
    ZTN24012 240 13.0 21.0 39 38 42 94
    ZTN24014 240 15.0 21.0 39 38 42 94
    ZTN24016 240 17.0 21.0 39 38 42 94
    ZTN24020 240 21.0 21.0 39 38 42 94
    ZTN30010 300 10.5 23.5 43 47 49 111
    ZTN30012 300 13.0 23.5 43 47 49 111
    ZTN30014 300 15.0 23.5 43 47 49 111
    ZTN30016 300 17.0 23.5 43 47 49 111
    ZTN30020 300 21.0 23.5 43 47 49 111
    ZTN40010 400 10.5 27.0 49 46 49 114
    ZTN40012 400 13.0 27.0 49 46 49 114
    ZTN40014 400 15.0 27.0 49 46 49 114
    ZTN40016 400 17.0 27.0 49 46 49 114
    ZTN40020 400 21.0 27.0 49 46 49 114
    ZTN50010 500 10.5 31.0 56 72 49 144
    ZTN50012 500 13.0 31.0 56 72 49 144
    ZTN50014 500 15.0 31.0 56 72 49 144
    ZTN50016 500 17.0 31.0 56 72 49 144
    ZTN50020 500 21.0 31.0 56 72 49 144
    ZTN63010 630 10.5 34.0 59 72 49 144
    ZTN63012 630 13.0 34.0 59 72 49 144
    ZTN63014 630 15.0 34.0 59 72 49 144
    ZTN63016 630 17.0 34.0 59 72 49 144
    ZTN63020 630 21.0 34.0 59 72 49 144
