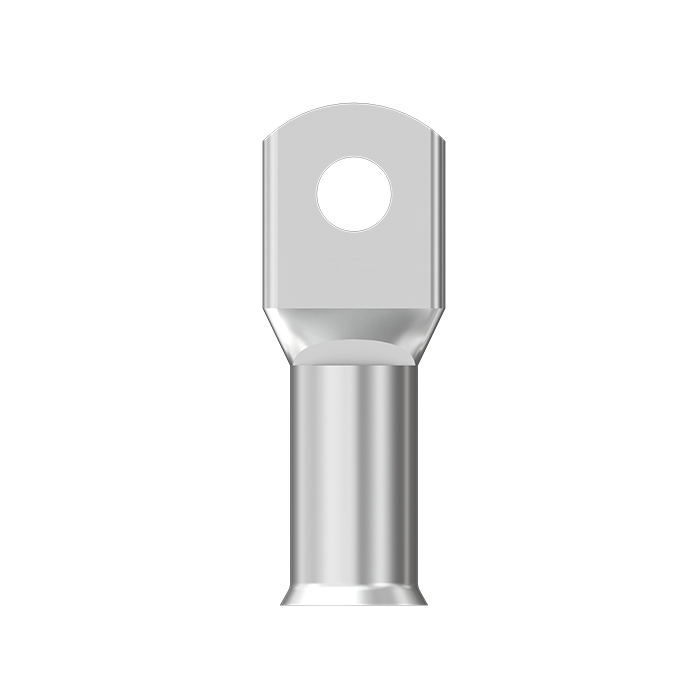

Copper Tube Crimping Lugs One Hole - Image 1
Copper Tube Crimping Lugs One Hole - Image 2
Copper Tube Crimping Lugs One Hole - Image 3
Copper Tube Crimping Lugs One Hole
Copper Tube Crimping Lugs One Hole - Image 2
Copper Tube Crimping Lugs One Hole - Image 3

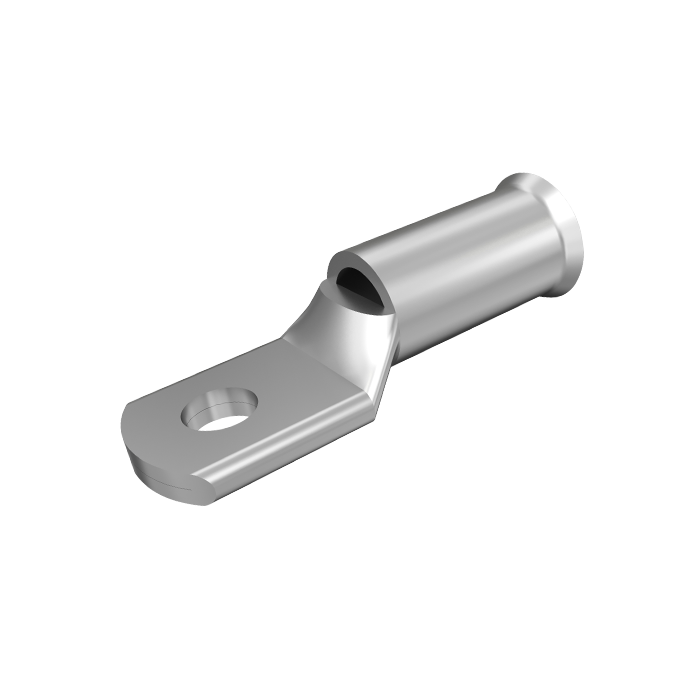

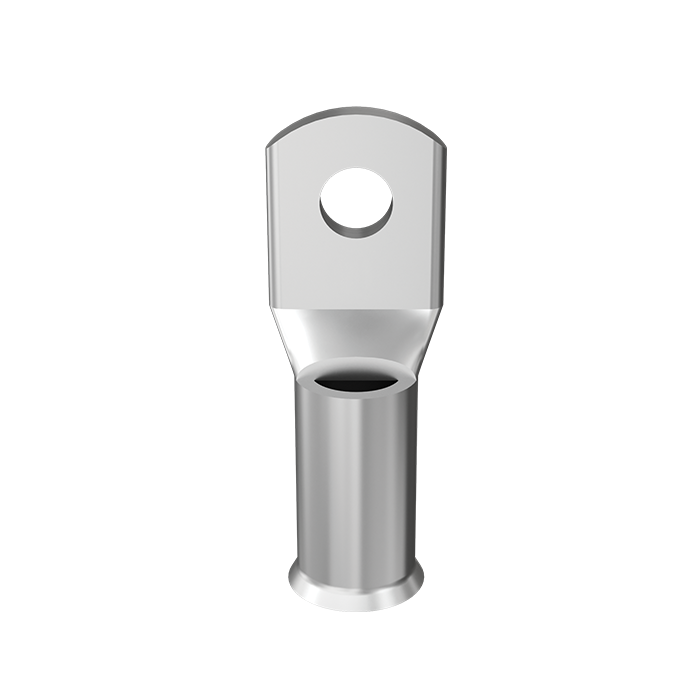

Copper Tube Crimping Lugs One Hole

Category:

Premium one hole copper lugs engineered for secure cable termination and efficient power transmission in electrical panels, switchgear, transformers, and power distribution systems

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    ZAUS1.54 1.5 4.2 1.8 8 7 9 18
    ZAUS1.55 1.5 5.3 1.8 8 7 9 18
    ZAUS1.56 1.5 6.4 1.8 10 7 11 20
    ZAUS2.54 2.5 4.2 2.4 8 8 9 19
    ZAUS2.55 2.5 5.3 2.4 10 8 11 21
    ZAUS2.56 2.5 6.4 2.4 10 8 11 21
    ZAUS2.58 2.5 8.4 2.4 11 7 15 24
    ZAUS45 4 5.3 3.1 10 9 11 22
    ZAUS46 4 6.4 3.1 10 9 11 22
    ZAUS48 4 8.4 3.1 12 9 14 26
    ZAUS410 4 10.5 3.1 13 9 19 32
    ZAUS64 6 4.2 3.8 10 9 11 23
    ZAUS65 6 5.3 3.8 10 9 11 23
    ZAUS66 6 6.4 3.8 12 9 15 27
    ZAUS68 6 8.4 3.8 12 9 15 27
    ZAUS610 6 10.5 3.8 16 10 19 32
    ZAUS105 10 5.3 4.7 12 10 13 27
    ZAUS106 10 6.4 4.7 12 10 13 27
    ZAUS108 10 8.4 4.7 14 10 15 29
    ZAUS1010 10 10.5 4.7 16 10 19 32
    ZAUS1012 10 13 4.7 18 10 23 37
    ZAUS166 16 6.4 5.5 11 19 14 37
    ZAUS168 16 8.4 5.5 14 19 16 39
    ZAUS1610 16 10.5 5.5 16 19 18 41
    ZAUS1612 16 13 5.5 18 19 23 46
    ZAUS256 25 6.4 7.1 14 21 16 41
    ZAUS258 25 8.4 7.1 14 21 16 41
    ZAUS2510 25 10.5 7.1 16 21 19 44
    ZAUS2512 25 13 7.1 18 21 23 48
    ZAUS356 35 6.4 8.2 16 21 19 45
    ZAUS358 35 8.4 8.2 16 21 19 45
    ZAUS3510 35 10.5 8.2 18 21 19 46
    ZAUS3512 35 13 8.2 20 21 24 50
    ZAUS506 50 6.4 9.5 18 22 20 48
    ZAUS508 50 8.4 9.5 18 22 20 48
    ZAUS5010 50 10.5 9.5 18 22 20 48
    ZAUS5012 50 13 9.5 21 22 24 52
    ZAUS70 70 BL 11.2 21 24 24 54
    ZAUS706 70 6.4 11.2 21 24 24 54
    ZAUS708 70 8.4 11.2 21 24 24 54
    ZAUS7010 70 10.5 11.2 21 24 24 54
    ZAUS7012 70 13 11.2 21 24 24 54
    ZAUS7014 70 15 11.2 21 24 24 54
    ZAUS7016 70 17 11.2 28 24 34 64
    ZAUS95 95 BL 13.5 25 27 26 60
    ZAUS958 95 8.4 13.5 25 27 26 60
    ZAUS9510 95 10.5 13.5 25 27 26 60
    ZAUS9512 95 13 13.5 25 27 26 60
    ZAUS9514 95 15 13.5 25 27 26 60
    ZAUS9516 95 17 13.5 28 27 30 64
    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    ZAUS120 120 BL 15.6 29 30 26 64
    ZAUS1208 120 8.4 15.6 29 30 26 64
    ZAUS12010 120 10.5 15.6 29 30 26 64
    ZAUS12012 120 13 15.6 29 30 26 64
    ZAUS12014 120 15 15.6 29 30 26 64
    ZAUS12016 120 17 15.6 29 30 32 70
    ZAUS150 150 BL 16.7 32 30 32 71
    ZAUS15010 150 10.5 16.7 32 30 32 71
    ZAUS15012 150 13 16.7 32 30 41 80
    ZAUS15016 150 17 16.7 32 30 41 80
    ZAUS185 185 BL 18.4 35 32 32 74
    ZAUS18510 185 10.5 18.4 35 32 32 74
    ZAUS18512 185 13 18.4 35 32 41 83
    ZAUS18516 185 17 18.4 35 32 41 83
    ZAUS240 240 BL 21.2 40 38 42 92
    ZAUS24010 240 10.5 21.2 40 38 42 92
    ZAUS24012 240 13 21.2 40 38 42 92
    ZAUS24016 240 17 21.2 40 38 42 92
    ZAUS300 300 BL 23.5 45 42 46 101
    ZAUS30012 300 13 23.5 45 42 46 101
    ZAUS30014 300 15 23.5 45 42 46 101
    ZAUS30016 300 17 23.5 45 42 46 101
    ZAUS400BL 400 BL 26.8 50 44 52 114
    ZAUS40012 400 13 26.8 50 44 52 114
    ZAUS40016 400 17 26.8 50 44 52 114
    ZAUS500BL 500 BL 30.0 56 50 56 124
    ZAUS50012 500 13 30.0 56 50 56 124
    ZAUS50016 500 17 30.0 56 50 56 124
    ZAUS630BL 630 BL 34.0 65 58 56 134
    ZAUS63012 630 13 34.0 65 58 56 134
    ZAUS63016 630 17 34.0 65 58 56 134
    ZAUS800BL 800 BL 39.3 74 125 125 275
    ZAUS1000BL 1000 BL 44.0 84.6 130 125 295
