Copper Tube Crimping Lugs One Hole Bell Mouth - Image 1
Copper Tube Crimping Lugs One Hole Bell Mouth - Image 2
Copper Tube Crimping Lugs One Hole Bell Mouth - Image 3
Copper Tube Crimping Lugs One Hole Bell Mouth
Copper Tube Crimping Lugs One Hole Bell Mouth - Image 2
Copper Tube Crimping Lugs One Hole Bell Mouth - Image 3

Copper Tube Crimping Lugs One Hole Bell Mouth

Category:

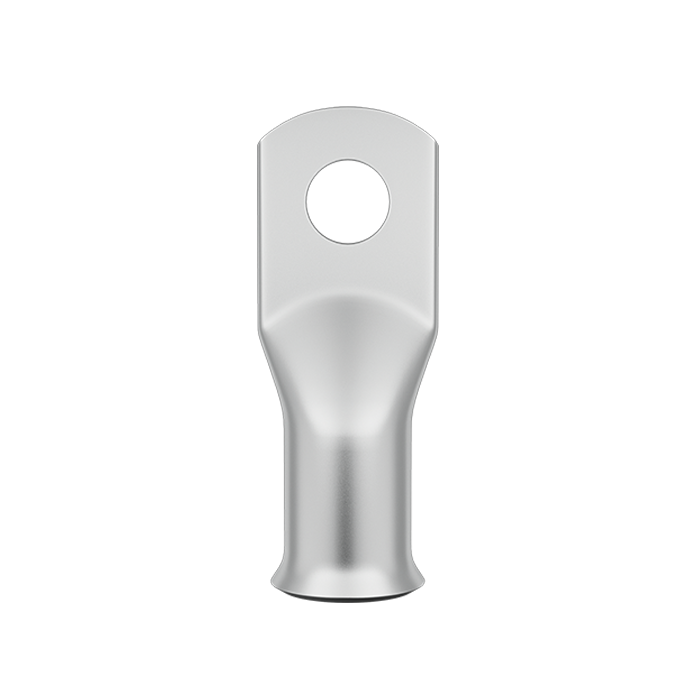

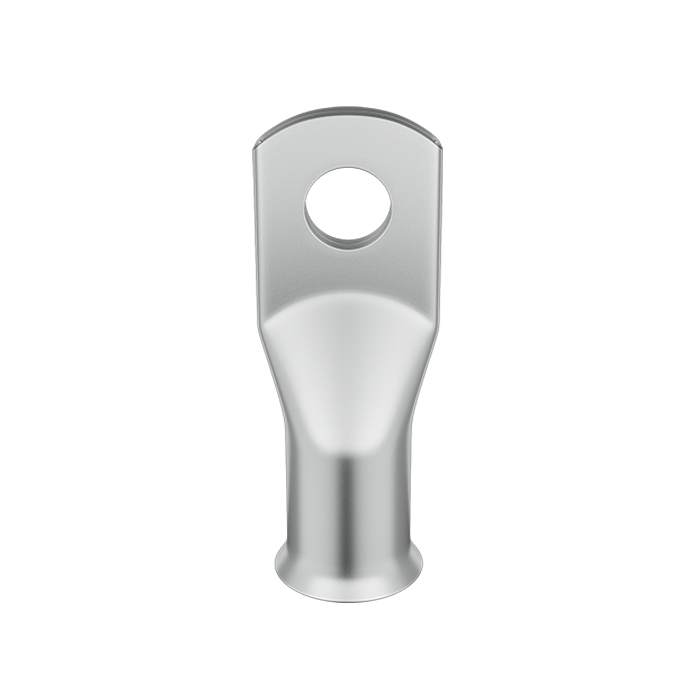

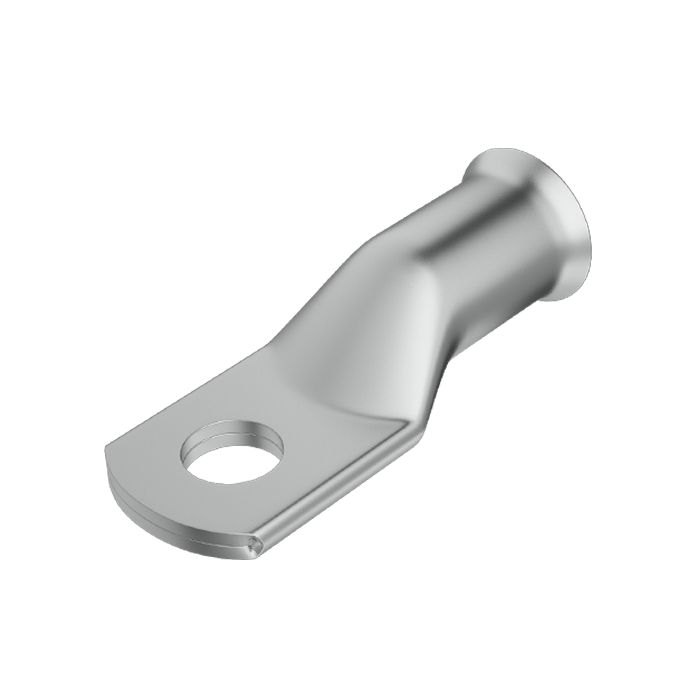

Bell mouth copper lugs feature an expanded entry design for easier cable insertion, secure crimping, and improved installation efficiency in electrical panels and switchgear

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE
    mm2    		 STUD
    HOLE    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    BCL810 8 AWG 10 0.200 0.190 0.465 0.470 0.686 1.313
    BCL814 8 AWG 1/4 0.260 0.190 0.465 0.470 0.686 1.313
    BCL8516 8 AWG 5/16 0.320 0.190 0.465 0.470 0.686 1.313
    BCL838 8 AWG 3/8 0.409 0.190 0.590 0.470 0.686 1.313
    BCL812 8 AWG 1/2 0.520 0.190 0.790 0.470 0.850 1.469
    BCL610 6 AWG 10 0.200 0.232 0.465 0.500 0.758 1.469
    BCL614 6 AWG 1/4 0.260 0.232 0.540 0.500 0.758 1.469
    BCL6516 6 AWG 5/16 0.320 0.232 0.540 0.500 0.758 1.469
    BCL638 6 AWG 3/8 0.409 0.232 0.540 0.500 0.758 1.469
    BCL612 6 AWG 1/2 0.515 0.232 0.670 0.500 0.831 1.542
    *BCL410 4 AWG 10 0.200 0.280 0.465 0.470 0.686 1.313
    BCL414 4 AWG 1/4 0.260 0.280 0.545 0.530 0.701 1.531
    BCL4516 4 AWG 5/16 0.320 0.280 0.545 0.530 0.701 1.531
    BCL438 4 AWG 3/8 0.409 0.280 0.545 0.530 0.701 1.531
    BCL412wx 4 AWG 1/2 0.515 0.280 0.765 0.530 0.850 1.688
    BCL214 2 AWG 1/4 0.260 0.336 0.650 0.600 0.765 1.690
    BCL2516 2 AWG 5/16 0.320 0.336 0.650 0.600 0.765 1.690
    BCL238 2 AWG 3/8 0.409 0.336 0.650 0.600 0.765 1.690
    BCL212 2 AWG 1/2 0.515 0.336 0.750 0.600 0.825 1.750
    BCL114 1 AWG 1/4 0.260 0.360 0.645 0.630 0.760 1.718
    BCL1516 1 AWG 5/16 0.320 0.360 0.645 0.630 0.760 1.718
    BCL138 1 AWG 3/8 0.410 0.360 0.645 0.630 0.760 1.718
    BCL112 1 AWG 1/2 0.515 0.360 0.750 0.630 0.887 1.845
    BCL1014 1/0 AWG 1/4 0.260 0.400 0.725 0.690 0.786 1.845
    BCL10516 1/0 AWG 5/16 0.320 0.400 0.725 0.690 0.786 1.845
    BCL1038 1/0 AWG 3/8 0.410 0.400 0.725 0.690 0.786 1.845
    BCL1012 1/0 AWG 1/2 0.515 0.400 0.725 0.690 0.831 1.890
    BCL2014 2/0 AWG 1/4 0.260 0.460 0.825 0.862 0.932 2.236
    BCL20516 2/0 AWG 5/16 0.320 0.460 0.825 0.862 0.932 2.236
    BCL2038 2/0 AWG 3/8 0.410 0.460 0.825 0.862 0.964 2.268
    BCL2012 2/0 AWG 1/2 0.515 0.460 0.825 0.862 0.964 2.268
    BCL3014 3/0 AWG 1/4 0.260 0.510 0.910 0.800 1.010 2.270
    BCL30516 3/0 AWG 5/16 0.320 0.510 0.910 0.800 1.010 2.270
    BCL3038 3/0 AWG 3/8 0.410 0.510 0.910 0.800 1.010 2.270
    BCL3012 3/0 AWG 1/2 0.515 0.510 0.910 0.800 1.010 2.270
    BCL4014 4/0 AWG 1/4 0.260 0.560 1.015 1.020 0.999 2.563
    BCL40516 4/0 AWG 5/16 0.320 0.560 1.015 1.020 0.999 2.563
    BCL4038 4/0 AWG 3/8 0.410 0.560 1.015 1.020 0.999 2.563
    BCL4012 4/0 AWG 1/2 0.515 0.560 1.015 1.020 0.999 2.563
    BCL250516 250 Kcmil 5/16 0.320 0.630 1.090 1.020 1.256 2.906
    BCL25038 250 Kcmil 3/8 0.410 0.630 1.090 1.020 1.256 2.906
    BCL25012 250 Kcmil 1/2 0.515 0.630 1.090 1.020 1.256 2.906
