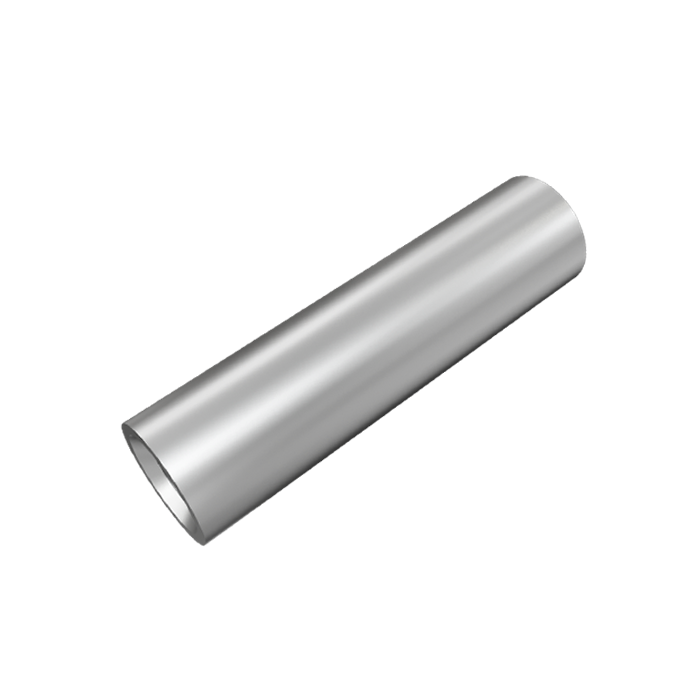

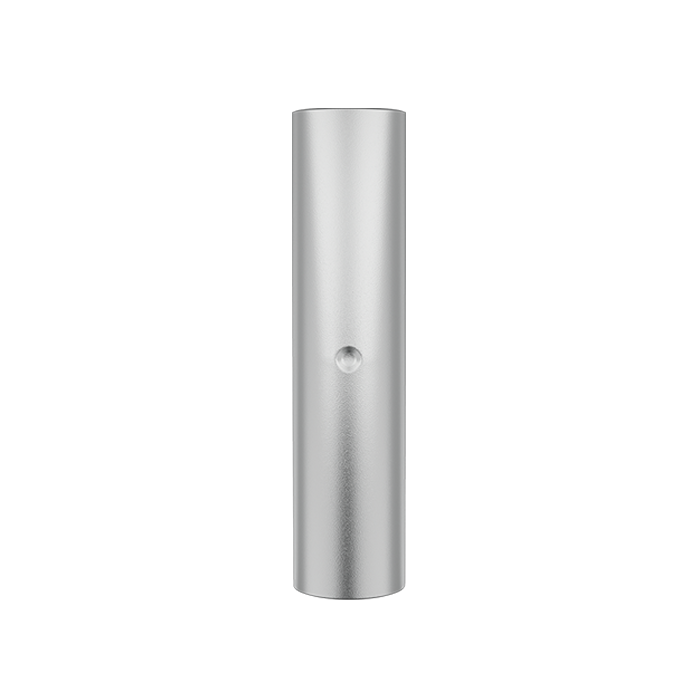

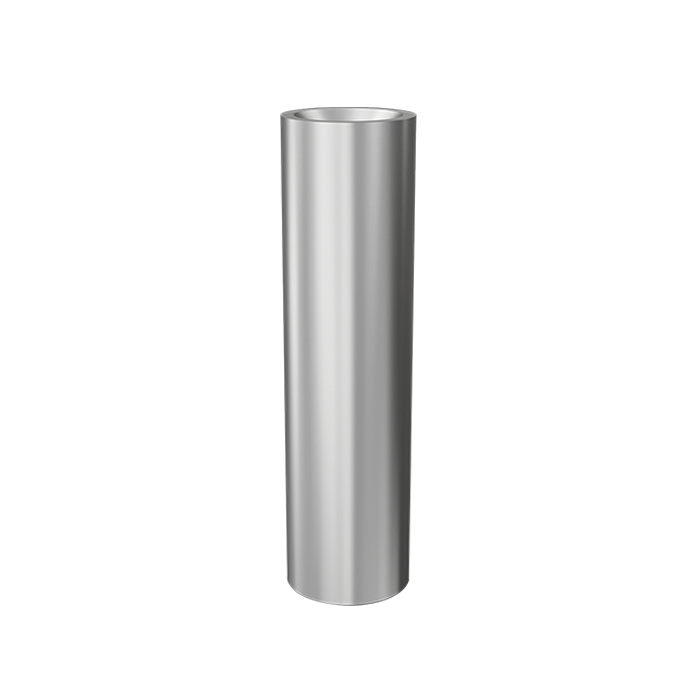

Copper Tube Crimping Through Connectors
Long barrel copper through connectors offering improved mechanical strength and reliable electrical performance in power distribution systems, control panels, and industrial applications
Become a DISTRIBUTORS
| Material | High Conductor Aluminium 99.9% Pure |
|---|---|
| Finish | Tin Electro Plated and Annealed |
| Type of Cable | Stranded & Flexible |
Technical Specifications
| CAT. NO | CABLE mm2 |
BARREL ID | TOTAL LENGTH |
|---|---|---|---|
| A | J | ||
| ZNCL1.5 | 1.5 | 1.8 | 25 |
| ZNCL2.5 | 2.5 | 2.4 | 25 |
| ZNCL4 | 4 | 3.1 | 25 |
| ZNCL6 | 6 | 3.8 | 25 |
| ZNCL10 | 10 | 4.4 | 30 |
| ZNCL16 | 16 | 5.4 | 35 |
| ZNCL25 | 25 | 7 | 40 |
| ZNCL35 | 35 | 8 | 45 |
| ZNCL50 | 50 | 9.2 | 50 |
| ZNCL70 | 70 | 11.6 | 55 |
| ZNCL95 | 95 | 12.8 | 60 |
| ZNCL120 | 120 | 14.8 | 65 |
| ZNCL150 | 150 | 16 | 70 |
| ZNCL185 | 185 | 18 | 80 |
| ZNCL240 | 240 | 22 | 90 |
| ZNCL300 | 300 | 24 | 100 |
| ZNCL400 | 400 | 28 | 110 |
| ZNCL500 | 500 | 30 | 140 |
| ZNCL630 | 630 | 35 | 160 |
