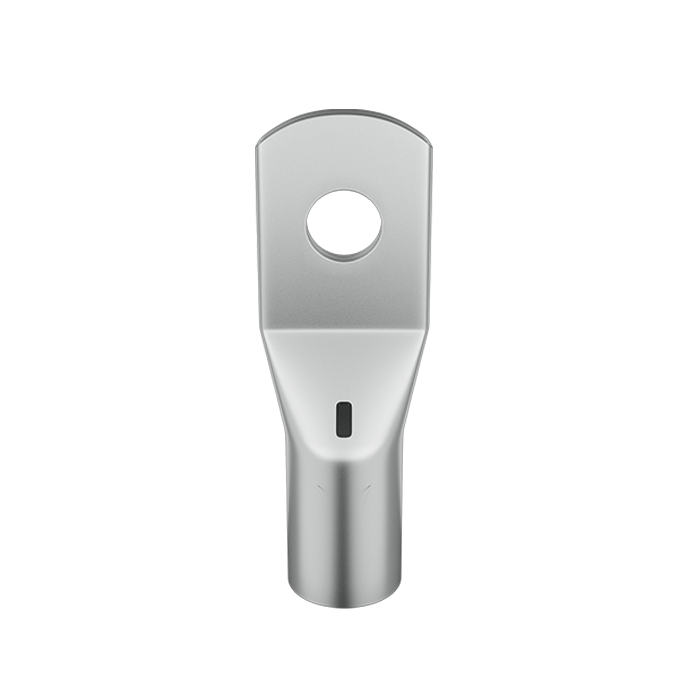

Copper Tube Crimping Lugs One Hole - Image 1

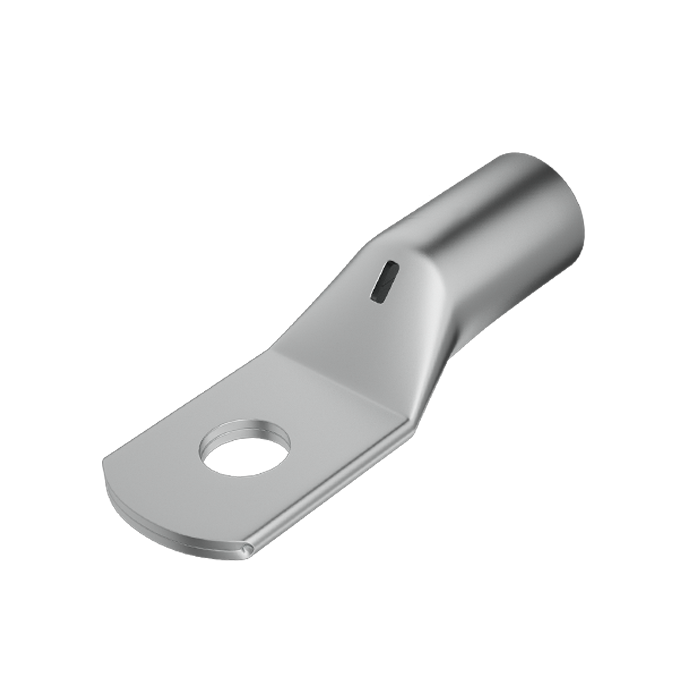

Copper Tube Crimping Lugs One Hole - Image 2

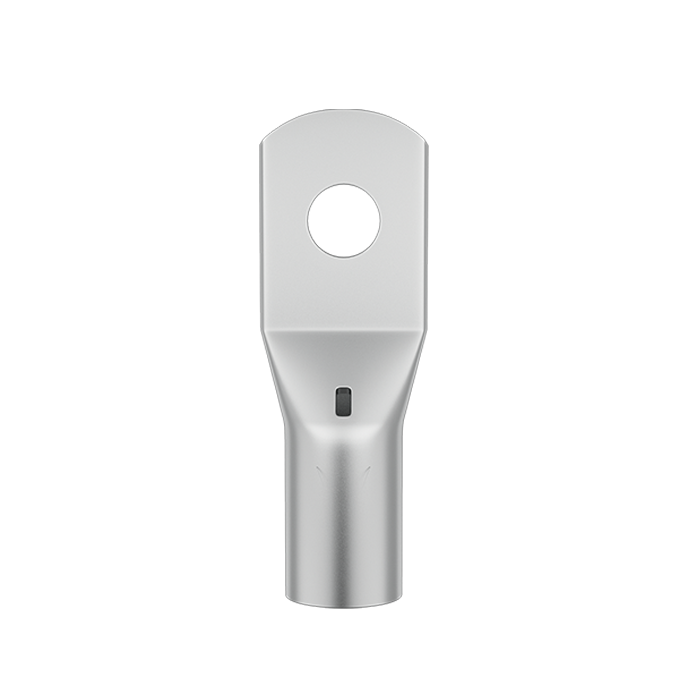

Copper Tube Crimping Lugs One Hole - Image 3
Copper Tube Crimping Lugs One Hole
Copper Tube Crimping Lugs One Hole - Image 2
Copper Tube Crimping Lugs One Hole - Image 3

Copper Tube Crimping Lugs One Hole

Category:

Long barrel copper lugs designed to provide enhanced crimping strength, superior conductivity, and secure cable termination in transformers, switchgear, and industrial installations

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    ZTNL2.55 2.5 5.3 2.4 9 8 11 22
    ZTNL2.56 2.5 6.4 2.4 9 8 11 22
    ZTNL45 4 5.3 3.1 10 8 11 22
    ZTNL46 4 6.4 3.1 10 8 11 22
    ZTNL65 6 5.3 3.8 11 10 13 26
    ZTNL66 6 6.4 3.8 11.0 10 13.5 26
    ZTNL68 6 8.5 3.8 12.0 10 18 31
    ZTNL610 6 10.5 3.8 15.0 10 20 33
    ZTNL612 6 13.0 3.8 16.0 10 20 33
    ZTNL105 10 5.3 4.4 11.0 11 14 28
    ZTNL106 10 6.5 4.4 11.0 11 14 28
    ZTNL108 10 8.5 4.4 12.0 12 18 33
    ZTNL1010 10 10.5 4.4 14.0 12 24 39
    ZTNL1012 10 13.0 4.4 16.0 12 24 39
    ZTNL165 16 5.3 5.4 11.0 12 14.5 30.5
    ZTNL166 16 6.5 5.4 11.0 12 14.5 30.5
    ZTNL168 16 8.5 5.4 13.0 12 18.5 35.5
    ZTNL1610 16 10.5 5.4 15.0 12 22 39
    ZTNL1612 16 13.0 5.4 18.0 12 26 43
    ZTNL255 25 5.3 7.0 13.0 13 14 32
    ZTNL256 25 6.5 7.0 13.0 13 14 32
    ZTNL258 25 8.5 7.0 13.0 13 20 38
    ZTNL2510 25 10.5 7.0 16.0 13 24 43
    ZTNL2512 25 13.0 7.0 17.0 13 24 43
    ZTNL2514 25 15.0 7.0 21.0 13 27 46
    ZTNL356 35 6.5 8.0 15.0 16 15 38
    ZTNL358 35 8.5 8.0 15.0 16 20 42
    ZTNL3510 35 10.5 8.0 16.0 16 24 47
    ZTNL3512 35 13.0 8.0 17.0 16 30 53
    ZTNL3514 35 15.0 8.0 21.0 16 30 53
    ZTNL506 50 6.5 9.2 16.0 19 20 46
    ZTNL508 50 8.5 9.2 16.0 19 20 46
    ZTNL5010 50 10.5 9.2 16.0 19 24 50
    ZTNL5012 50 13.0 9.2 17.0 19 26 52
    ZTNL5014 50 15.0 9.2 21.0 19 28 54
    ZTNL5016 50 17.0 9.5 22.5 19 28 54
    ZTNL706 70 6.5 11.6 20.0 21 20 49
    ZTNL708 70 8.5 11.6 20.0 21 20 49
    ZTNL7010 70 10.5 11.6 20.0 21 24 53
    ZTNL7012 70 13.0 11.6 20 21 26 55
    ZTNL7014 70 15.0 11.6 21 21 32 61
    ZTNL7016 70 17.0 11.6 23 21 34 63

    CAT. NO CABLE
    mm2    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    ZTNL956 95 6.5 12.8 23 24 24 57
    ZTNL958 95 8.5 12.8 23 24 24 57
    ZTNL95-0 95 10.5 12.8 23 24 24 57
    ZTNL9512 95 13.0 12.8 23 24 26 60
    ZTNL9514 95 15.0 12.8 23 24 33 67
    ZTNL9516 95 17.0 12.8 23 24 33 67
    ZTNL9520 95 21.0 12.8 28 24 34 68
    ZTNL1206 120 6.5 14.8 26 27 28 65
    ZTNL1208 120 8.5 14.8 26 27 28 65
    ZTNL12010 120 10.5 14.8 26 27 28 65
    ZTNL12012 120 13 14.8 26 27 28 65
    ZTNL12014 120 15 14.8 26 27 31 68
    ZTNL12016 120 17 14.8 26 27 31 68
    ZTNL12020 120 21 14.8 28 27 31 68
    ZTNL1506 150 6.5 16.0 28 30 28 70
    ZTNL1508 150 8.5 16.0 28 30 28 70
    ZTNL15010 150 10.5 16.0 28 30 28 70
    ZTNL15012 150 13.0 16.0 28 30 30 72
    ZTNL15014 150 15.0 16.0 28 30 30 72
    ZTNL15016 150 17.0 16.0 28 30 30 72
    ZTNL15020 150 21.0 16.0 31 30 30 72
    ZTNL1856 185 6.5 18.0 32 32 37 83
    ZTNL1858 185 8.5 18.0 32 32 37 83
    ZTNL18510 185 10.5 18.0 32 32 37 83
    ZTNL18512 185 13.0 18.0 32 32 37 83
    ZTNL18514 185 15.0 18.0 32 32 37 83
    ZTNL18516 185 17.0 18.0 32 32 37 83
    ZTNL18520 185 21.0 18.0 34 32 37 83
    ZTNL2406 240 6.5 22.0 38 38 42 94
    ZTNL2408 240 8.5 22.0 38 38 42 94
    ZTNL24010 240 10.5 22.0 38 38 42 94
    ZTNL24012 240 13.0 22.0 38 38 42 94
    ZTNL24014 240 15.0 22.0 38 38 42 94
    ZTNL240-16 240 17.0 22.0 38 38 42 94
    ZTNL24020 240 21.0 22.0 38 38 42 94
    ZTNL3006 300 6.5 24.0 42 47 49 111
    ZTNL3008 300 8.5 24.0 42 47 49 111
    ZTNL30010 300 10.5 24.0 42 47 49 111
    ZTNL30012 300 13.0 24.0 42 47 49 111
    ZTNL30014 300 15.0 24.0 42 47 49 111
    ZTNL30016 300 17.0 24.0 42 47 49 111
    ZTNL30020 300 21.0 24.0 42 47 49 111
    ZTNL40010 400 10.5 28.0 48 46 49 114
    ZTNL40012 400 13.0 28.0 48 46 49 114
    ZTNL40014 400 15.0 28.0 48 46 49 114
    ZTNL40016 400 17.0 28.0 48 46 49 114
    ZTNL40020 400 21.0 28.0 48 46 49 114
    ZTNL50012 500 13.0 30.0 52 72 49 144
    ZTNL50014 500 15.0 30.0 52 72 49 144
    ZTNL50016 500 17.0 30.0 52 72 49 144
    ZTNL50020 500 21.0 30.0 52 72 49 144
    ZTNL63010 630 10.5 35.0 60 72 49 144
    ZTNL63012 630 13.0 35.0 60 72 49 144
    ZTNL63014 630 15.0 35.0 60 72 49 144
    ZTNL63016 630 17.0 35.0 60 72 49 144
    ZTNL63020 630 21.0 35.0 60 72 49 144
