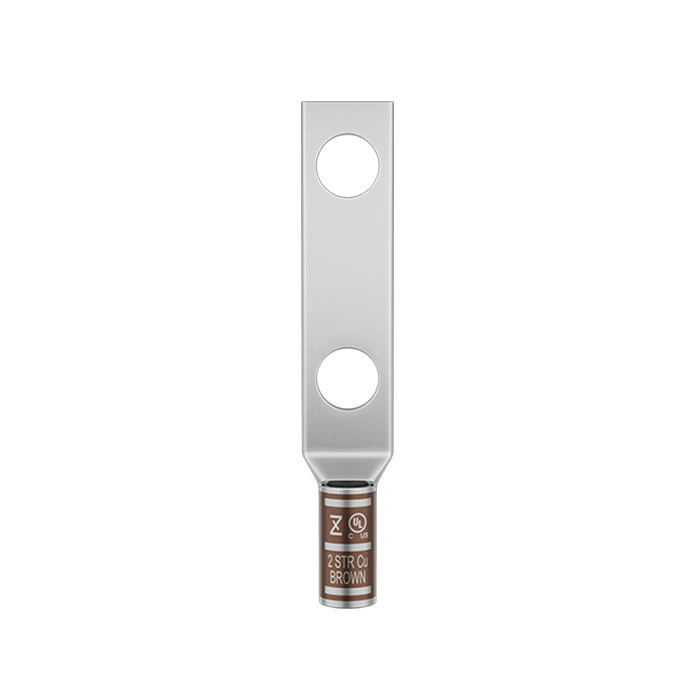

Copper Tube Crimping Lugs Two Hole Long Barrel - Image 1

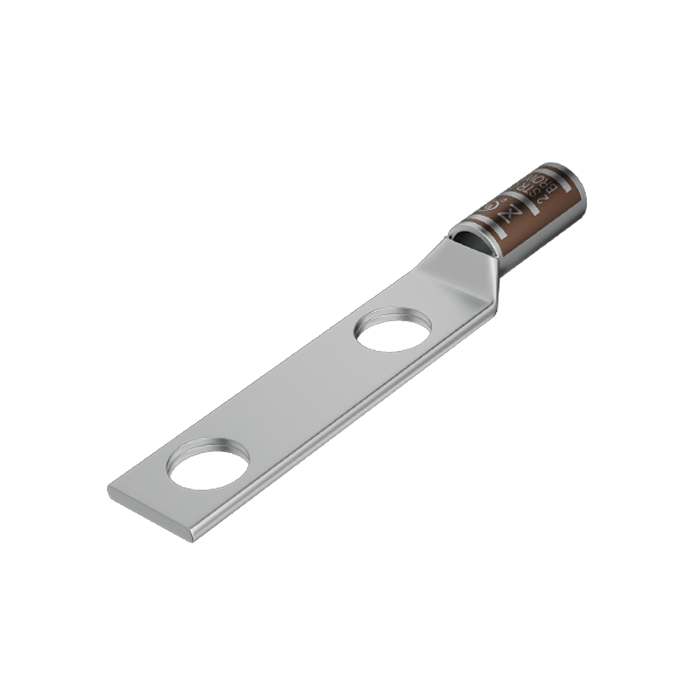

Copper Tube Crimping Lugs Two Hole Long Barrel - Image 2

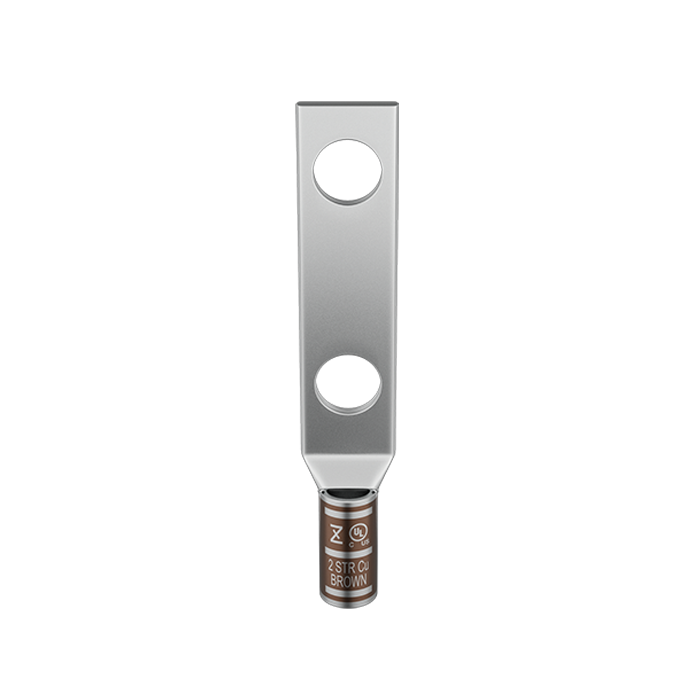

Copper Tube Crimping Lugs Two Hole Long Barrel - Image 3
Copper Tube Crimping Lugs Two Hole Long Barrel
Copper Tube Crimping Lugs Two Hole Long Barrel - Image 2
Copper Tube Crimping Lugs Two Hole Long Barrel - Image 3

Copper Tube Crimping Lugs Two Hole Long Barrel

Category:

Two hole long barrel copper lugs ensure strong cable retention, improved stability, and superior conductivity in transformers, switchgear, and power distribution systems

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE SIZE
    AWG    		 STUD
    HOLE    		 COLOR
    CODE    		 STUD SIZE
    E    		 BARREL ID
    A    		 PALM WIDTH
    D    		 BARREL LENGTH
    B    		 PAD LENGTH
    P    		 TOTAL LENGTH
    J
    LT 810 8 AWG #10 RED 0.220 0.190 0.440 0.810 1.225 2.160
    LT 810A 8 AWG #10 0.220 0.190 0.440 0.810 1.350 2.285
    LT 814 8 AWG 1/4 0.280 0.190 0.440 0.810 1.350 2.285
    LT 814A 8 AWG 1/4 0.280 0.190 0.440 0.810 1.475 2.410
    LT 814B 8 AWG 1/4 0.280 0.190 0.440 0.810 1.725 2.660
    LT 838 8 AWG 3/8 0.410 0.190 0.600 0.810 1.830 2.765
    LT 610 6 AWG #10 BLUE 0.220 0.232 0.450 0.900 1.225 2.250
    LT 610A 6 AWG #10 0.220 0.232 0.450 0.900 1.350 2.375
    LT 614 6 AWG 1/4 0.280 0.232 0.450 0.900 1.225 2.250
    LT 614A 6 AWG 1/4 0.280 0.232 0.450 0.900 1.350 2.375
    LT 614B 6 AWG 1/4 0.280 0.232 0.450 0.900 1.475 2.500
    LT 614C 6 AWG 1/4 0.280 0.232 0.450 0.900 1.725 2.750
    LT 614D 6 AWG 1/4 0.280 0.232 0.450 0.900 1.975 3.000
    LT 614E 6 AWG 1/4 0.280 0.232 0.450 0.900 2.475 3.500
    LT 6516A 6 AWG 5/16 0.345 0.232 0.550 0.900 1.750 2.775
    LT 638 6 AWG 3/8 0.410 0.232 0.600 0.900 2.580 3.605
    LT 638A 6 AWG 3/8 0.410 0.232 0.600 0.900 1.830 2.855
    LT 612 6 AWG 1/2 0.510 0.232 0.700 0.900 2.880 3.905
    LT 410 4 AWG #10 GREY 0.220 0.280 0.540 0.900 1.225 2.275
    LT 410A 4 AWG #10 0.220 0.280 0.540 0.900 1.350 2.400
    LT 414 4 AWG 1/4 0.280 0.280 0.540 0.900 1.350 2.400
    LT 414A 4 AWG 1/4 0.280 0.280 0.540 0.900 1.475 2.525
    LT 414B 4 AWG 1/4 0.280 0.280 0.540 0.900 1.725 2.775
    LT 4516 4 AWG 5/16 0.345 0.280 0.540 0.900 1.750 2.800
    LT 438 4 AWG 3/8 0.410 0.280 0.600 0.900 1.580 2.630
    LT 438A 4 AWG 3/8 0.410 0.280 0.600 0.900 1.830 2.880
    LT 412 4 AWG 1/2 0.510 0.280 0.700 0.900 2.880 3.930
    LT 314 3 AWG 1/4 WHITE 0.280 0.310 0.570 0.900 1.350 2.400
    LT 314A 3 AWG 1/4 0.280 0.310 0.570 0.900 1.475 2.525
    LT 338 3 AWG 3/8 0.410 0.310 0.570 0.900 1.580 2.630
    LT 338A 3 AWG 3/8 0.410 0.310 0.570 0.900 1.830 2.880
    LT 210 2 AWG #10 BROWN 0.220 0.336 0.625 0.965 1.225 2.370
    LT 210A 2 AWG #10 0.220 0.336 0.625 0.965 1.350 2.495
    LT 214 2 AWG 1/4 0.280 0.336 0.625 0.965 1.275 2.420
    LT 214A 2 AWG 1/4 0.280 0.336 0.625 0.965 1.400 2.545
    LT 214B 2 AWG 1/4 0.280 0.336 0.625 0.965 1.650 2.795
    LT 2516 2 AWG 5/16 0.345 0.336 0.625 0.965 1.500 2.645
    LT 238 2 AWG 3/8 0.410 0.336 0.625 0.965 1.580 2.725
    LT 238A 2 AWG 3/8 0.410 0.336 0.625 0.965 1.830 2.975
    LT 238B 2 AWG 3/8 0.410 0.336 0.625 0.965 2.580 3.725
    LT 212 2 AWG 1/2 0.510 0.336 0.750 0.965 2.880 4.025
    LT 114 1 AWG 1/4 GREEN 0.280 0.360 0.660 1.125 1.350 2.655
    LT 114A 1 AWG 1/4 0.280 0.360 0.660 1.125 1.475 2.780
    LT 1516 1 AWG 5/16 0.345 0.360 0.660 1.125 1.500 2.805
    LT 138 1 AWG 3/8 0.410 0.360 0.660 1.125 1.580 2.885
    LT 138A 1 AWG 3/8 0.410 0.360 0.660 1.125 1.830 3.135
    LT 112 1 AWG 1/2 0.510 0.360 0.660 1.125 2.880 4.185

    CAT. NO CABLE SIZE
    AWG    		 STUD
    HOLE    		 COLOR
    CODE    		 STUD SIZE
    E    		 BARREL ID
    A    		 PALM WIDTH
    D    		 BARREL LENGTH
    B    		 PAD LENGTH
    P    		 TOTAL LENGTH
    J
    LT 1014 1/0 AWG 1/4 PINK 0.280 0.400 0.725 1.175 1.350 2.775
    LT 1014A 1/0 AWG 1/4 0.280 0.400 0.725 1.175 1.475 2.900
    LT 1014B 1/0 AWG 1/4 0.280 0.400 0.725 1.175 1.725 3.150
    LT 10516 1/0 AWG 5/16 0.345 0.400 0.725 1.175 1.750 3.175
    LT 1038 1/0 AWG 3/8 0.410 0.400 0.725 1.175 1.580 3.005
    LT 1038A 1/0 AWG 3/8 0.410 0.400 0.725 1.175 1.830 3.255
    LT 1038B 1/0 AWG 3/8 0.410 0.400 0.725 1.175 2.580 4.005
    LT 1012 1/0 AWG 1/2 0.510 0.400 0.725 1.175 2.880 4.305
    LT 1012A 1/0 AWG 1/2 0.510 0.460 0.725 1.175 2.130 3.555
    LT 2014 2/0 AWG 1/4 BLACK 0.280 0.460 0.820 1.200 1.350 2.800
    LT 2014A 2/0 AWG 1/4 0.280 0.460 0.820 1.200 1.475 2.925
    LT 20516 2/0 AWG 5/16 0.345 0.460 0.820 1.200 1.750 3.200
    LT 2038 2/0 AWG 3/8 0.410 0.460 0.820 1.200 1.580 3.030
    LT 2038A 2/0 AWG 3/8 0.410 0.460 0.820 1.200 1.830 3.280
    LT 2012 2/0 AWG 1/2 0.510 0.460 0.820 1.200 2.130 3.580
    LT 2012A 2/0 AWG 1/2 0.510 0.510 0.820 1.200 2.880 4.330
    LT 3014 3/0 AWG 1/4 ORANGE 0.280 0.510 0.905 1.200 1.350 2.900
    LT 3014A 3/0 AWG 1/4 0.280 0.510 0.905 1.200 1.475 3.025
    LT 30516 3/0 AWG 5/16 0.345 0.510 0.905 1.200 1.750 3.300
    LT 3038 3/0 AWG 3/8 0.410 0.510 0.905 1.200 1.580 3.130
    LT 3038A 3/0 AWG 3/8 0.410 0.510 0.905 1.200 1.830 3.380
    LT 3012 3/0 AWG 1/2 0.510 0.510 0.905 1.200 2.130 3.680
    LT 3012A 3/0 AWG 1/2 0.510 0.560 0.905 1.200 2.880 4.430
    LT4014 4/0 AWG 1/4 PURPLE 0.280 0.560 1.000 1.465 1.350 3.165
    LT4014A 4/0 AWG 1/4 0.280 0.560 1.000 1.465 1.475 3.290
    LT40516 4/0 AWG 5/16 0.345 0.560 1.000 1.465 1.750 3.565
    LT4038 4/0 AWG 3/8 0.410 0.560 1.000 1.465 1.580 3.395
    LT4038A 4/0 AWG 3/8 0.410 0.560 1.000 1.465 1.830 3.645
    LT4012 4/0 AWG 1/2 0.510 0.560 1.000 1.465 2.130 3.945
    LT4012A 4/0 AWG 1/2 0.510 0.630 1.000 1.465 2.880 4.695
    LT25014 250 Kcmil 1/4 YELLOW 0.280 0.630 1.100 1.575 1.475 3.400
    LT25038 250 Kcmil 3/8 0.410 0.630 1.100 1.575 1.830 3.755
    LT25012 250 Kcmil 1/2 0.510 0.630 1.100 1.575 2.130 4.055
    LT25012A 250 Kcmil 1/2 0.510 0.675 1.100 1.575 2.880 4.805
    LT30012 300 Kcmil 1/2 WHITE 0.510 0.720 1.190 2.200 2.850 5.450
    LT35012 350 Kcmil 1/2 RED 0.510 0.860 1.280 2.200 2.850 5.450
    LT50012 500 Kcmil 1/2 BROWN 0.510 0.945 1.540 2.200 2.850 5.550
    LT60012 600 Kcmil 1/2 GREEN 0.510 1.056 1.720 2.500 2.850 6.050
    LT75012 750 Kcmil 1/2 BLACK 0.510 0.400 1.900 2.950 3.100 6.800
