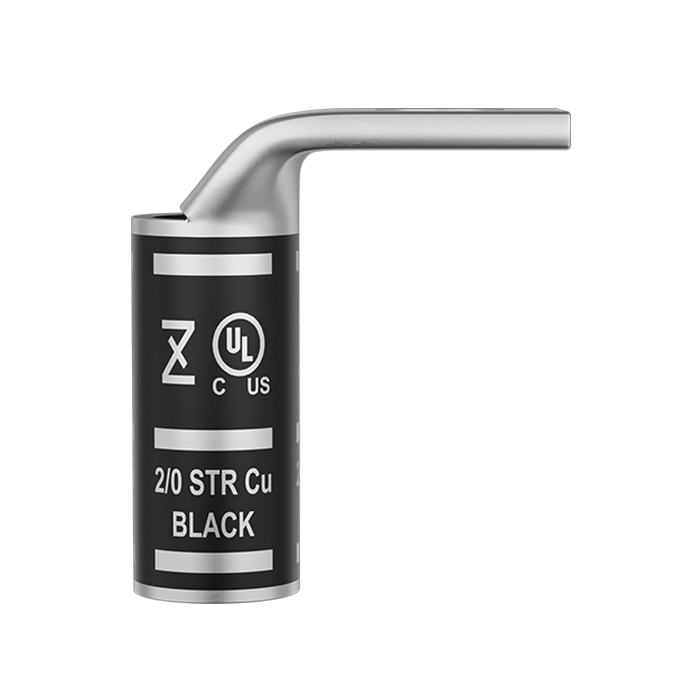

Copper Tube Crimping Lugs One Hole Long Barrel 90 Degree - Image 1
Copper Tube Crimping Lugs One Hole Long Barrel 90 Degree - Image 2
Copper Tube Crimping Lugs One Hole Long Barrel 90 Degree - Image 3
Copper Tube Crimping Lugs One Hole Long Barrel 90 Degree
Copper Tube Crimping Lugs One Hole Long Barrel 90 Degree - Image 2
Copper Tube Crimping Lugs One Hole Long Barrel 90 Degree - Image 3

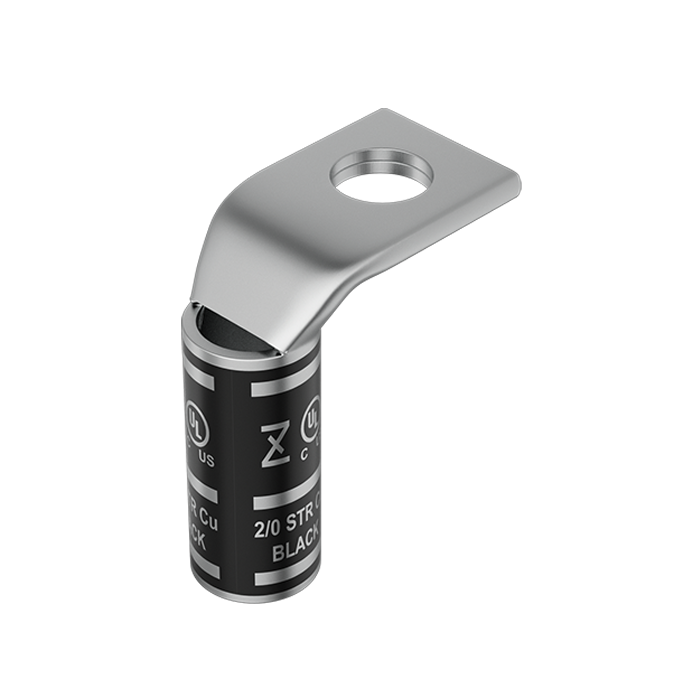

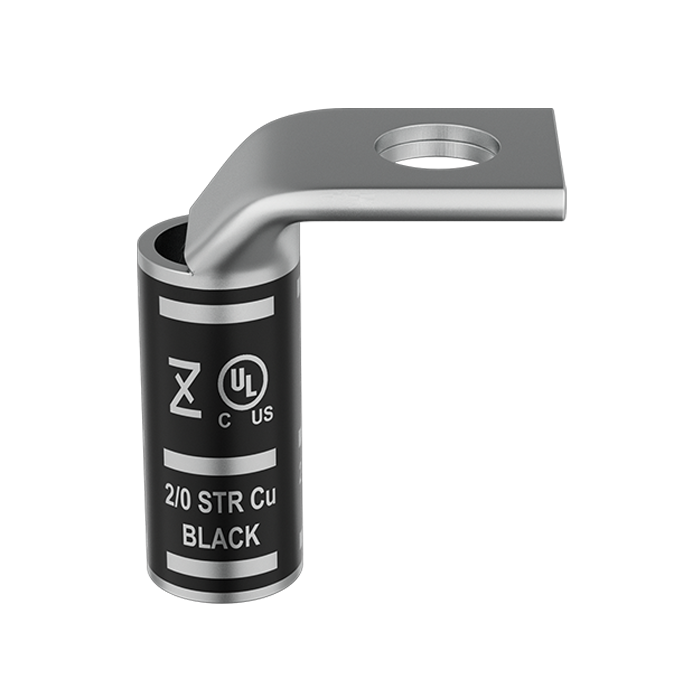

Copper Tube Crimping Lugs One Hole Long Barrel 90 Degree

Category:

90 degree long barrel copper lugs designed for optimized cable routing and secure termination in confined spaces within control panels and electrical equipment

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE SIZE
    AWG    		 STUD
    HOLE    		 COLOR
    CODE    		 STUD SIZE BARREL ID PALM WIDTH TONGUE LENGTH BARREL LENGTH TOTAL LENGTH
    E A D P B J
    LB1010F 10 AWG 10 YELLOW 0.220 0.130 0.320 0.600 0.570 1.295
    LB1014SF 10 AWG 1/4 0.280 0.130 0.440 0.725 0.570 1.420
    LB810F 8 AWG 10 RED 0.220 0.190 0.440 0.600 0.810 1.535
    LB814F 8 AWG 1/4 0.280 0.190 0.440 0.725 0.810 1.660
    LB8516F 8 AWG 5/16 0.345 0.190 0.540 0.750 0.810 1.685
    LB838F 8 AWG 3/8 0.410 0.190 0.600 0.830 0.810 1.765
    LB610F 6 AWG 10 BLUE 0.220 0.232 0.450 0.600 0.900 1.625
    LB614F 6 AWG 1/4 0.280 0.232 0.450 0.725 0.900 1.750
    LB6516F 6 AWG 5/16 0.345 0.232 0.550 0.750 0.900 1.775
    LB638F 6 AWG 3/8 0.410 0.232 0.600 0.830 0.900 1.855
    LB612F 6 AWG 1/2 0.515 0.232 0.700 1.130 0.900 2.155
    LB410F 4 AWG 10 GREY 0.220 0.280 0.540 0.600 0.900 1.650
    LB414F 4 AWG 1/4 0.280 0.280 0.540 0.725 0.900 1.775
    LB4516F 4 AWG 5/16 0.345 0.280 0.540 0.750 0.900 1.800
    LB438F 4 AWG 3/8 0.410 0.280 0.600 0.830 0.900 1.880
    LB412F 4 AWG 1/2 0.515 0.280 0.700 1.130 0.900 2.180
    LB314F 3 AWG 1/4 WHITE 0.280 0.310 0.570 0.725 0.900 1.775
    LB3516F 3 AWG 5/16 0.345 0.310 0.570 0.750 0.900 1.800
    LB338F 3 AWG 3/8 0.410 0.310 0.600 0.830 0.900 1.880
    LB312F 3 AWG 1/2 0.515 0.310 0.700 1.130 0.900 2.180
    LB210F 2 AWG 10 BROWN 0.220 0.336 0.625 0.600 0.965 1.745
    LB214F 2 AWG 1/4 0.280 0.336 0.625 0.725 0.965 1.870
    LB2516F 2 AWG 5/16 0.345 0.336 0.625 0.750 0.965 1.895
    LB238F 2 AWG 3/8 0.410 0.336 0.625 0.830 0.965 1.975
    LB212F 2 AWG 1/2 0.515 0.336 0.700 1.130 0.965 2.275
    LB114F 1 AWG 1/4 GREEN 0.280 0.360 0.660 0.725 1.125 2.030
    LB1516F 1 AWG 5/16 0.345 0.360 0.660 0.750 1.125 2.055
    LB138F 1 AWG 3/8 0.410 0.360 0.660 0.830 1.125 2.135
    LB112F 1 AWG 1/2 0.515 0.360 0.700 1.130 1.125 2.435
    LB1014F 1/0 AWG 1/4 PINK 0.280 0.400 0.725 0.725 1.175 2.150
    LB10516F 1/0 AWG 5/16 0.345 0.400 0.725 0.750 1.175 2.175
    LB1038F 1/0 AWG 3/8 0.410 0.400 0.725 0.830 1.175 2.255
    LB1012F 1/0 AWG 1/2 0.515 0.400 0.725 1.130 1.175 2.555
    LB2014F 2/0 AWG 1/4 BLACK 0.280 0.460 0.820 0.725 1.200 2.175
    LB20516F 2/0 AWG 5/16 0.345 0.460 0.820 0.750 1.200 2.200
    LB2038F 2/0 AWG 3/8 0.410 0.460 0.820 0.830 1.200 2.280
    LB2012F 2/0 AWG 1/2 0.515 0.460 0.820 1.130 1.200 2.580
    LB2058F 2/0 AWG 5/8 0.660 0.460 0.900 1.250 1.200 2.700

    CAT. NO CABLE SIZE
    AWG    		 STUD
    HOLE    		 COLOR
    CODE    		 STUD SIZE BARREL ID PALM WIDTH TONGUE LENGTH BARREL LENGTH TOTAL LENGTH
    E A D P B J
    LB3014F 3/0 AWG 1/4 ORANGE 0.280 0.510 0.905 0.725 1.200 2.275
    LB30516F 3/0 AWG 5/16 0.345 0.510 0.905 0.750 1.200 2.300
    LB3038F 3/0 AWG 3/8 0.410 0.510 0.905 0.830 1.200 2.380
    LB3012F 3/0 AWG 1/2 0.515 0.510 0.905 1.130 1.200 2.680
    LB4014F 4/0 AWG 1/4 PURPLE 0.280 0.560 1.000 0.725 1.465 2.540
    LB40516F 4/0 AWG 5/16 0.345 0.560 1.000 0.750 1.465 2.565
    LB4038F 4/0 AWG 3/8 0.410 0.560 1.000 0.830 1.465 2.645
    LB4012F 4/0 AWG 1/2 0.515 0.560 1.000 1.130 1.465 2.945
    LB25014F 250 Kcmil 1/4 YELLOW 0.280 0.630 1.100 0.725 1.575 2.650
    LB250516F 250 Kcmil 5/16 0.345 0.630 1.100 0.750 1.575 2.675
    LB25038F 250 Kcmil 3/8 0.410 0.630 1.100 0.830 1.575 2.755
    LB25012F 250 Kcmil 1/2 0.515 0.630 1.100 1.130 1.575 3.055
    LB25058F 250 Kcmil 5/8 0.660 0.630 1.100 1.250 1.575 3.175
    LB25078F 250 Kcmil 7/8 0.910 0.630 1.200 1.450 1.575 3.375
    LB30012F 300 Kcmil 1/2 WHITE 0.510 0.675 1.190 1.130 1.900 3.430
    LB30038F 300 Kcmil 3/8 0.410 0.675 1.190 1.000 1.900 3.300
    LB35038F 350 Kcmil 3/8 RED 0.410 0.720 1.280 1.250 2.200 3.850
    LB35012F 350 Kcmil 1/2 0.510 0.720 1.280 1.250 2.200 3.850
    LB40012F 400 Kcmil 1/2 BLUE 0.510 0.780 1.390 1.250 2.000 3.750
    LB40058F 400 Kcmil 5/8 0.660 0.780 1.390 1.250 2.000 3.750
    LB50012F 500 Kcmil 1/2 BROWN 0.510 0.860 1.540 1.300 2.250 4.100
    LB50058F 500 Kcmil 5/8 0.660 0.860 1.540 1.300 2.250 4.100
    LB60012F 600 Kcmil 1/2 GREEN 0.510 0.945 1.720 1.450 2.350 4.430
    LB75012F 750 Kcmil 1/2 BLACK 0.510 1.056 1.900 1.600 2.500 4.780
    LB75058F 750 Kcmil 5/8 0.660 1.056 1.900 1.600 2.500 4.780
