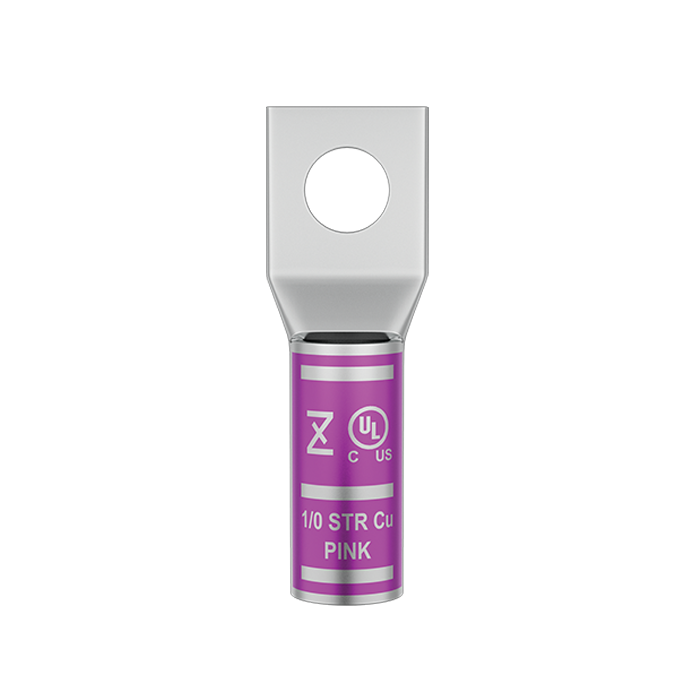

Copper Tube Crimping Lugs One Hole Long Barrel - Image 1
Copper Tube Crimping Lugs One Hole Long Barrel - Image 2
Copper Tube Crimping Lugs One Hole Long Barrel - Image 3
Copper Tube Crimping Lugs One Hole Long Barrel
Copper Tube Crimping Lugs One Hole Long Barrel - Image 2
Copper Tube Crimping Lugs One Hole Long Barrel - Image 3

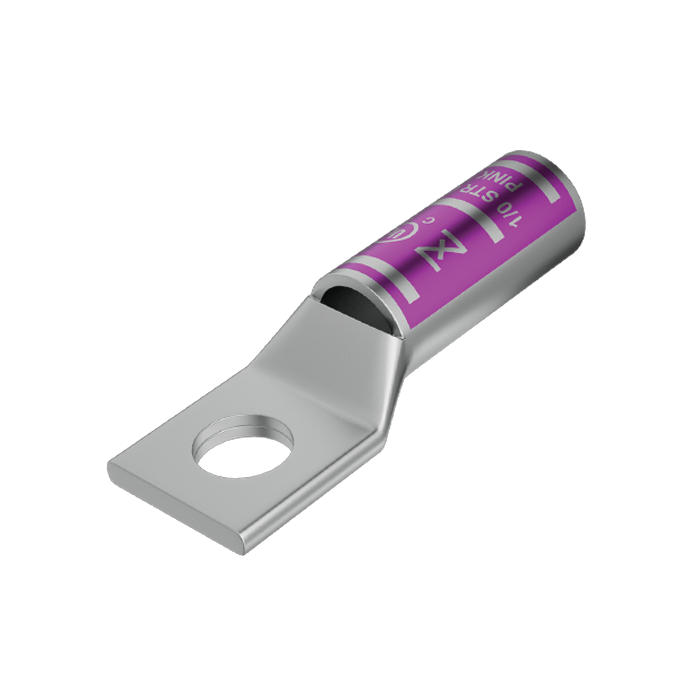

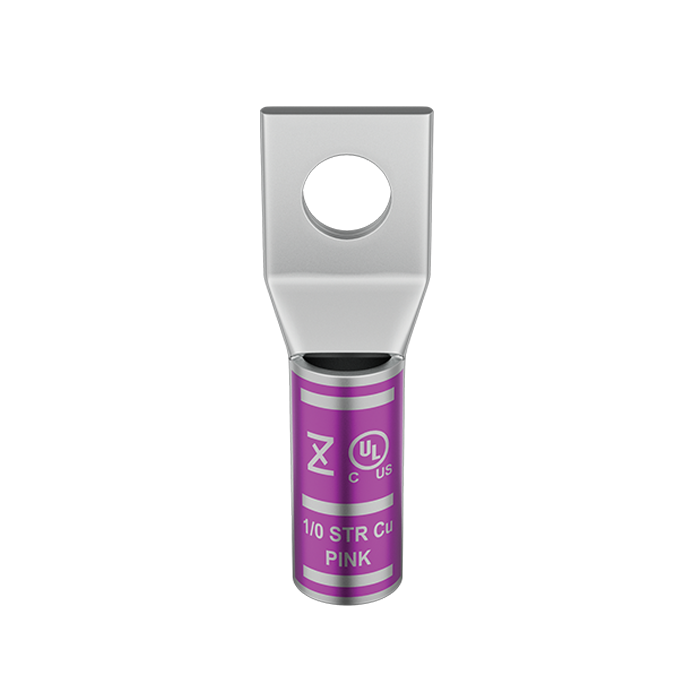

Copper Tube Crimping Lugs One Hole Long Barrel

Category:

Long barrel copper lugs offer increased crimping area, superior conductivity, and enhanced mechanical strength for power distribution systems, switchgear, and industrial installations

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE
    SIZE
    AWG    		 STUD
    HOLE    		 COLOR
    CODE    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    LB1010 10 AWG 10 YELLOW 0.220 0.130 0.320 0.570 0.600 1.295
    LB1014S 10 AWG 1/4 0.280 0.130 0.440 0.570 0.725 1.420
    LB810 8 AWG 10 0.220 0.190 0.440 0.810 0.600 1.535
    LB814 8 AWG 1/4 RED 0.280 0.190 0.440 0.810 0.725 1.660
    LB8516 8 AWG 5/16 0.345 0.190 0.540 0.810 0.750 1.685
    LB838 8 AWG 3/8 0.410 0.190 0.600 0.810 0.830 1.765
    LB610 6 AWG 10 0.220 0.232 0.450 0.900 0.600 1.625
    LB614 6 AWG 1/4 0.280 0.232 0.450 0.900 0.725 1.750
    LB6516 6 AWG 5/16 BLUE 0.345 0.232 0.550 0.900 0.750 1.775
    LB638 6 AWG 3/8 0.410 0.232 0.600 0.900 0.830 1.855
    LB612 6 AWG 1/2 0.515 0.232 0.700 0.900 1.130 2.155
    LB410 4 AWG 10 0.220 0.280 0.540 0.900 0.600 1.650
    LB414 4 AWG 1/4 0.280 0.280 0.540 0.900 0.725 1.775
    LB4516 4 AWG 5/16 GREY 0.345 0.280 0.540 0.900 0.750 1.800
    LB438 4 AWG 3/8 0.410 0.280 0.600 0.900 0.830 1.880
    LB412 4 AWG 1/2 0.515 0.280 0.700 0.900 1.130 2.180
    LB314 3 AWG 1/4 0.280 0.310 0.570 0.900 0.725 1.775
    LB3516 3 AWG 5/16 0.345 0.310 0.570 0.900 0.750 1.800
    LB338 3 AWG 3/8 WHITE 0.410 0.310 0.600 0.900 0.830 1.880
    LB312 3 AWG 1/2 0.515 0.310 0.700 0.900 1.130 2.180
    LB210 2 AWG 10 0.220 0.336 0.625 0.965 0.600 1.745
    LB214 2 AWG 1/4 0.280 0.336 0.625 0.965 0.725 1.870
    LB2516 2 AWG 5/16 BROWN 0.345 0.336 0.625 0.965 0.750 1.895
    LB238 2 AWG 3/8 0.410 0.336 0.625 0.965 0.830 1.975
    LB212 2 AWG 1/2 0.515 0.336 0.700 0.965 1.130 2.275
    LB114 1 AWG 1/4 0.280 0.360 0.660 1.125 0.725 2.030
    LB1516 1 AWG 5/16 0.345 0.360 0.660 1.125 0.750 2.055
    LB138 1 AWG 3/8 GREEN 0.410 0.360 0.660 1.125 0.830 2.135
    LB112 1 AWG 1/2 0.515 0.360 0.700 1.125 1.130 2.435
    LB1014 1/0 AWG 1/4 0.280 0.400 0.725 1.175 0.725 2.150
    LB10516 1/0 AWG 5/16 0.345 0.400 0.725 1.175 0.750 2.175
    LB1038 1/0 AWG 3/8 PINK 0.410 0.400 0.725 1.175 0.830 2.255
    LB1012 1/0 AWG 1/2 0.515 0.400 0.725 1.175 1.130 2.555
    LB2014 2/0 AWG 1/4 0.280 0.460 0.820 1.200 0.725 2.175
    LB20516 2/0 AWG 5/16 0.345 0.460 0.820 1.200 0.750 2.200
    LB2038 2/0 AWG 3/8 BLACK 0.410 0.460 0.820 1.200 0.830 2.280
    LB2012 2/0 AWG 1/2 0.515 0.460 0.820 1.200 1.130 2.580
    LB2058 2/0 AWG 5/8 0.660 0.460 0.900 1.200 1.250 2.700
    LB3014 3/0 AWG 1/4 0.280 0.510 0.905 1.200 0.725 2.275
    LB30516 3/0 AWG 5/16 0.345 0.510 0.905 1.200 0.750 2.300
    LB3038 3/0 AWG 3/8 ORANGE 0.410 0.510 0.905 1.200 0.830 2.380
    LB3012 3/0 AWG 1/2 0.515 0.510 0.905 1.200 1.130 2.680
    LB4014 4/0 AWG 1/4 0.280 0.560 1.000 1.465 0.725 2.540
    LB40516 4/0 AWG 5/16 0.345 0.560 1.000 1.465 0.750 2.565

    CAT. NO CABLE SIZE
    AWG    		 STUD
    HOLE    		 COLOR
    CODE    		 STUD SIZE BARREL ID PALM WIDTH BARREL LENGTH PAD LENGTH TOTAL LENGTH
    E A D B P J
    LB4038 4/0 AWG 3/8 PURPLE 0.410 0.560 1.000 1.465 0.830 2.645
    LB4012 4/0 AWG 1/2 0.515 0.560 1.000 1.465 1.130 2.945
    LB25014 250 Kcmil 1/4 0.280 0.630 1.100 1.575 0.725 2.650
    LB250516 250 Kcmil 5/16 0.345 0.630 1.100 1.575 0.750 2.675
    LB25038 250 Kcmil 3/8 YELLOW 0.410 0.630 1.100 1.575 0.830 2.755
    LB25012 250 Kcmil 1/2 0.515 0.630 1.100 1.575 1.130 3.055
    LB25058 250 Kcmil 5/8 0.660 0.630 1.100 1.575 1.250 3.175
    LB25078 250 Kcmil 7/8 0.910 0.630 1.200 1.575 1.450 3.375
    LB30012 300 Kcmil 1/2 WHITE 0.510 0.675 1.190 1.900 1.130 3.430
    LB30038 300 Kcmil 3/8 0.410 0.675 1.190 1.900 1.000 3.300
    LB35038 350 Kcmil 3/8 RED 0.410 0.720 1.280 2.200 1.250 3.850
    LB35012 350 Kcmil 1/2 0.510 0.720 1.280 2.200 1.250 3.850
    LB40012 400 Kcmil 1/2 BLUE 0.510 0.780 1.390 2.000 1.250 3.750
    LB40058 400 Kcmil 5/8 0.660 0.780 1.390 2.000 1.250 3.750
    LB50012 500 Kcmil 1/2 BROWN 0.510 0.860 1.540 2.250 1.300 4.100
    LB50058 500 Kcmil 5/8 0.660 0.860 1.540 2.250 1.300 4.100
    LB60012 600 Kcmil 1/2 GREEN 0.510 0.945 1.720 2.350 1.450 4.430
    LB75012 750 Kcmil 1/2 BLACK 0.510 1.056 1.900 2.500 1.600 4.780
    LB75058 750 Kcmil 5/8 0.660 1.056 1.900 2.500 1.600 4.780
