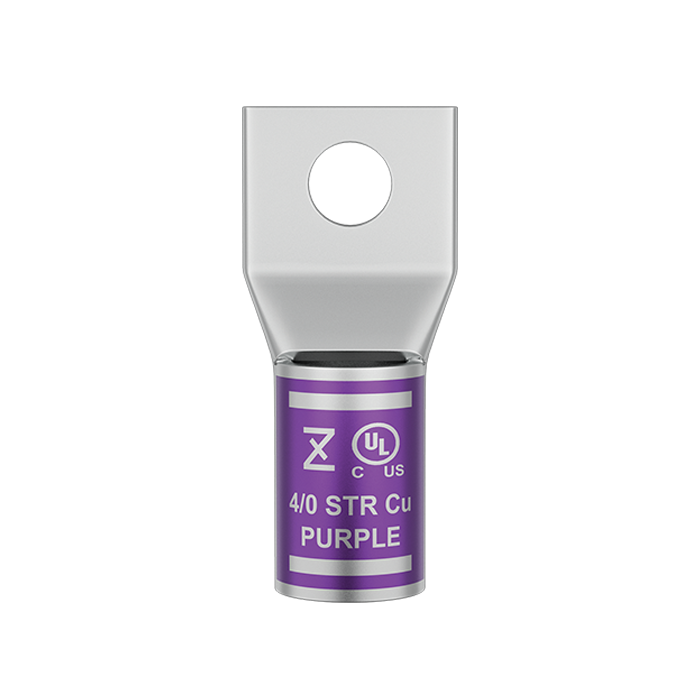

Copper Tube Crimping Lugs One Hole Short Barrel - Image 1
Copper Tube Crimping Lugs One Hole Short Barrel - Image 2

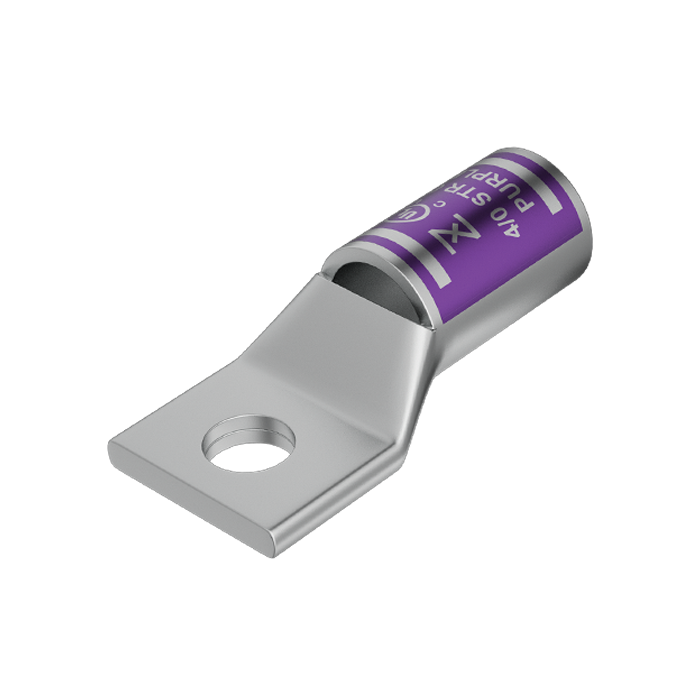

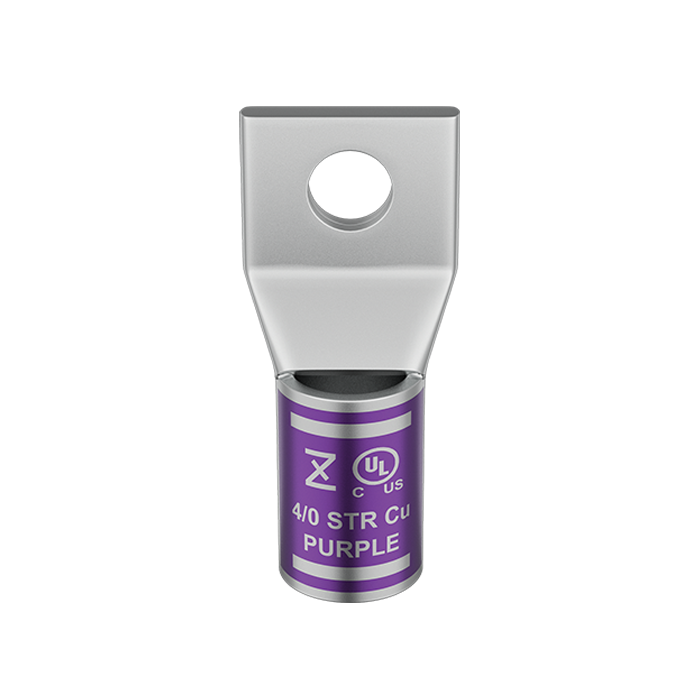

Copper Tube Crimping Lugs One Hole Short Barrel - Image 3
Copper Tube Crimping Lugs One Hole Short Barrel
Copper Tube Crimping Lugs One Hole Short Barrel - Image 2
Copper Tube Crimping Lugs One Hole Short Barrel - Image 3

Copper Tube Crimping Lugs One Hole Short Barrel

Category:

Compact short barrel copper lugs designed for secure cable termination and easy installation in electrical panels, control panels, and power distribution systems

PRODUCT INQUIRY

Become a DISTRIBUTORS

    Material High Conductor Aluminium 99.9% Pure
    Finish Tin Electro Plated and Annealed
    Type of Cable Stranded & Flexible

    Technical Specifications

    CAT. NO CABLE SIZE AWG STUD HOLE COLOR CODE STUD SIZE
    E    		 BARREL ID
    A    		 PLAM WIDTH
    D    		 BARREL LENGTH
    B    		 PAD LENGTH
    P    		 TOTAL LENGTH
    J
    SB1010S 10 AWG 10 YELLOW 0.220 0.130 0.320 0.400 0.600 1.125
    SB1014S 10 AWG 1/4 0.280 0.130 0.440 0.400 0.725 1.250
    SB10516S 10 AWG 5/16 0.345 0.130 0.550 0.400 0.750 1.275
    SB810 8 AWG 10 RED 0.220 0.190 0.440 0.500 0.600 1.225
    SB814 8 AWG 1/4 0.280 0.190 0.440 0.500 0.725 1.350
    SB8516 8 AWG 5/16 0.345 0.190 0.540 0.500 0.750 1.375
    SB838 8 AWG 3/8 0.410 0.190 0.600 0.500 0.830 1.455
    SB812 8 AWG 1/2 0.515 0.190 0.700 0.500 1.130 1.755
    SB610 6 AWG 10 BLUE 0.220 0.232 0.450 0.540 0.600 1.265
    SB614 6 AWG 1/4 0.280 0.232 0.450 0.540 0.725 1.390
    SB6516 6 AWG 5/16 0.345 0.232 0.550 0.540 0.750 1.415
    SB638 6 AWG 3/8 0.410 0.232 0.600 0.540 0.830 1.495
    SB612 6 AWG 1/2 0.515 0.232 0.700 0.540 1.130 1.795
    SB410 4 AWG 10 GREY 0.220 0.280 0.540 0.690 0.600 1.440
    SB414 4 AWG 1/4 0.280 0.280 0.540 0.690 0.725 1.565
    SB4516 4 AWG 5/16 0.345 0.280 0.540 0.690 0.750 1.590
    SB438 4 AWG 3/8 0.410 0.280 0.600 0.690 0.830 1.670
    SB412 4 AWG 1/2 0.515 0.280 0.700 0.690 1.130 1.970
    SB314 3 AWG 1/4 WHITE 0.280 0.310 0.570 0.800 0.725 1.675
    SB3516 3 AWG 5/16 0.345 0.310 0.570 0.800 0.750 1.700
    SB338 3 AWG 3/8 0.410 0.310 0.600 0.800 0.830 1.780
    SB312 3 AWG 1/2 0.515 0.310 0.700 0.800 1.130 2.080
    SB210 2 AWG 10 BROWN 0.220 0.336 0.625 0.800 0.600 1.580
    SB214 2 AWG 1/4 0.280 0.336 0.625 0.800 0.725 1.705
    SB2516 2 AWG 5/16 0.345 0.336 0.625 0.800 0.750 1.730
    SB238 2 AWG 3/8 0.410 0.336 0.625 0.800 0.830 1.810
    SB212 2 AWG 1/2 0.515 0.336 0.700 0.800 1.130 2.110
    SB114 1 AWG 1/4 GREEN 0.280 0.360 0.660 0.800 0.725 1.705
    SB1516 1 AWG 5/16 0.345 0.360 0.660 0.800 0.750 1.730
    SB138 1 AWG 3/8 0.410 0.360 0.660 0.800 0.830 1.810
    SB112 1 AWG 1/2 PINK 0.515 0.360 0.700 0.800 1.130 2.110
    SB1014 1/0 AWG 1/4 0.280 0.400 0.725 0.800 0.725 1.775
    SB10516 1/0 AWG 5/16 0.345 0.400 0.725 0.800 0.750 1.800
    SB1038 1/0 AWG 3/8 0.410 0.400 0.725 0.800 0.830 1.880
    SB1012 1/0 AWG 1/2 0.515 0.400 0.725 0.800 1.130 2.180
    SB2014 2/0 AWG 1/4 BLACK 0.280 0.460 0.820 0.840 0.725 1.815
    SB20516 2/0 AWG 5/16 0.345 0.460 0.820 0.840 0.750 1.840
    SB2038 2/0 AWG 3/8 0.410 0.460 0.820 0.840 0.830 1.920
    SB2012 2/0 AWG 1/2 0.515 0.460 0.820 0.840 1.130 2.220
    SB2058 2/0 AWG 5/8 0.660 0.460 0.900 0.840 1.250 2.340
    SB3014 3/0 AWG 1/4 ORANGE 0.280 0.510 0.905 0.960 0.725 2.035
    SB30516 3/0 AWG 5/16 0.345 0.510 0.905 0.960 0.750 2.060
    SB3038 3/0 AWG 3/8 0.410 0.510 0.905 0.960 0.830 2.140
    SB3012 3/0 AWG 1/2 0.515 0.510 0.905 0.960 1.130 2.440
    SB4014 4/0 AWG 1/4 PURPLE 0.280 0.560 1.000 1.000 0.725 2.075
    SB40516 4/0 AWG 5/16 0.345 0.560 1.000 1.000 0.750 2.100
    SB4038 4/0 AWG 3/8 0.410 0.560 1.000 1.000 0.830 2.180
    SB4012 4/0 AWG 1/2 0.515 0.560 1.000 1.000 1.130 2.480
    SB25014 250 Kcmil 1/4 YELLOW 0.280 0.630 1.100 1.100 0.725 2.175
    SB250516 250 Kcmil 5/16 0.345 0.630 1.100 1.100 0.750 2.200
    SB25038 250 Kcmil 3/8 0.410 0.630 1.100 1.100 0.830 2.280
    SB25012 250 Kcmil 1/2 0.515 0.630 1.100 1.100 1.130 2.580

    CAT. NO CABLE SIZE AWG STUD HOLE COLOR CODE STUD SIZE
    E    		 BARREL ID
    A    		 PLAM WIDTH
    D    		 BARREL LENGTH
    B    		 PAD LENGTH
    P    		 TOTAL LENGTH
    J
    SB25012 250 Kcmil 1/2 YELLOW 0.515 0.630 1.100 1.100 1.130 2.580
    SB25058 250 Kcmil 5/8 0.660 0.630 1.100 1.100 1.250 2.700
    SB25078 250 Kcmil 7/8 0.910 0.630 1.200 1.100 1.450 2.900
    SB300516 300 Kcmil 5/16 WHITE 0.345 0.675 1.190 1.100 1.000 2.500
    SB30038 300 Kcmil 3/8 0.410 0.675 1.190 1.100 1.000 2.500
    SB30058 300 Kcmil 5/8 0.660 0.675 1.190 1.100 1.250 2.750
    SB30012 300 Kcmil 1/2 0.510 0.675 1.190 1.100 1.130 2.630
    SB35038 350 Kcmil 3/8 RED 0.410 0.720 1.280 1.260 1.250 2.910
    SB35012 350 Kcmil 1/2 0.510 0.720 1.280 1.260 1.250 2.910
    SB40012 400 Kcmil 1/2 BLUE 0.510 0.780 1.390 1.260 1.250 3.010
    SB40038 400 Kcmil 3/8 0.410 0.780 1.390 1.260 1.250 3.010
    SB50038 500 Kcmil 3/8 BROWN 0.410 0.860 1.540 1.450 1.300 3.300
    SB50012 500 Kcmil 1/2 0.510 0.860 1.540 1.450 1.300 3.300
    SB50058 500 Kcmil 5/8 0.660 0.860 1.540 1.450 1.300 3.300
    SB60012 600 Kcmil 1/2 GREEN 0.510 0.945 1.720 1.550 1.450 3.630
    SB60058 600 Kcmil 5/8 0.660 0.945 1.720 1.550 1.450 3.630
    SB75012 750 Kcmil 1/2 BLACK 0.510 1.056 1.900 1.750 1.600 4.030
    SB75038 750 Kcmil 3/8 0.410 1.056 1.900 1.750 1.600 4.030
    SB75058 750 Kcmil 5/8 0.660 1.056 1.900 1.750 1.600 4.030
