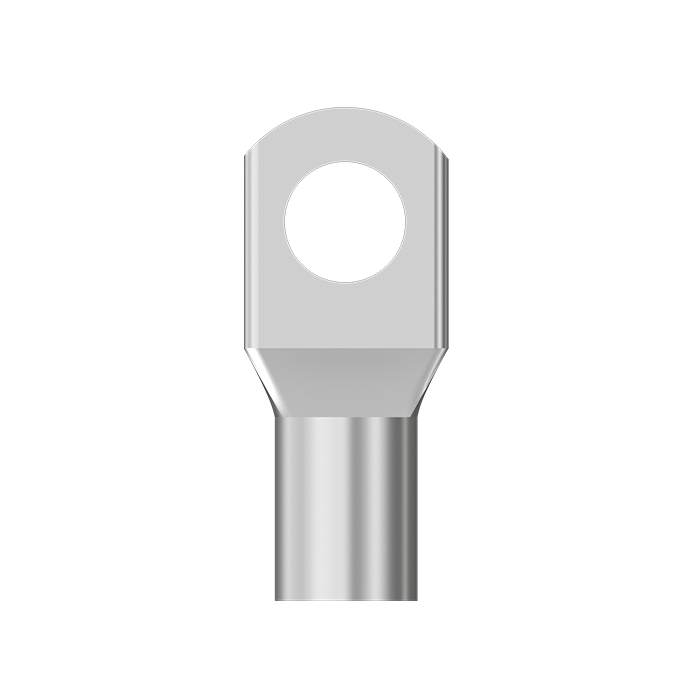

Copper Tube Crimping Lugs One Hole - Image 1

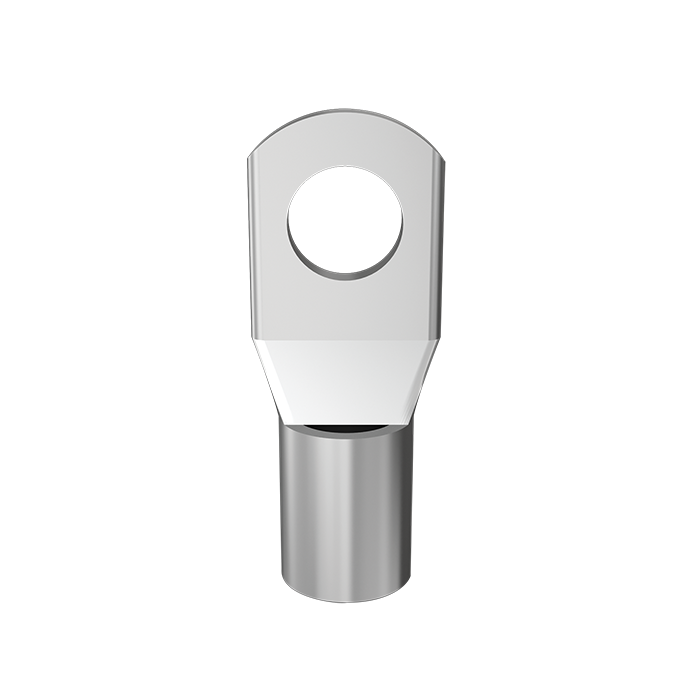

Copper Tube Crimping Lugs One Hole - Image 2

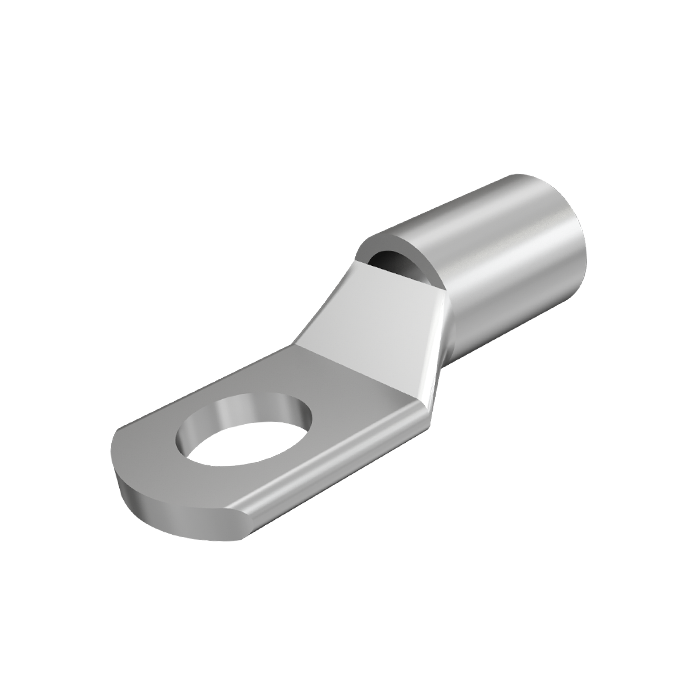

Copper Tube Crimping Lugs One Hole

Category: Copper Crimping Tube Lugs & Connectors

Precision manufactured copper lugs for secure cable termination and dependable electrical performance in electrical panels, switchgear, control panels, and industrial installations

Material	High Conductor Aluminium 99.9% Pure
Finish	Tin Electro Plated and Annealed
Type of Cable	Stranded & Flexible

Technical Specifications

CAT. NO	CABLE mm2	STUD SIZE	BARREL ID	PALM WIDTH	BARREL LENGTH	PAD LENGTH	TOTAL LENGTH
CAT. NO	CABLE mm2	E	A	D	B	P	J
ZTSA1.53	1.5	3.2	1.8	8	5	9	16
ZTSA1.54	1.5	4.2	1.8	8	5	9	16
ZTSA1.55	1.5	5.2	1.8	8	5	9	16
ZTSA1.56	1.5	6.5	1.8	8	5	9	16
ZTSA2.53	2.5	3.2	2.4	8	7	11	20
ZTSA2.54	2.5	4.2	2.4	8	7	11	20
ZTSA2.55	2.5	5.2	2.4	10	7	11	20
ZTSA2.56	2.5	6.5	2.4	10	7	11	20
ZTSA2.58	2.5	8.2	2.4	12	8	15	25
ZTSA43	4	3.2	3.1	10	7	11	20
ZTSA44	4	4.2	3.1	10	7	11	20
ZTSA45	4	5.2	3.1	10	7	11	20
ZTSA46	4	6.5	3.1	10	7	11	20
ZTSA48	4	8.2	3.1	13	8	17	27
ZTSA410	4	10.5	3.1	14	11	19	33
ZTSA64	6	4.2	3.4	10	9	11	23
ZTSA65	6	5.2	3.4	10	9	11	23
ZTSA66	6	6.5	3.4	12	9	15	27
ZTSA68	6	8.4	3.4	12	9	15	27
ZTSA610	6	10.5	3.4	15	11	20	34
ZTSA105	10	5.2	4.5	12	9	13	25
ZTSA106	10	6.5	4.5	12	9	13	25
ZTSA108	10	8.4	4.5	12	9	15	27
ZTSA1010	10	10.5	4.5	15	11	19	33
ZTSA1012	10	13	4.5	19	12	20	36
ZTSA165	16	5.2	5.5	12	12	14	30
ZTSA166	16	6.5	5.5	12	12	14	30
ZTSA168	16	8.4	5.5	12	12	14	30
ZTSA1610	16	10.5	5.5	15	12	20	36
ZTSA1612	16	13	5.5	18	12	25	41
ZTSA256	25	6.5	6.9	13	12	14	30
ZTSA258	25	8.4	6.9	16	12	14	30
ZTSA2510	25	10.5	6.9	18	12	21	37
ZTSA2512	25	13	6.9	18	15	21	40
ZTSA356	35	6.5	8.2	15	12	18	35
ZTSA358	35	8.4	8.2	15	12	18	35
ZTSA3510	35	10.5	8.2	18	12	21	38
ZTSA3512	35	13	8.2	18	12	21	38
ZTSA506	50	6.2	10	18	16	21	43
ZTSA508	50	8.4	10	18	16	21	43
ZTSA5010	50	10.5	10	20	16	21	43
ZTSA5012	50	13	10	20	16	21	43
ZTSA5014	50	15	10	26	16	21	43
ZTSA5016	50	17	10	26	20	33	59

CAT. NO	CABLE mm2	STUD SIZE	BARREL ID	PALM WIDTH	BARREL LENGTH	PAD LENGTH	TOTAL LENGTH
CAT. NO	CABLE mm2	E	A	D	B	P	J
ZTSA706	70	6.2	11.7	21	18	25	50
ZTSA708	70	8.4	11.7	21	18	25	50
ZTSA7010	70	10.5	11.7	21	18	25	50
ZTSA7012	70	13	11.7	21	18	25	50
ZTSA7016	70	17	11.7	28	18	32	57
ZTSA958	95	8.5	13.5	25	20	26	55
ZTSA9510	95	10.5	13.5	25	20	26	55
ZTSA9512	95	13	13.5	25	20	26	55
ZTSA9516	95	17	13.5	28	23	32	64
ZTSA9520	95	21	13.5	30	23	36	68
ZTSA1208	120	8.5	15.5	28	22	28	60
ZTSA12010	120	10.5	15.5	28	22	28	60
ZTSA12012	120	13	15.5	28	22	28	60
ZTSA12016	120	17	15.5	28	22	32	64
ZTSA12020	120	21	15.5	32	22	36	68
ZTSA1508	150	8.5	17	30	26	32	69
ZTSA15010	150	10.5	17	30	26	32	69
ZTSA15012	150	13	17	30	26	32	69
ZTSA15016	150	17	17	30	26	32	69
ZTSA15020	150	21	17	32	26	36	73
ZTSA18510	185	10.5	18.5	34	32	34	78
ZTSA18512	185	13	18.5	34	32	34	78
ZTSA18516	185	17	18.5	34	32	34	78
ZTSA18520	185	21	18.5	36	29	40	81
ZTSA24010	240	10.5	21.5	38	38	40	92
ZTSA24012	240	13	21.5	38	38	40	92
ZTSA24016	240	17	21.5	38	38	40	92
ZTSA24020	240	21	21.5	40	33	42	89
ZTSA30010	300	10.5	24.5	43	42	44	101
ZTSA30012	300	13	24.5	43	42	44	101
ZTSA30016	300	17	24.5	43	42	44	101
ZTSA30020	300	21	24.5	45	35	45	95
ZTSA400	400	–	28.5	50	44	52	114
ZTSA500	500	–	31.5	56	48	56	124
ZTSA630	630	–	35	65	56	66	144
